T
echnical Data
80 - 1
Section E
Hydraulics
9803/6410
Section E
80 - 1
Issue 1

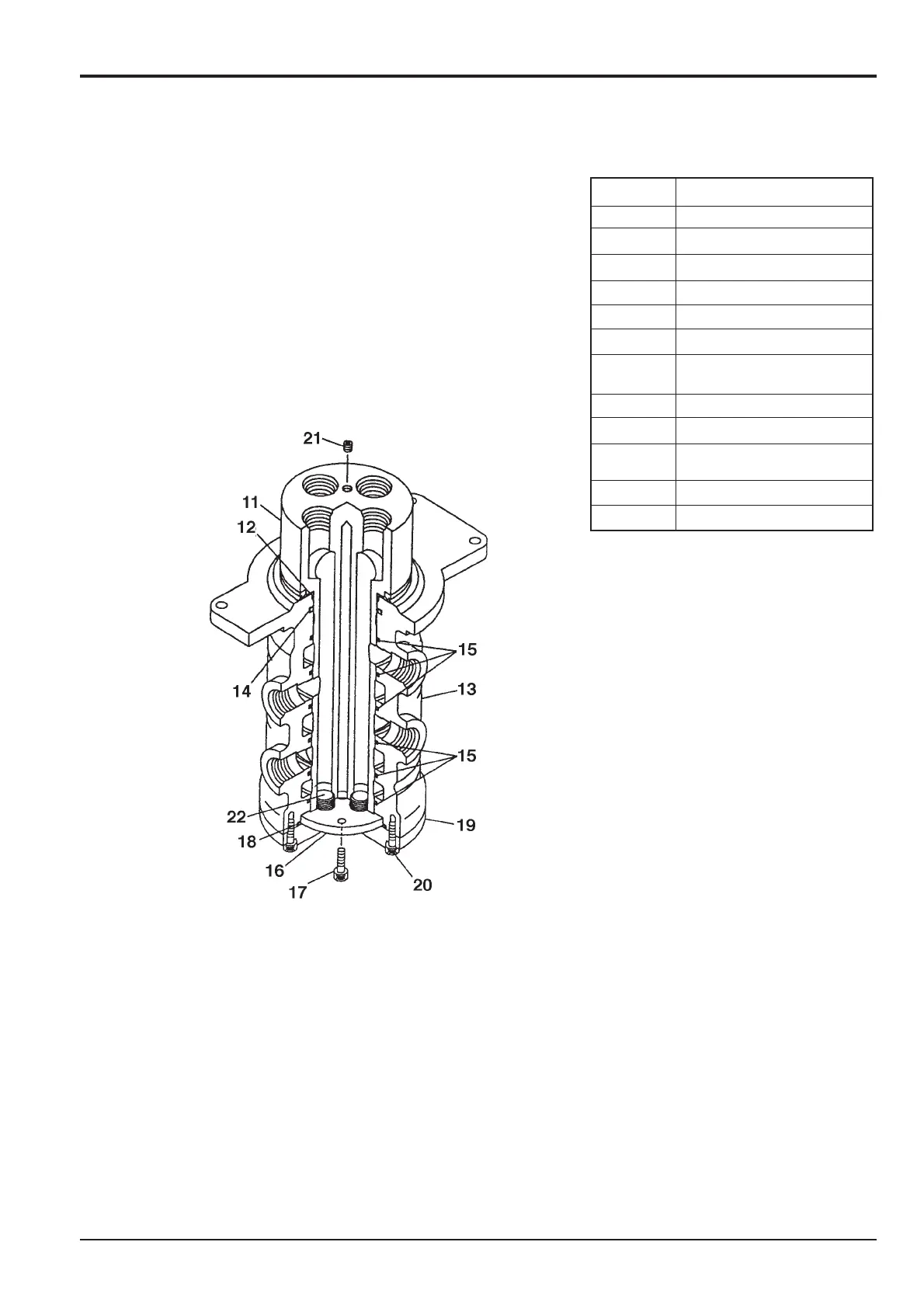

Rotary Coupling
Item
Part Name
11
Axle
12
V
-ring
13
Rotor
14
‘O’-ring
15
Packing ring
16
Thrust plate
17
Hexagonal socket head
screw
18
‘O’-ring
19
Cover
20
Hexagonal socket head
screw
21
Plug
22
Plug
JS01810
396
398
