82 - 2
Section E Hydraulics
9803/6410
Section E
82 - 2
Issue 1

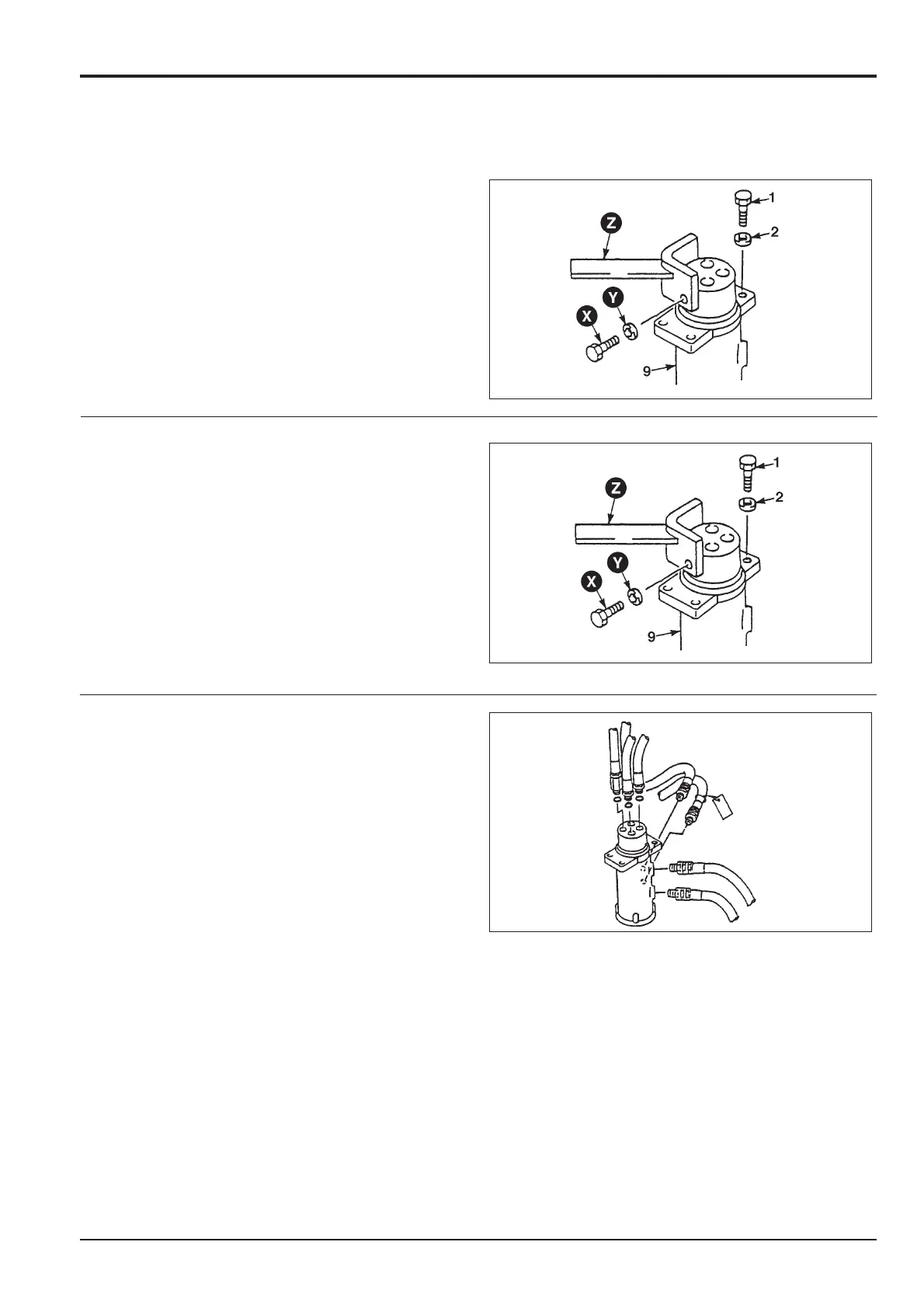

Rotary Coupling
Removal (cont’d)
4 Remove lock bar mounting screws X, washer Y and
lock bar Z.
Remove rotary coupling installation bolts 1 and
washers 2.
Replacement
1 Align the assembly 9 to the lower frame and tighten
rotating joint installation bolts 1 and washers 2.
Install lock bar Z and tighten mounting screws X and
washers Y to specified torque of 109-127 Nm (80.28-
93.28 lbf ft, 11.1-12.9 kgf m).
2 Reconnect the hoses and install the access cover.
Remove the wooden block, then lower the machine to
the ground.
Start the machine and check for leaks.
JS00180
JS00180
To Next Page
