82 - 4
Section E Hydraulics
9803/6410
Section E
82 - 4
Issue 1
Rotary Coupling
Dismantling (cont’d)

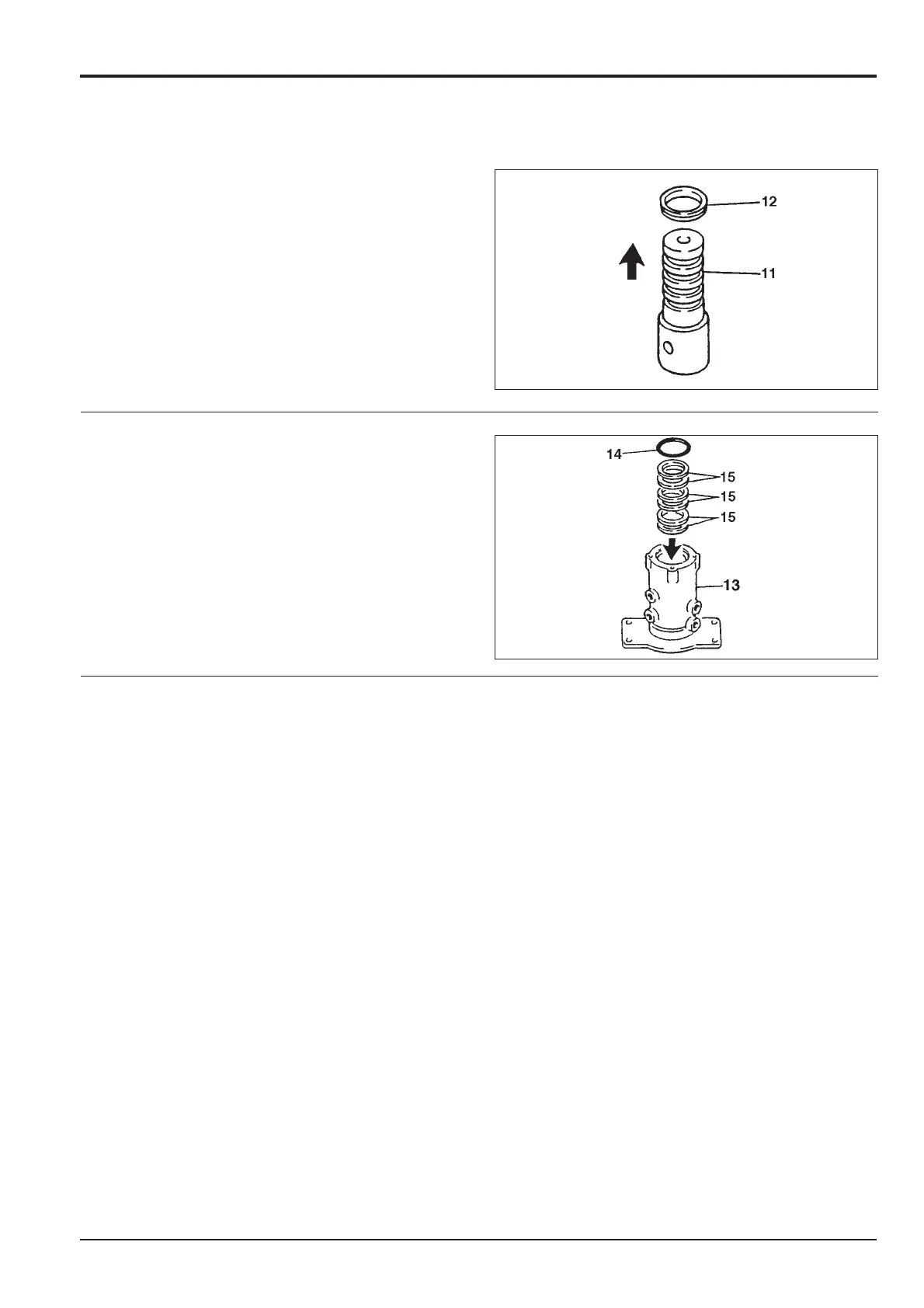

5 Remove and discard V-ring 12 from axle 11.
6 Remove and discard 'O'-ring 14 and packing rings 15
from rotor 13.
JS00190
