82 - 6

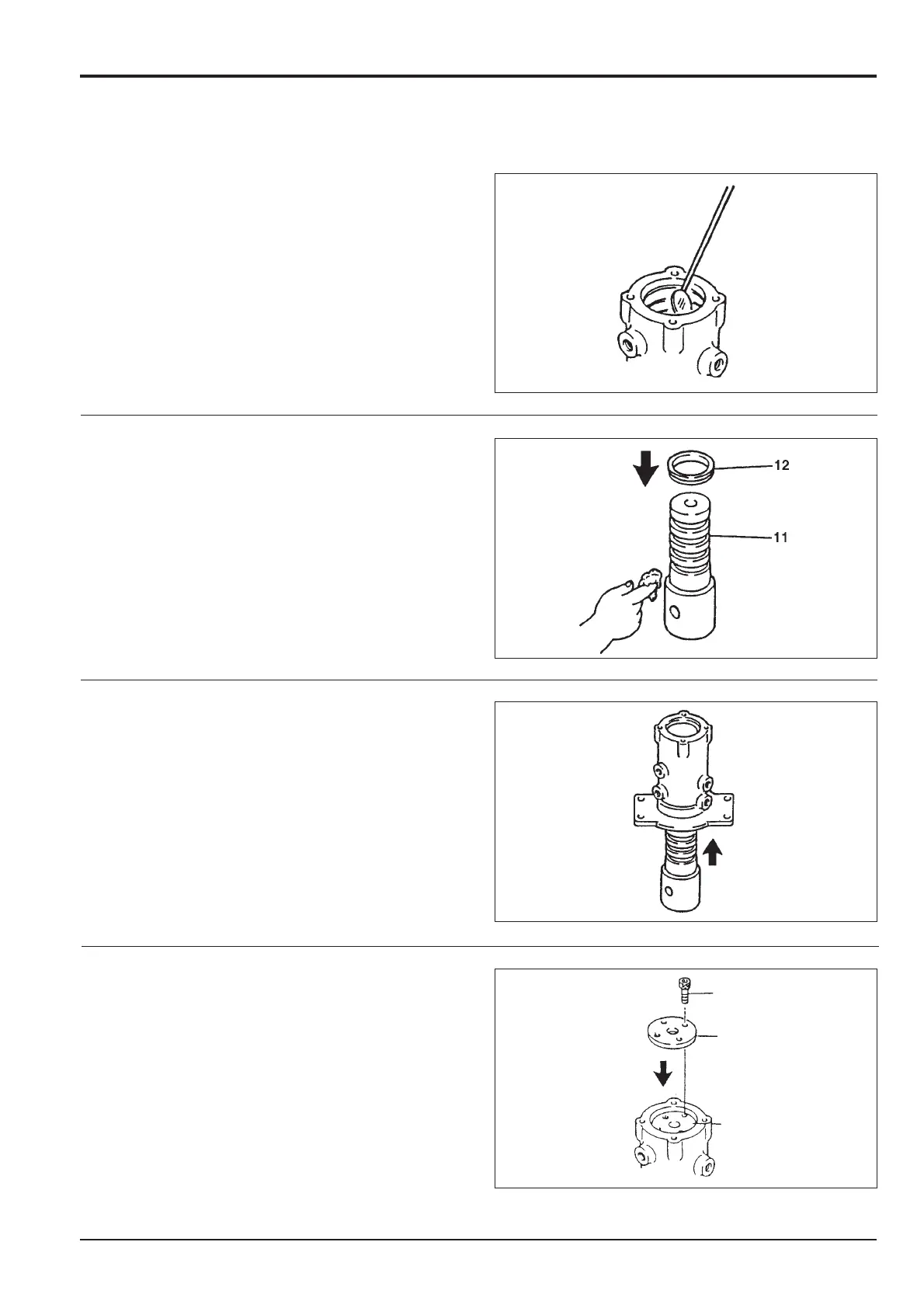

Assembly (cont’d)
3 After installing the 'O'-ring and packing rings, check
with a mirror to see if they are installed correctly.
After checking, coat with grease then check once more
for any protrusion, twisting, etc.
4 Install V-ring 12 on axle 11 and coat with grease.
Take care to prevent contamination of the grease by
water or dirt.
5 Install axle 11 to the rotor 13.
Note: Set V-ring 12 so that it will not be cut or scratched.
6 Install thrust plate 16 onto the axle 11 using cap screws
17.
Torque Settings
17 31.46 - 37.29 Nm (23.2 - 27.5 lbf ft)
Section E Hydraulics
9803/6410
Section E
82 - 6
Issue 1
Rotary Coupling
17
16
11
To Next Page
