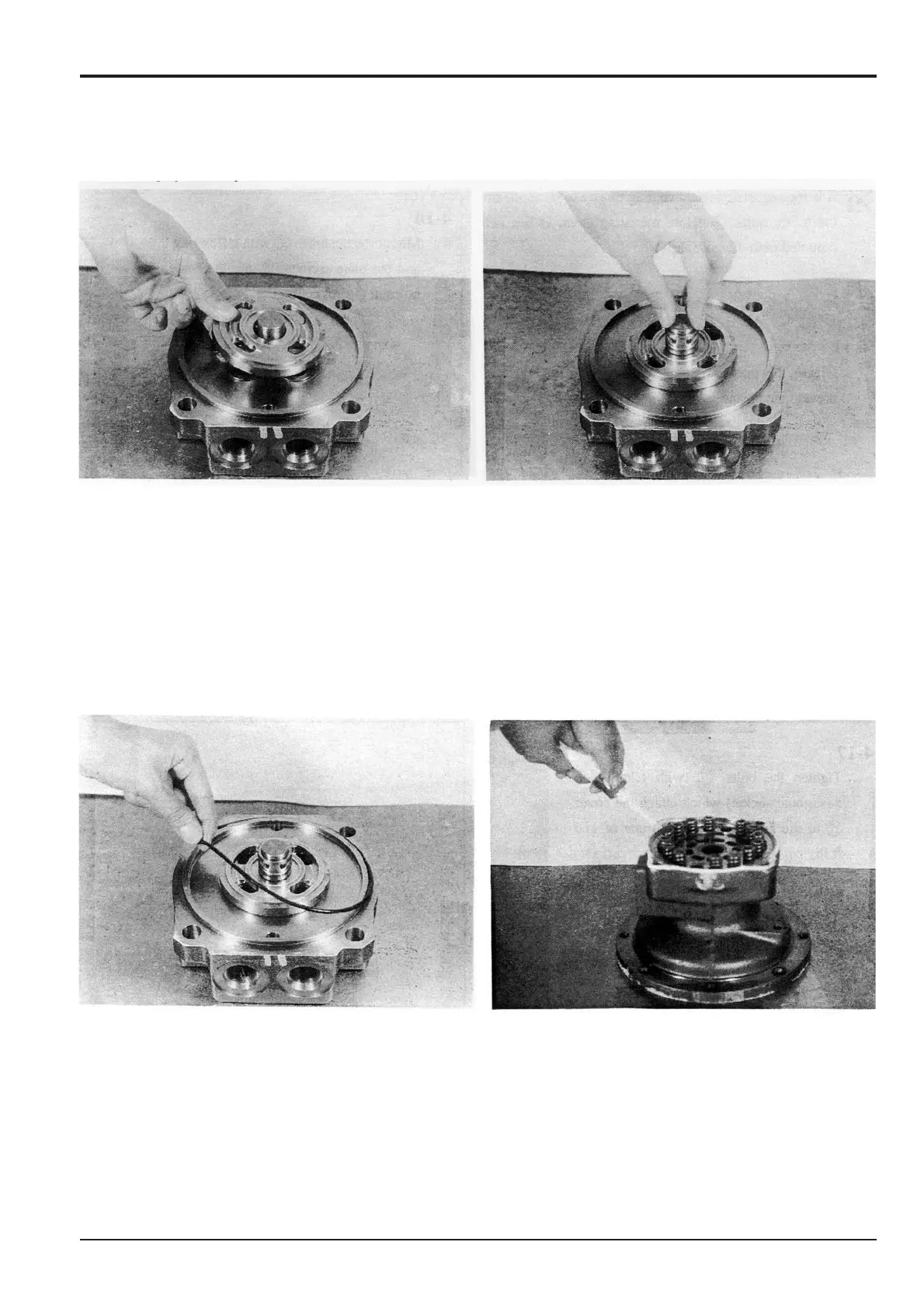

92 - 12
18
Mount balance plate
21
onto cover
17
.
19
Press needle bearing
22
inner ring into cover
17
and
attach snap ring
23
.
Section E
Hydraulics
9803/6410
Section E
92 - 12
Issue 1
Slew Motor
Motor Assembly/Cylinder Assembly
Assembly (cont’d)
20
Apply grease to the 'O'-ring and install 'O'-ring
13
to
cover
17
.
21
T
o prevent oil leakage fr
om the cover bolt holes apply
JCB Multi-gasket to the surface.
425
