3 - 5
Automatic 2-Speed Switching (cont’d)

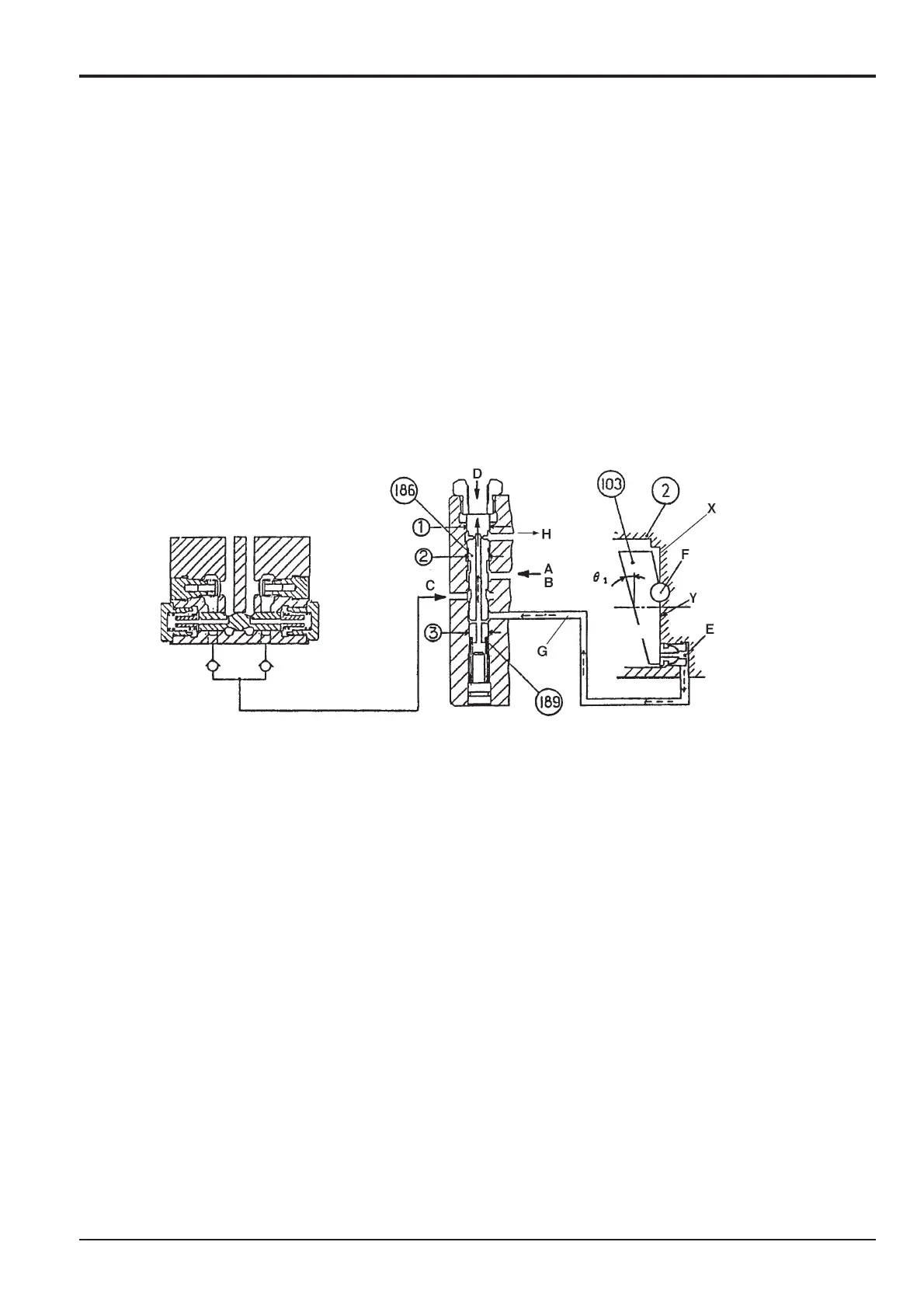

Automatic Switching - High Speed/Low Speed
During normal ‘high speed’ operation the pressure at port A
or B is less than 98 bar (1422 lbf/in
2
, 100 kgf/cm
2
). As
machine load increases, so does the pressure at port A or B.
When the pressure reaches 235 bar (3414 lbf/in
2
, 240
kgf/cm
2
) this overcomes the pilot pressure at port D forcing
spool 186 upwards to produce the condition described
under Low Speed Operation. When the pressure at A or B
falls below 235 bar (3414 lbf/in
2
, 240 kgf/cm
2
) spool 186 is
forced downwards to reproduce the conditions described
under High Speed Operation.
Section F Transmission
9803/6410
Section F
3 - 5
Issue 1
Operation
JS01690
