jcb JS130 User Manual

8 - 1
Section J Track and Running Gear
9803/6410
Section J
8 - 1
Issue 1

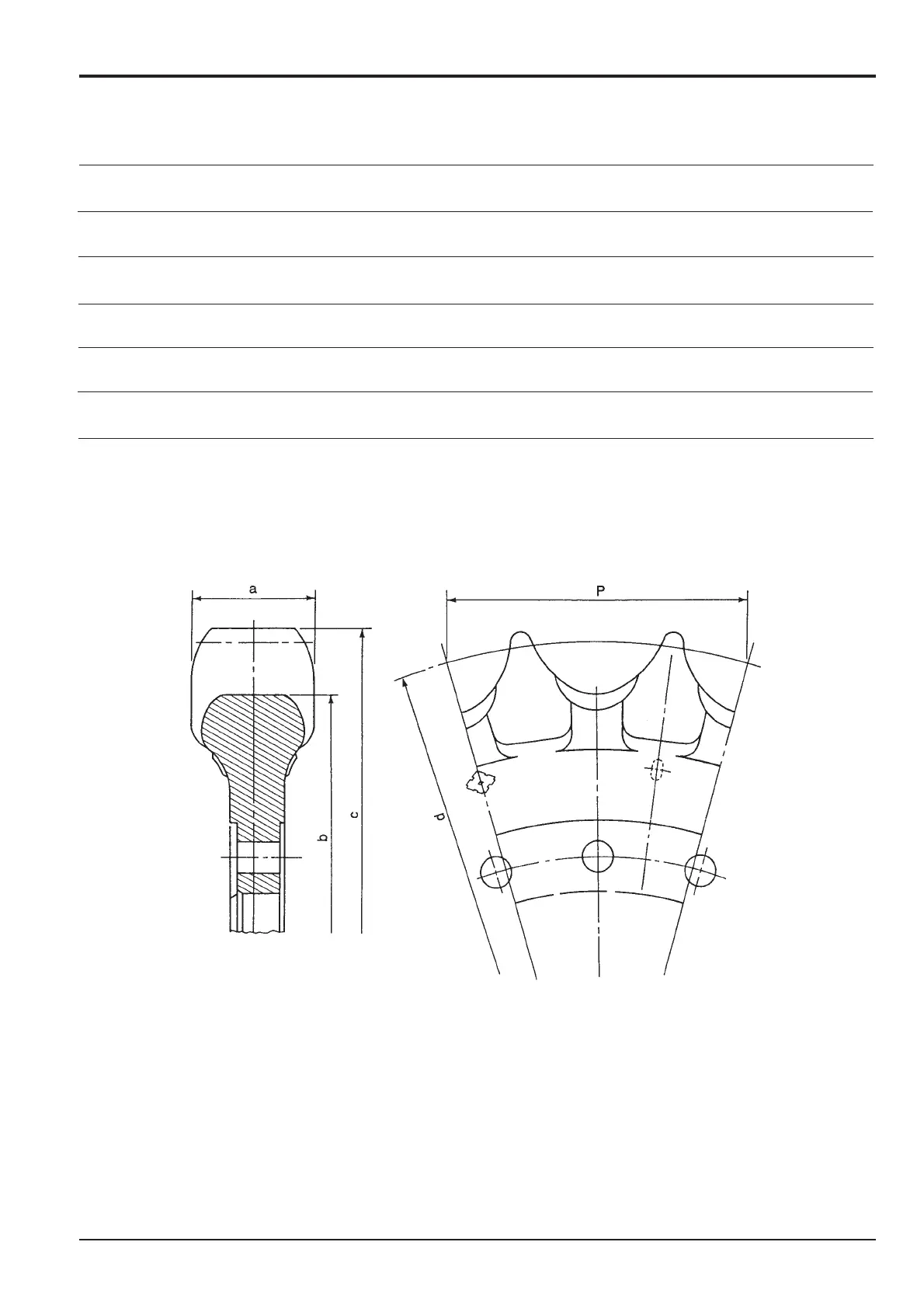

Drive Sprocket
Wear Limits
Item Dimension Machine Standard Size Service Limit Action
mm in mm in
Width a JS130 58.9 2.32 53 2.09 Renew
JS160 66 2.60 60 2.36 Renew
Diameter b JS130 585 23.01 579 22.78 Renew
JS160 582 22.93 577 22.70 Renew
Diameter c JS130 584 25.67 646 25.43 Renew
JS160 659 25.95 653 25.71 Renew
Diameter d JS130 636 25.02 - - Renew
JS160 645 25.38 - - Renew
Centres P JS130 171 6.75 - - Renew
JS160 190 7.48 - - Renew
