Attachments (continued)
Bucket Ram Installations JS130
Dipper and Dipper Link Installation JS130
Section B Body & Framework
9803/6410
Section B
4 - 4
Issue 1

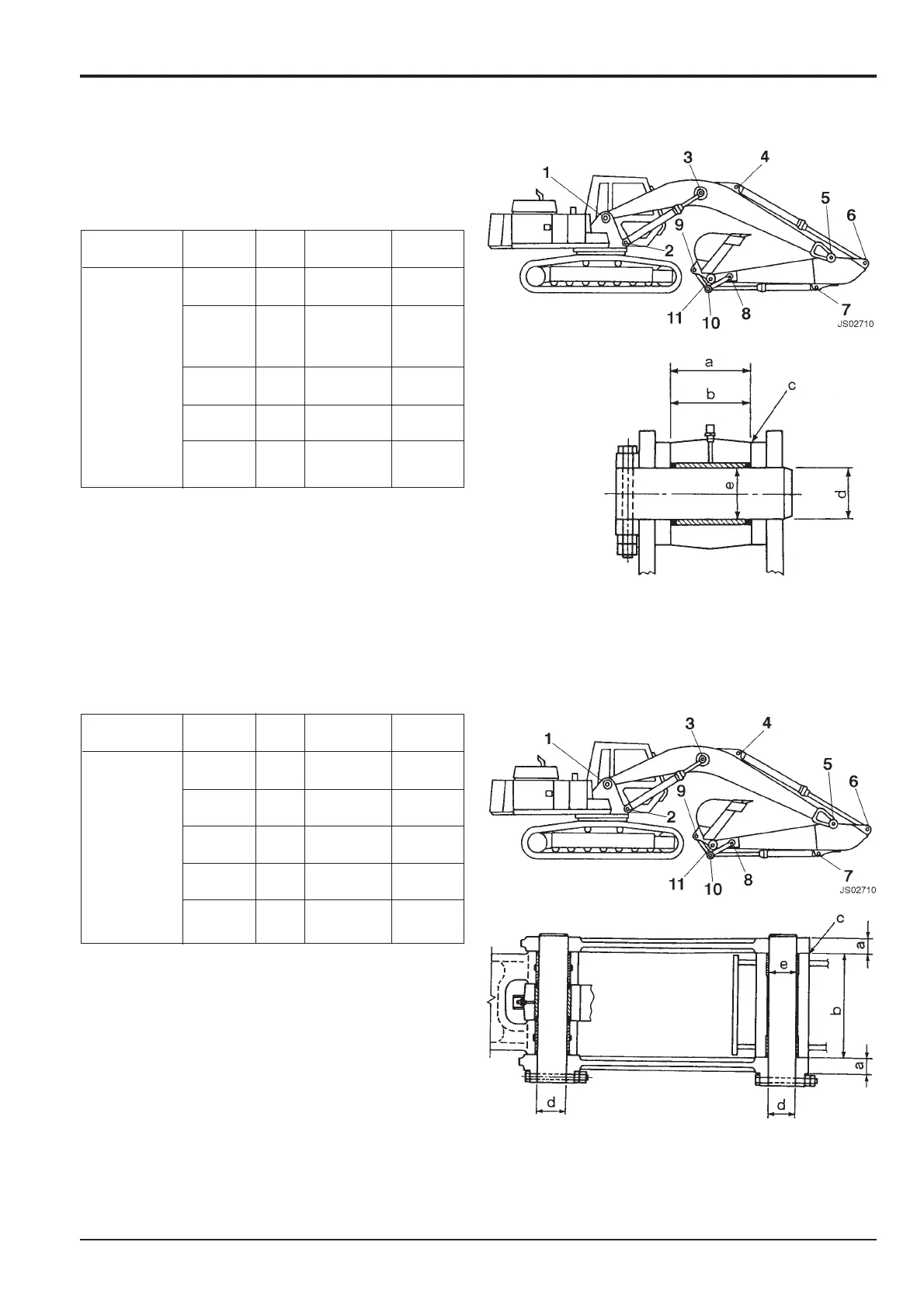

Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
7. Bucket Ram Dipper a 88 94
installation
Bucket
ram b 87 85
(eye end)
Clearance c 0.5-3.0
Pin d Ø65 Ø64
Bushing e Ø65 Ø66.5
(bucket ram)
Shim for
adjustment
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
8. Dipper and Dipper Link a 37 34
Dipper
link
installation Dipper b 254 252
Clearance c 1.0-1.5
Pin d Ø65 Ø64
Bushing e Ø65 Ø66.5
(Dipper)
Shim for
adjustment
