Assembly
Assembly is essentially a reverse of the dismantling
procedure in the previous section.
Exchange or repair any parts not in accordance with
instructions laid down in the Maintenance Standards.
Ensure that all parts are cleaned in the appropriate solvent
and dried with compressed air.
Apply a thin film of hydraulic fluid to all sliding parts, bearings
and other contact surfaces before assembly.
Replace all 'O'-rings and seals, where appropriate cover with
petroleum jelly before fitting.

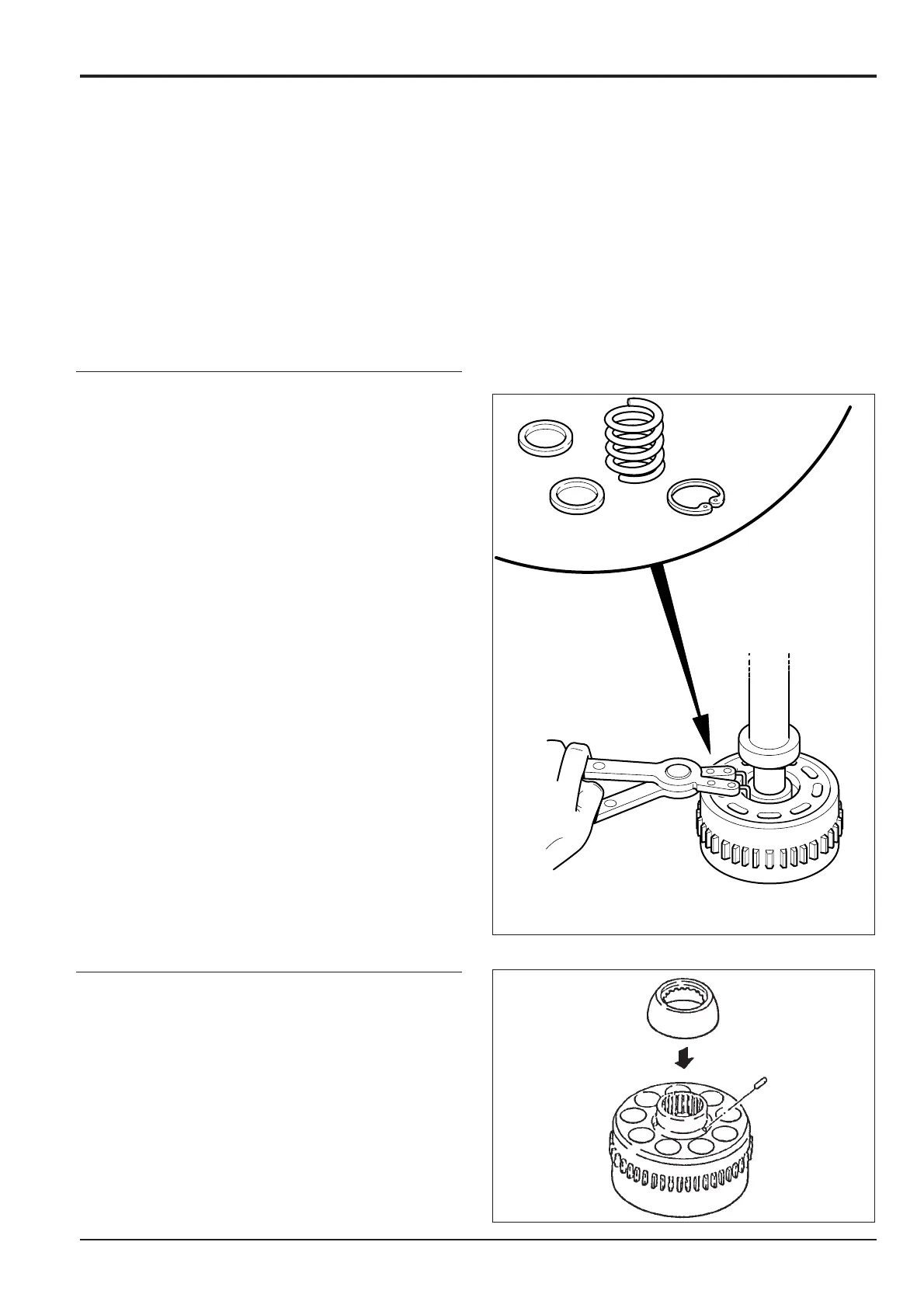

1. Cylinder block assembly
Assemble the (17) spring seat, (16) spring and (15)
spring seat to the (4) cylinder block and fit the (14) snap
ring.
2. Apply grease to the (19) pin and assemble at the
three holes on the (4) cylinder block then assemble the
(8) retainer holder to the (4) cylinder block.
