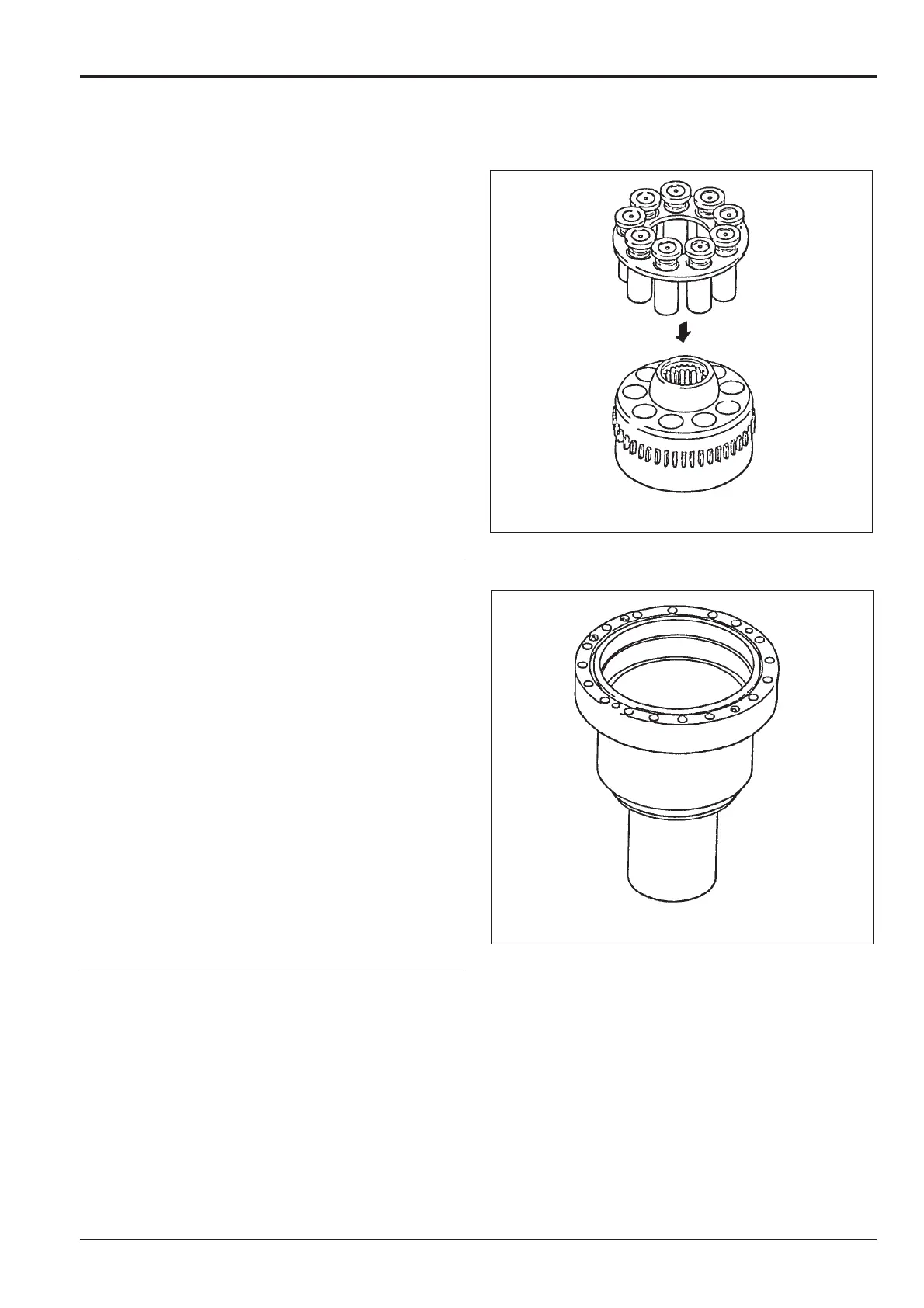

Assembly (continued)
3. Assemble the (6) piston into the (7) retainer plate
and insert into the (4) cylinder block.
Note: Assemble them so that the small diameter of the inner
taper of the retainer plate comes into contact with the flange
of the piston shoe. Coat hydraulic oil on the piston bores of
the cylinder block and then insert the piston.
4. Fix the (1) case on the work bench.
Section F
Transmission
9803/6400
Section F
7 - 8
Issue 1
Motor
