Always ensure that the legs are
securely fastened onto the seat
frame before using the chair.
!
Mount and Removal of Back Legs
Removal of the Back Legs
To perform this operation place the chair
upside down to allow easier access to the
adjustment area. You should use a 10mm
spanner and a 4mm allen key for this
procedure.
Loosen the screws (A) located either
side of bar, with the allen key, (using the
spanner if needed). Once loose, the legs
are ready to be removed.
Slide the legs away from the frame.
•
•
Remounting of Legs
Reverse the removal operation, slotting the
back legs into the bar on the seat frame (B).
Securely tighten bolts (A) with the allen
key and spanner ensuring that the legs
are held firmly in place.
•
•
A
B

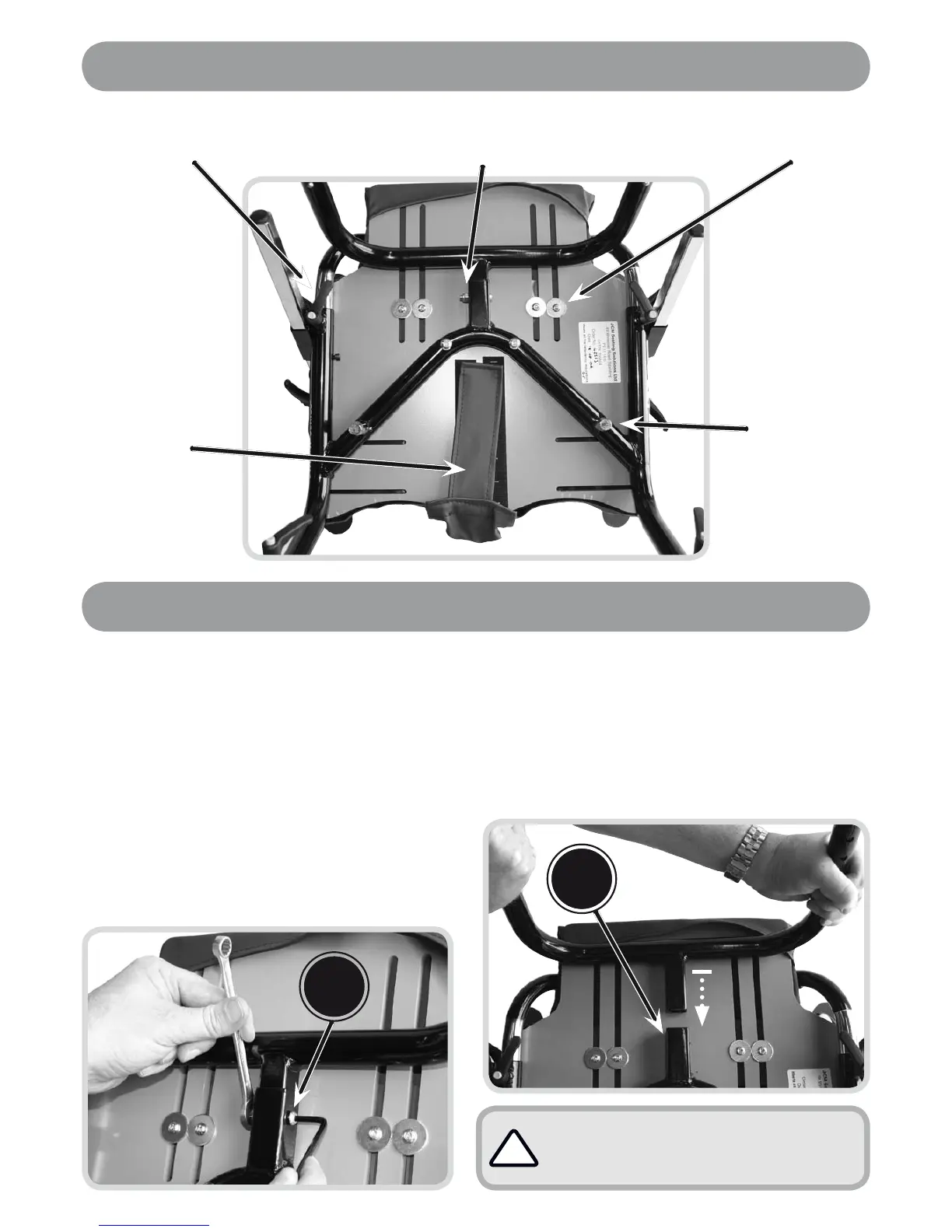

Adjustment Points Underneath Seat
Back leg
fixing point
Hip pad
adjustment points
Seat depth
adjustment levers
Fixing pins
(used for
mounting to
base)
Seat cover
attachment
