Adjusting Arm Height & Angle
A

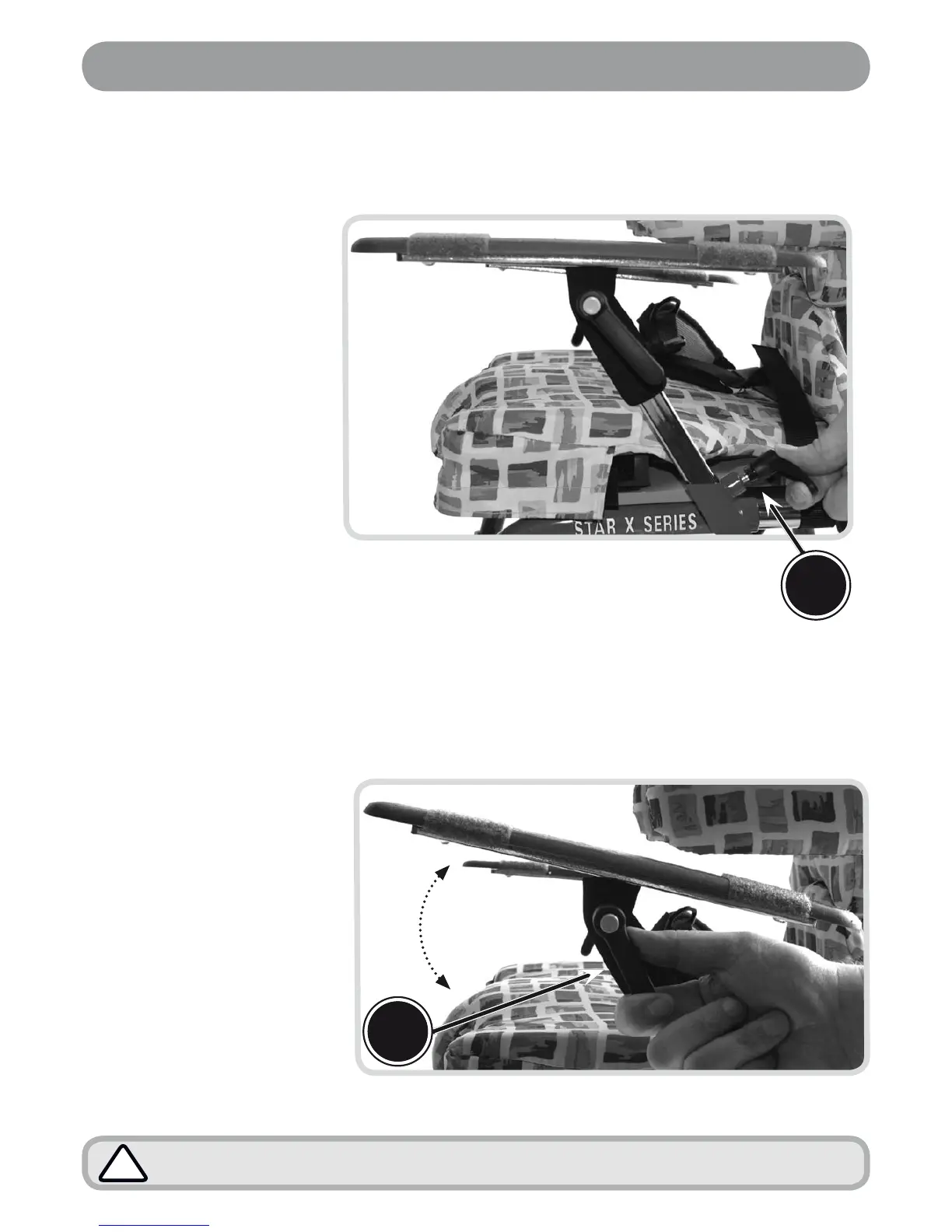

Adjusting Arm Height
(A) highlights the lever which is used to adjust the height of the arms and therefore in turn
the height of the tray.
Loosen lever (A) by
turning it in an anti-
clockwise direction, this
will enable the arm to
be manually slid up or
down within its location
bracket.
When a suitable
position has been
acquired, lock the arm
into place by tightening
the lever, turning in the
clockwise direction.
Adjusting Arm Angle
The arms fitted to your Star X chair can be altered to sit throughout an angle range, enabling
the user to level their tray no matter what tilt the chair is secured at.
Loosen lever (B) by
turning it anti-clockwise.
Once loose, the arm
can be manually
adjusted throughout
a range of angles to a
suitable position and
then locked off.
When the desired
location has been
acquired tighten
the lever by turning
clockwise.
•
•
•
•
•
B
Always ensure that the arms of the chair are secure.
!
