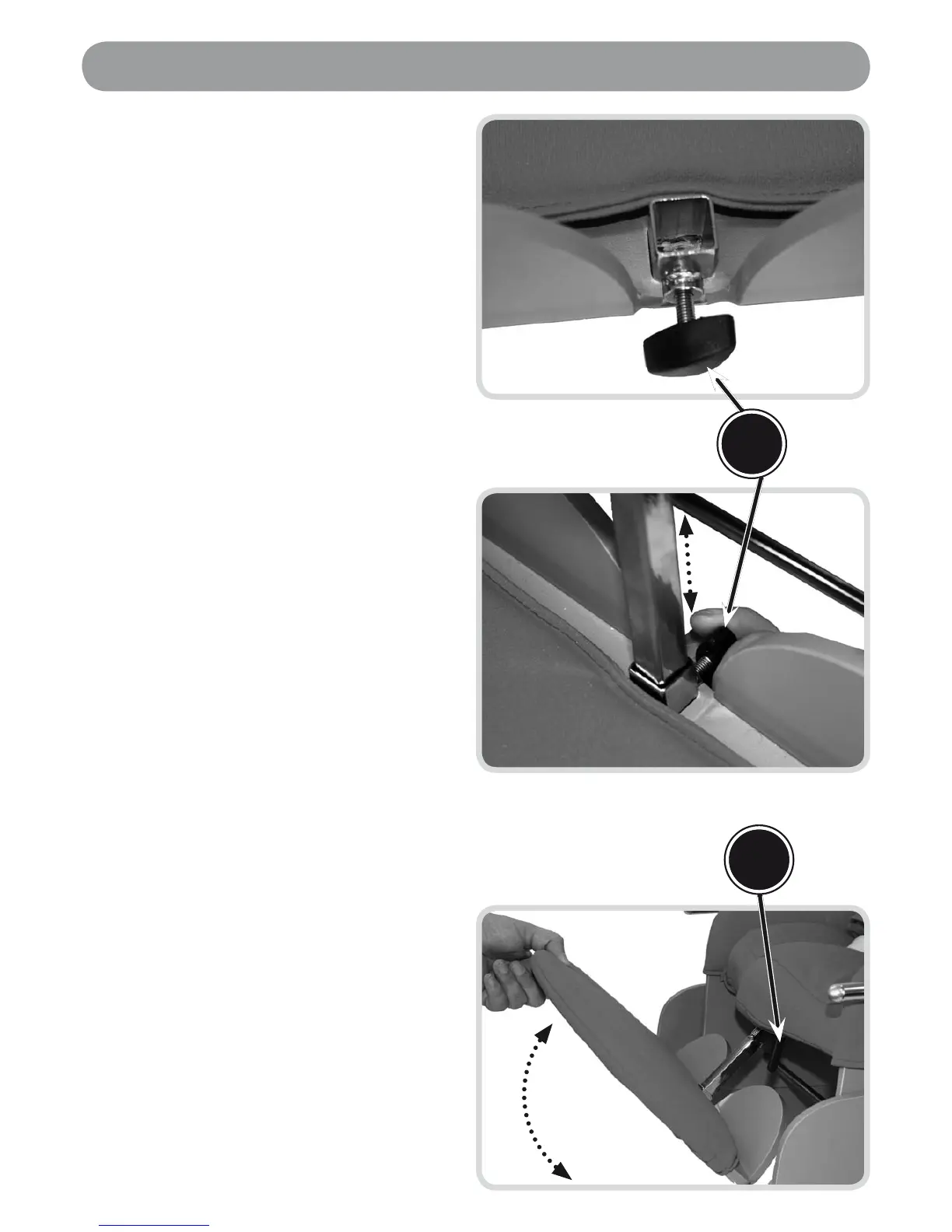

Footplate & Leg Length Adjustment
A
B
Leg Length Adjustment
Lever (A) allows the operator to
position the footplate and cater for
the leg length of the child seated.
Turn lever (A) in an anti-
clockwise direction. Once loose
enough (do not remove levers
entirely) the footplate is free to
be manually slid up and down
the chrome leg.
Once a suitable footplate
position has been acquired the
user should lock it into place by
tightening the lever, turning in the
clockwise direction.
Angle Position of Footplate
Lever (B) allows the operator to
adjust the angle position of the
footplate.
Turn lever (B) in an anti-
clockwise direction. Once loose
enough (do not remove lever
entirely) the footplate is free to
be manually swung about the
point where the lever is located.
Once a suitable footplate
position has been acquired,
lock the footplate into place by
tightening the lever, turning in the
clockwise direction.
•
•
•
•
