JCM Sunbeam User Manual

4
Never remove these levers
entirely as this will prevent
you from being able to
perform adjustments in the
future.
To use:
Turn the lever handle
clockwise to tighten or
anti clockwise to un-
tighten.
To use the lever when an
obstruction is met:
Pull the handle of the
lever outwards, towards
you (A). This disables the
•
•
function of the lever.
Continue to hold the
lever out and reposition
the lever handle in a
suitable position past the
obstruction.
Release the handle to re-
engage the lever function
(B) and continue to
tighten or un-tighten in the
normal way.
Repeat this procedure in
areas where adjustment
is restricted due to an
obstruction.
•
•
•

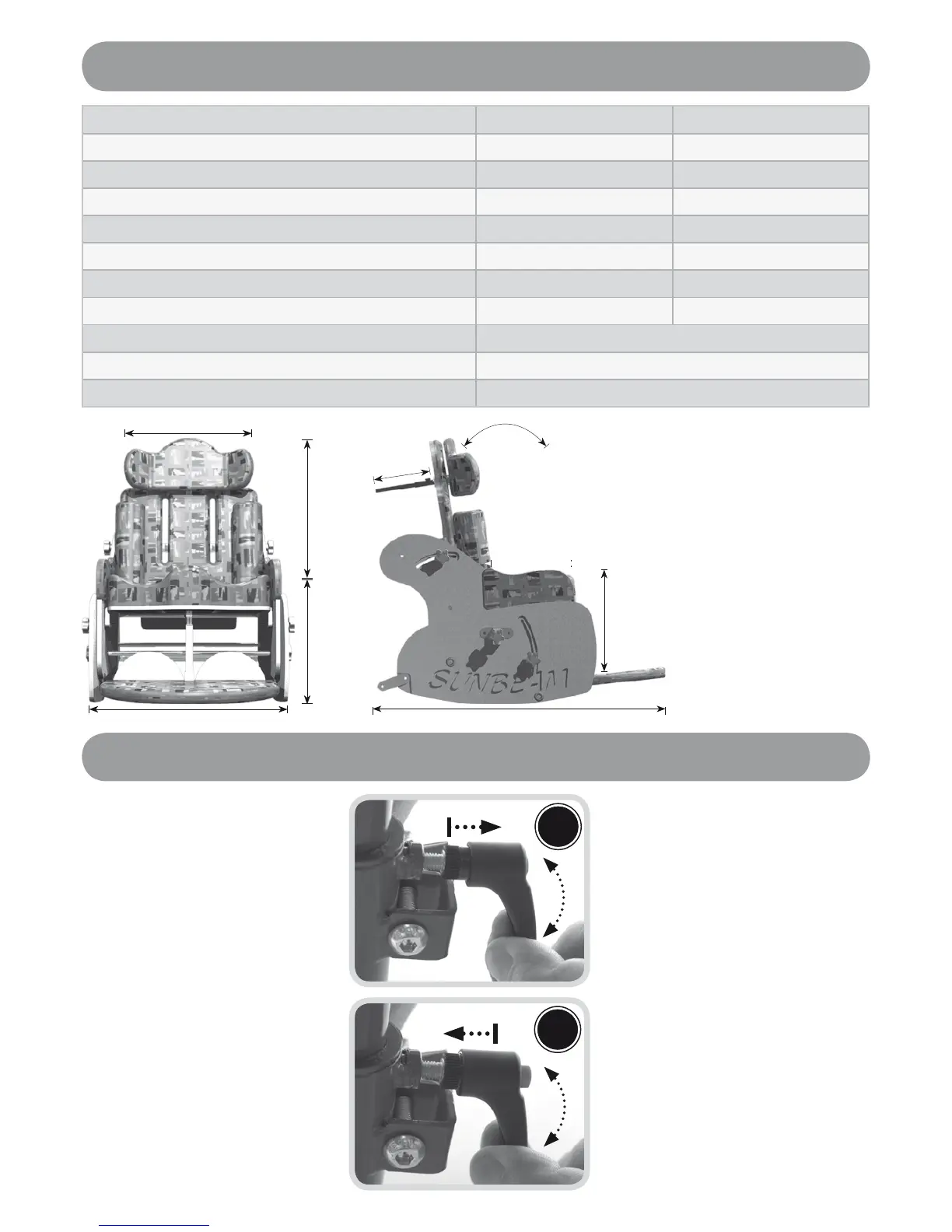

Measurements & Useful Info
Measurements (cm) MIN MAX
A Seat Depth 15.0 27.5
B Seat to Headrest 25.0 45.0
C Seat to Footplate 0 28.0
D Seat Width (between laterals) 16.5 36.5
E Floor to Seat (high-low base) 56.0 70.0
F Tilt / Prone 5.0 ° -35 °
G Back Recline 15.0 ° -30 °
H Base Footprint 50 x 41
Max user weight 10.0kg
Weight of chair 14.4kg
H
C
F
G
A
B
E
D
H
Effective Operation of Lock Levers
A
B
