Tray Fitting & Adjustment

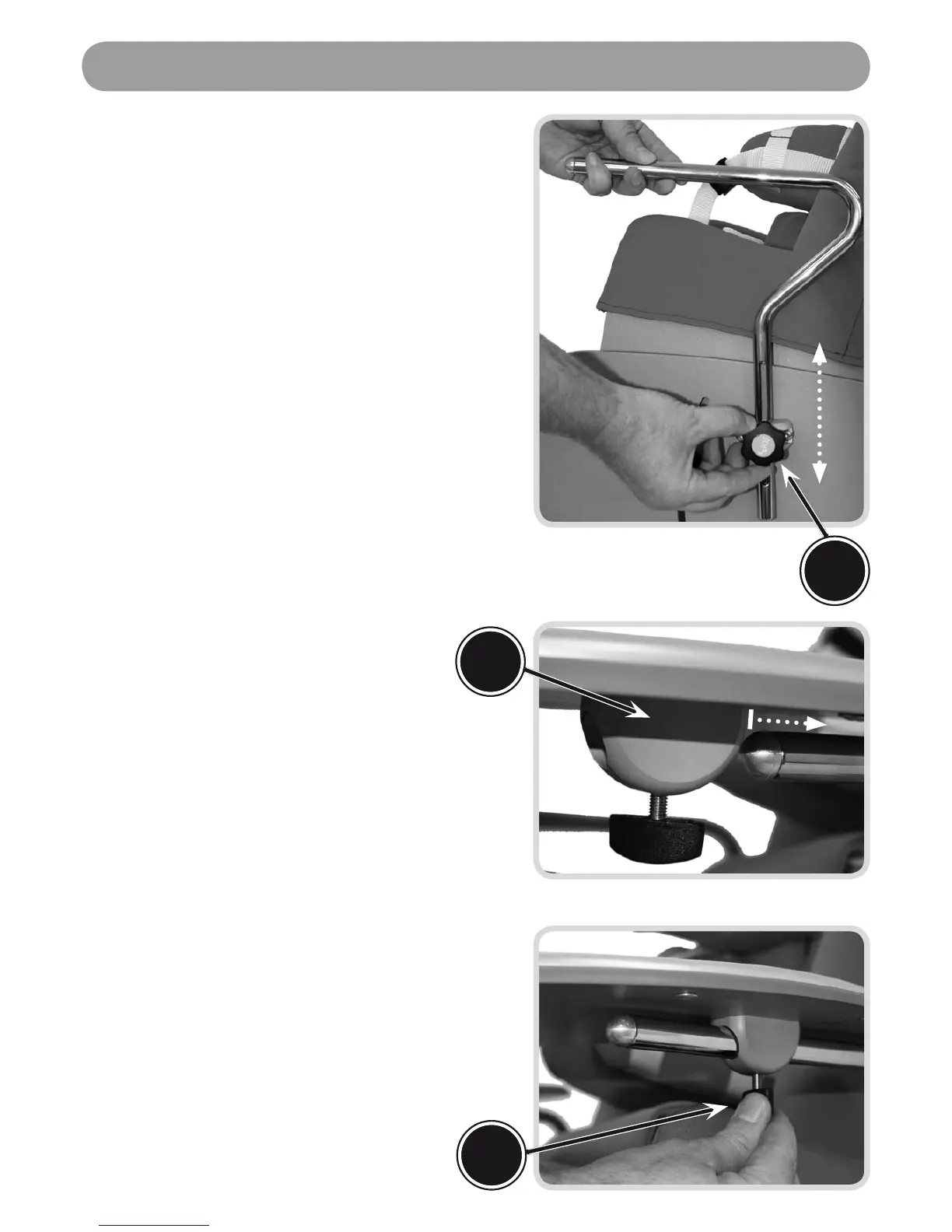

Adjusting the Tray Height
To adjust the height of the chrome
arms simply loosen off the lever
(A) by turning in an anticlockwise
direction until the arm is free
to slide up and down within its
location bracket. It is necessary
that both the left and right hand
side arms are adjusted together to
ensure that the tray sits level.
When the desired height position
has been acquired, lock the arms
into place by tightening the levers
against the arms, turning them in
the clockwise direction.
Fitting the Tray
Rest the tray on the
arms of the chair.
Line the tray rail brackets
(B) up with the chrome
arms and slide the chrome
arms into the brackets.
Once the arms are clearly
located within the rails it is
necessary to lock the tray into
place by tightening levers (C)
attached to the rails either side.
Turn in the clockwise direction
until they have gripped the
arms of the chair securely.
To remove the tray the user should
simply reverse this process.
•
•
•
•
•
