Basic service 33

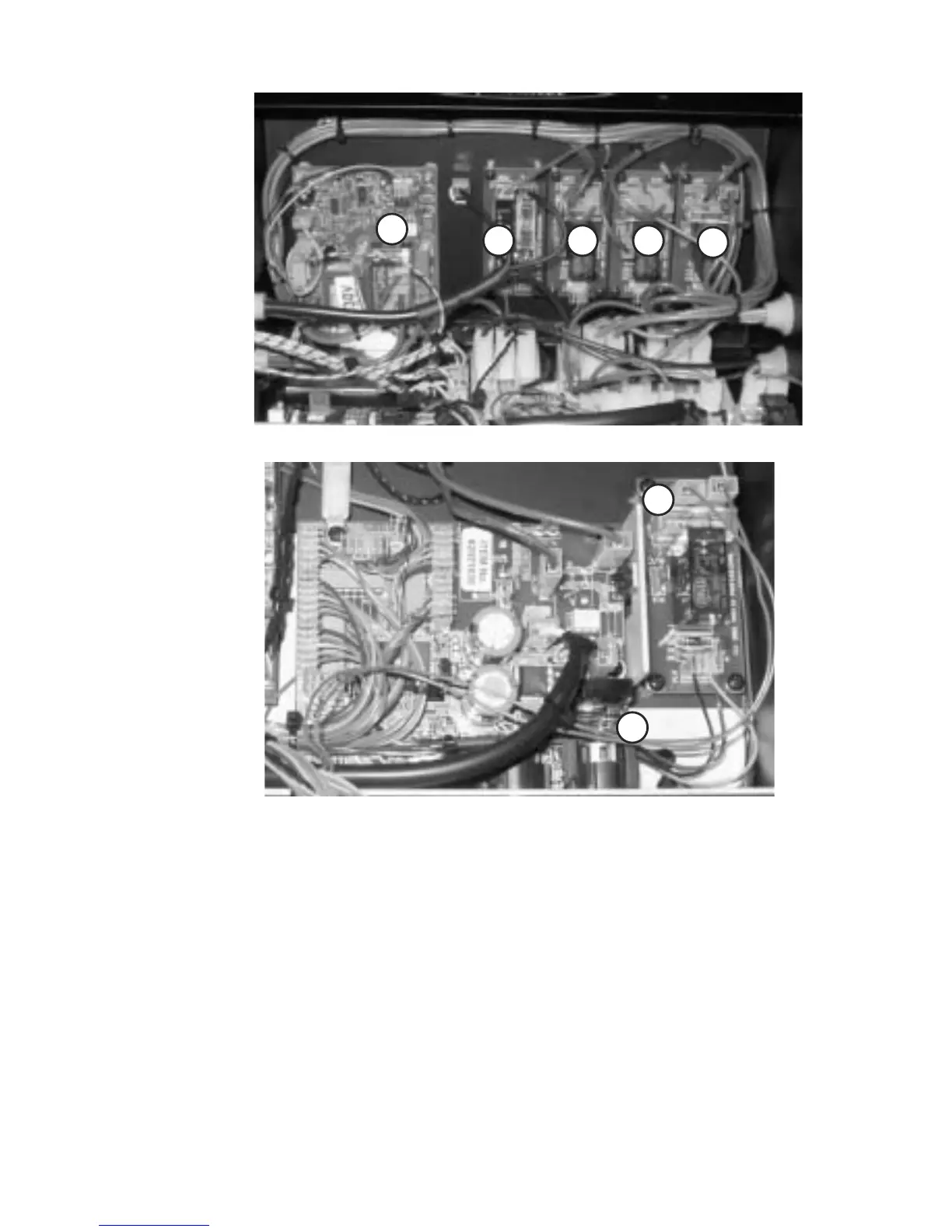

4 The fuses can be found on the circuit boards.
5 Remove the fuse and replace the fuse with one of the same type.
6 Replace the device cover and tighten the access screws, taking care not
to trap any loose wires.
A Compressor control relay 3.15AT
B Condenser fan relay 3.15AT
C Local/Remote relay 3.15AT
D Solid state relay 3.15AT
E Power PCB 15AT
F External pump signal 1AT
G DMX receiver low voltage 2AT
A
B
CD
E
F
G
