Jensen 400 - Speaker Wiring

POWER Amplifiers
6
Speaker Wiring

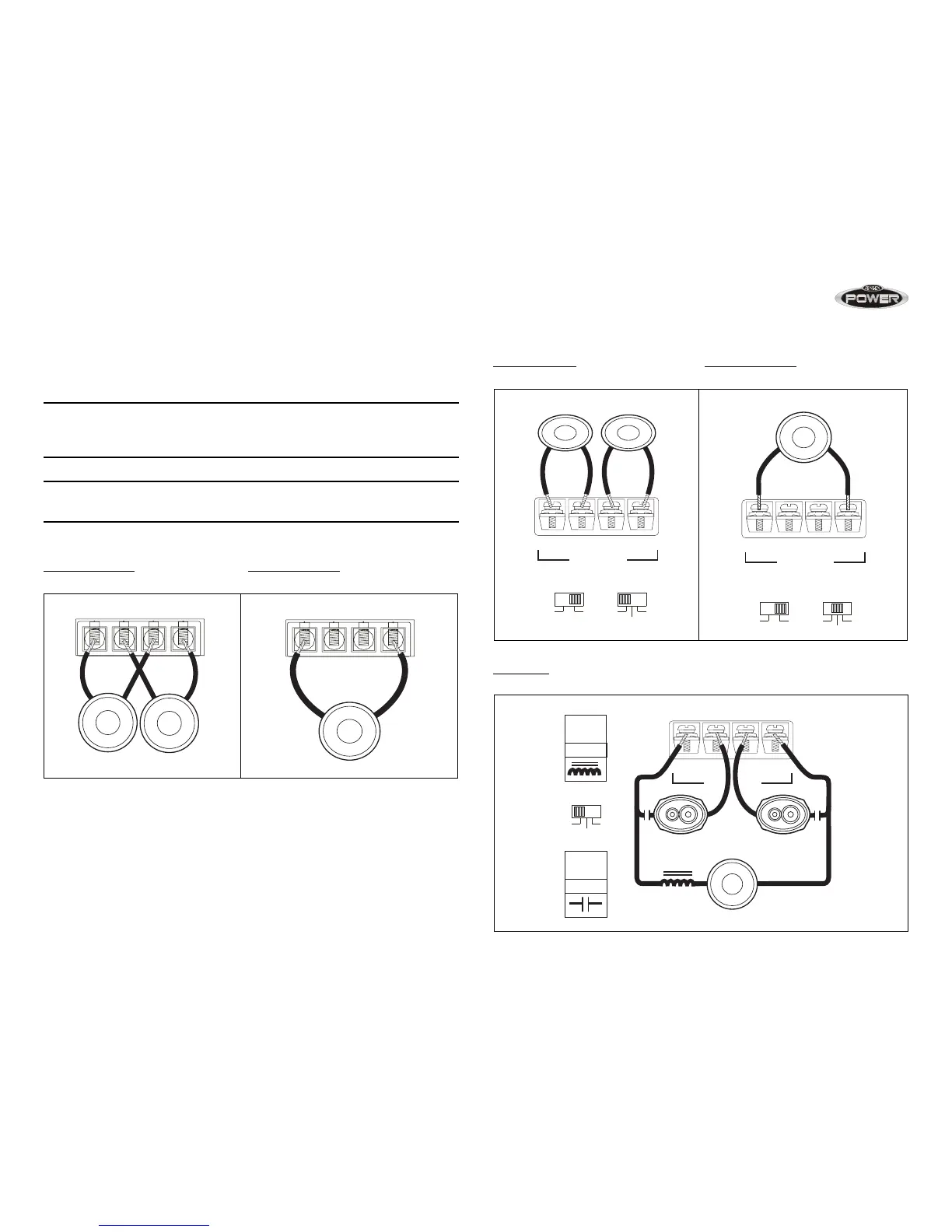

The Speaker Wiring diagrams illustrate options for connecting one or two
speakers. Observe the proper speaker polarity.
NOTE: Power amplifiers can drive speakers with a nominal impedance
range of 2~ 4-ohms. For maximum power, configure your speakers for a
nominal 2-ohm load.
NOTE: Do not overlook the use of the proper gauge speaker wire. The
Power series of amplifiers require a minimum of 12-gauge wire.
Power 900/1050
Two Subwoofer One Subwoofer
Power 400/880
Two Speakers One Subwoofer
Tri-Mode
4 ohm 4 ohm
– – + +
SPEAKER OUTPUT
4 ohm nominal
– – + +
SPEAKER OUTPUT
SPEAKER OUTPUT
+ LEFT - + RIGHT -
BRIDGED
4 ohm nominal
MONO STEREO
MODE X-OVER
FULL
LPF
HPF
4 ohm nominal
+ LEFT - + RIGHT
-
BRIDGED
SPEAKER OUTPUT
MONO STEREO
MODE X-OVER
FULL
LPF
HPF
SPEAKER OUTPUT
+ LEFT - + RIGHT -
BRIDGED
4 ohm nominal
C
L
L
C
Inductor
Capacitor
X-OVER
FULL
LPF
HPF
