Jensen 400 - Input Wiring

POWER Amplifiers
8

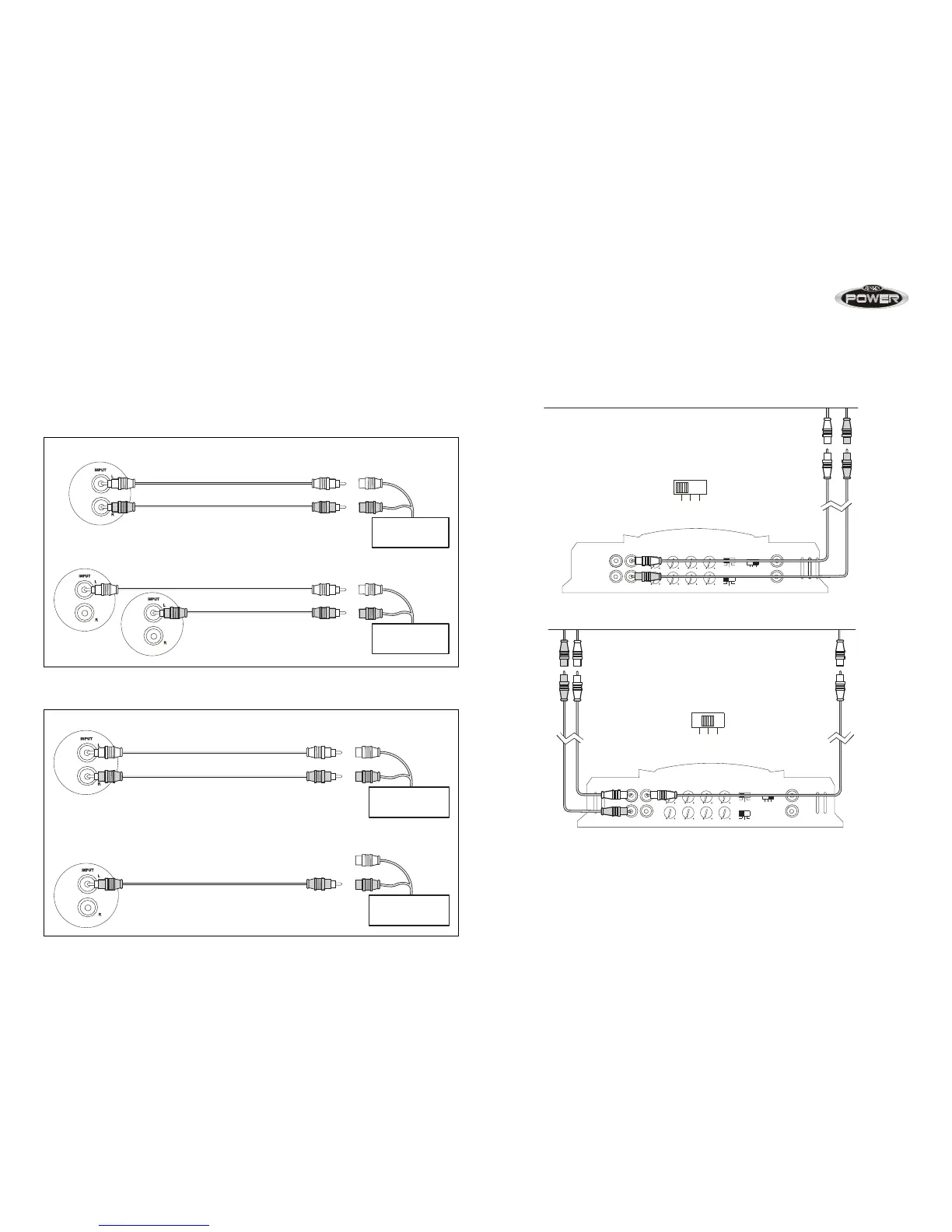

Input Wiring
Most trunk/hatchback installations will require a 15-20 foot RCA cable, while
pickup trucks and under-seat mounting will require a 6-12 foot RCA cable.
Connect an RCA cable from your receiver to the RCA input on your amplifier.
Power 400/880
Power 900/1050
Power 760/920
The Power 760 and 920 can be configured for three different input modes: 2
channel, 3 channel or 4 channel.
RCA Cable
CAR STEREO /
SOURCE UNIT
RCA Cable
CAR STEREO /
SOURCE UNIT
Input Wiring - Mono Mode
Input Wiring - Stereo Mode
RCA Cable
CAR STEREO /
SOURCE UNIT
RCA Cable
CAR STEREO /
SOURCE UNIT
Input Wiring - Mono Mode
Input Wiring - Mono Mode
min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz
min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz
LEVEL BASS EQ HPF LPF
X-OVER
FULL
LPF
HPF
FULL
LPF
HPF
234
MODE LINE OUT
2 Channel
CH3
CH4
CH1
CH2
LINE INPUT
234
MODE
min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz
min max 0dB 12dB 40Hz 300Hz 40Hz 300Hz
LEVEL BASS EQ HPF LPF
X-OVER
FULL
LPF
HPF
FULL
LPF
HPF
234
MODE LINE OUT
CH3
CH4
CH1
CH2
LINE INPUT
3 Channel
234
MODE
