Jensen CDR171 User Manual

6
CDR171

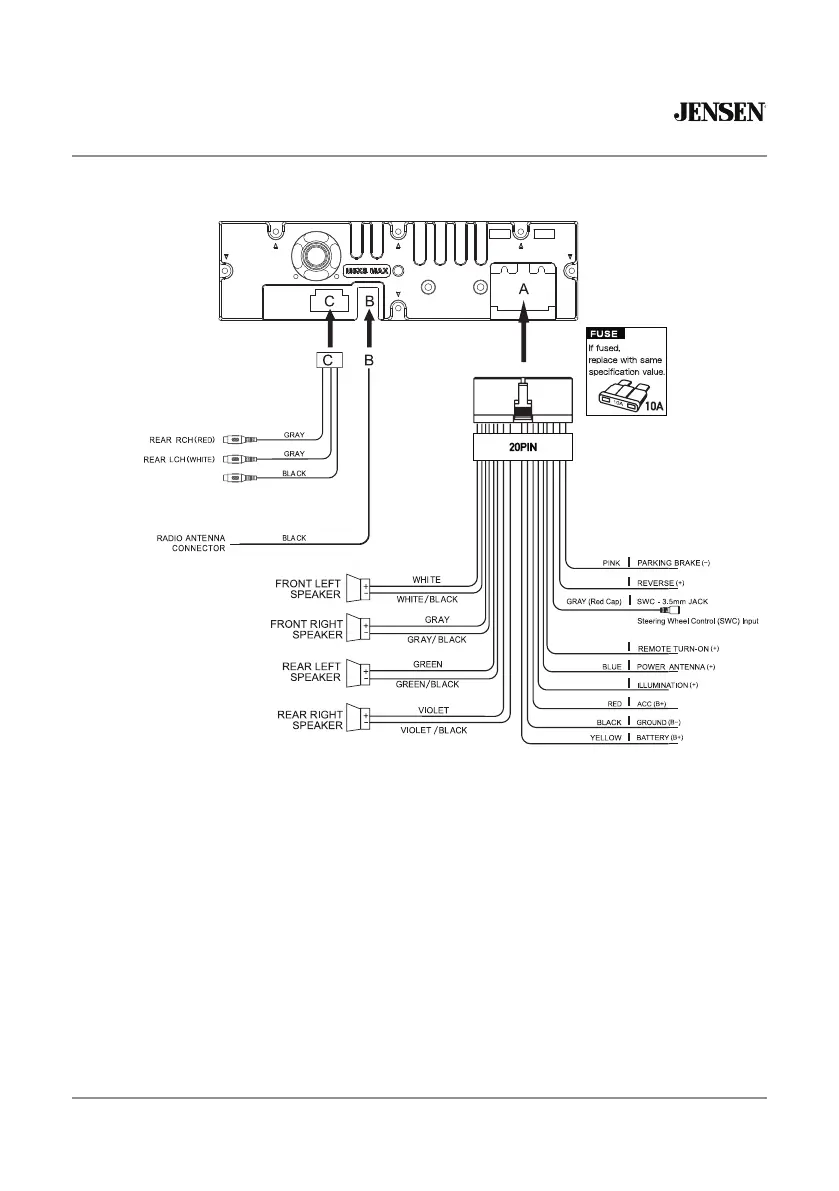

Wiring Diagram - Inputs/Outputs
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could
cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Rear camera input
A rear view camera (not included) can be used with the Camera input.
VIOLET/WHITE
BLUE/WHITE
ORANGE
(Compatible with most SWC Interfaces)
BACK-UP
CAMERA INPUT( VIOLET )

Jensen CDR171 Specifications

General

Brand	Jensen
Model	CDR171
Category	Receiver
Language	English
