CMN86 INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and
amperage. Using an incorrect fuse could cause damage. The unit
uses (1) 15 amp ATO blade-type fuse located on the back of the unit.
Wiring Notes:
Front / Rear camera inputs
Up to two cameras (not included) can be used.
We recommend optional Jensen Backup Camera part BUCAM200J
for Front Camera and part BUCAM300AJ or BUCAM400AJ for the
Rear Camera.

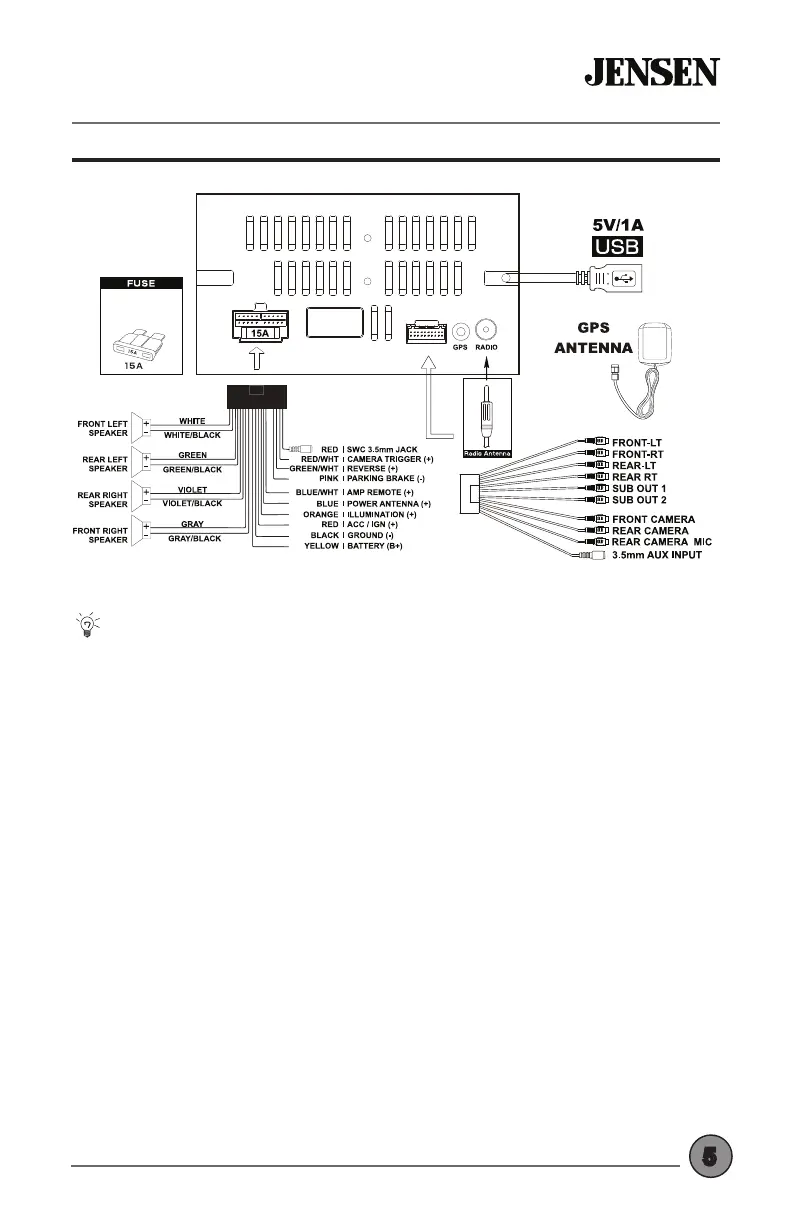

Input / Output Wiring Diagram
Replace with
ATO Type fuse
Only
To Next Page
