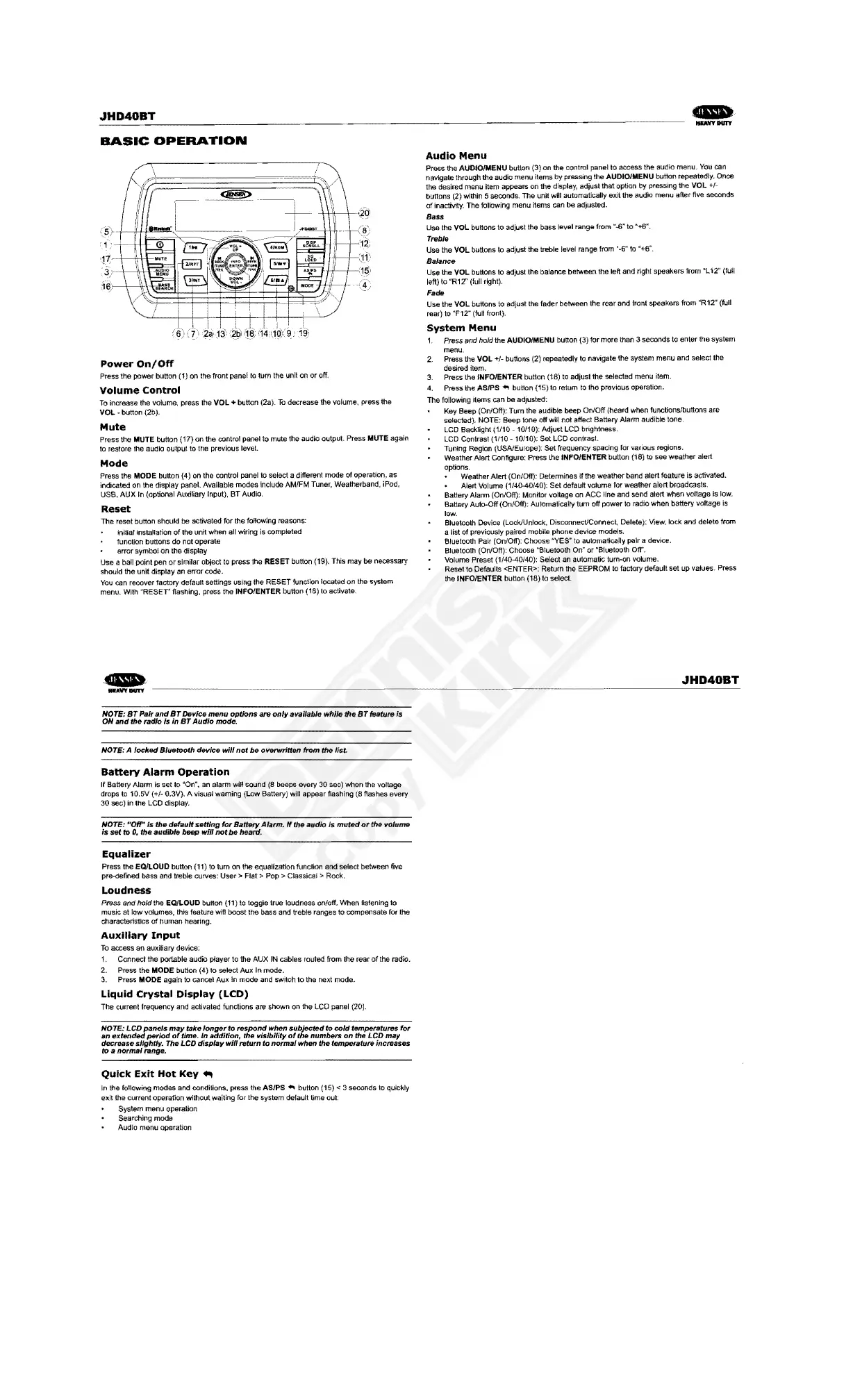

JHD40BT
BASIC
OPERATION
Power
On/Off
Press
the
power
button (1)
on
the
front
pane! to
tum
the unit
on
Of
oft
Volume
Control
To
increase
the volume, press the
VOL
+ button (2a).
To
decrease
the
volume, press
the
VOL"
button (2b).
Mute
Press the
MUTE
button
(17)
on
the
control panel
to
mute the
audio
output
Press
MUTE
again
to restore the audio
output
to
the previous level.
Mode
Press the
MODE
button (4) on the control panel
to
select a different
mode
of
operation,
as
indicated
on
the display panel. Available
modes
include
AM/FM
Tuner, Weatherband, iPod,
usa.
AUX
In (optional Auxiliary Input).
BT
Audio.
Reset
The reset button
shouJd
be
activated for
the
following reasons:
initial installation
of
the unit
when
all wiring is completed
function
buttons
do
not
operate
error
symbol
on
the
display
Use
a ball
point
pen
or
similar
object to
press
the
RESET
button (19). This
may
be
necessary
should
the
unit
display
an
error
code,
You
can
recover
factory
default
settings using the
RESET
function located on the
system
menu. With
"RESET"
flashing, press
the
INFO/ENTER
button (18) to activate,
Audio
Menu
Press
the
AUDIOIMENU
button {3}
on
the
control panel
to
access
the
audio menu, You
can
navigate through
the
audio
menu
items
by
pressing
the:
AUDIOJMENU button repeatedly. Once
the
desired
menu
item
appears
on
the
display, adjust
that
option
by
pressing
the
VOL
+1-
buttons (2) within 5 seconds.
The
unit will automatically
exit
the
audio
menu
after five
seconds
of inactivity.
The
following
menu
items can
be
adjusted.
Bass
Use
the
VOL
buttons
to
adjust the bass level
range
from
u..s~
to
"+6",
Treble
Use
the
VOL
buttons to
adjust
the
treble level range from
"~6"
to
~+6".
Balance
USEI'
the
VOL
buttons to adjust the balance
between
the left
and
right speakers from "L 12" (fUll
left) to "R12" (full right).
Fade
Use
the
VOL
buttons to adjust the
fader
between
the
rear and front speakers
from
"R12" (fuil
rear)
to
'F12"
(full front),
System
Menu
1,
Press
and
hold
the
AUOI01MENU button (3)
for
more
than 3
seconds
to
enter
the
system
menu.
2.
Press
the
VOL
+1-
buttons (2) repeatedly to
navigate
the
system menu and select the
desired item.
3. Press the
tNFOIENTER
button (18)
to
adjust the selected menu item.
4,
Press
the
ASIPS
..
button (1S)
to
return to the
previous
operation.
The
following items
can
be
adjusted:
Key
Beep
(On/Off): Turn the audible
beep
On/Off
(heard
when
functions/buttons
are
selected),
NOTE:
Beep
tone
off
will
not
affect
Battery
Alarm audible
tone
LCD Backlight
(1/10
-10110):
Adjust
LCD
bnghtness.
LCD Contrast (1/10 -
10/10);
Set
LCD
contrast.
Tuning Region (USA/Europe):
Set
frequency
spacing
Jar
various reglons.
Weather
Alert Configure: Press the
INFO/ENTER
button (18) to
see
weather
alert
options.
Weather
Alert (On/Off): Determines
if
the
weather
band
alert
feature
is
activated.
A!ert Volume
(1/40-40/40):
Set
default
volume
for
weather
alert
broadcasts.
Battery
Alarm
(On/Off): Monitor voltage on
ACC
line
and
send
alert
when
vottage
is
low,
Battery
Auto-Off
(On/Off): Automat!calty turn
off
power
to
radio
when
battery
voHage
is
low.
Bluetooth Device (LockJUnloc:k, DisoonnectJConnect, Delete); View.
lock
and
delete
from
a list
of
previously paired mobile
phone
device
models,
Bluetooth Pair (On/Off):
Choose
"YES"
to
automatically paIr a device.
Bluetooth (On/Off):
Choose
"Bluetooth
On"
or
"Bluetooth Off'.
Volume Preset
(1/40-40/40): Select an automatic turn-on volume.
Reset
to
Defaults <ENTER>: Return the
EEPROM
to factory
default
set
up
values. Press
thelNFO/ENTER
button (18) to select.
~
JHD40BT
~VY~
------------------
--,--,--
..
~------------~
....
----------------------,---,--
---~-,---------------'--------------------------
NOTE:
8T
Pair
and
8T
DeviCe
menu
options
are
only
available
while
the
8T
feature
is
ON
and
the radio
1$
in
ST
Audio
mode.
NOTE: A
locked
Bluetooth
device will
not
be
overwritten
from the list.
Battery
Alarm
Operation
If
Battery
Alann
is
set
to
SOn",
an alarm will sound (8 beeps every 30 sec)
when
the
voltage
drops
to
10,5V (+/-
O.3V).
A visual
warning
(LOW
Battery) will
appear
flashing
(8
flashes
every
30 sec) in the
LCD
display.
NOTE:
"()ff"
is
the
default
setting
for
Battery
Alarm. " the
audio
is
muted
of
the
volume
I.
set
'"
O.
the
au_
beep
will
not
be
he"';.
Equalizer
Press
the
EQ/LOUD
button (11) to
rum
on
the equalization function
and
setect between live
pre-defined
bass
and
trebte curves:
User>
Flat>
Pop>
Classical>
Rock,
Loudness
Pta.s
and
hold
the
EQILOUD
button (11)
10
toggle true
loudness
on/off.
When
listening to
music
at
low
volumes,
thts feature will
boost
the
bass
and
treble ranges
to
compensate
for the
characteristics
of hUman hearing.
Auxiliary
Input
To access
an
auxiliary devk:e;
1,
Connect
the
portable
audio
pCayer
to
the
AUX
IN
cables
routed from the rear
of
the radio.
2. Press the
MODE
button (4)
to
select Aux
In
mode.
3. Press MODe
again
to
cancel
Aux
!n
mode
and switch
to
the next mode.
liquid
Crystal
Display
(LCD)
The
current
frequency
and activated functions are
shown
on
the LCD panel (20).
NOTE:
LCD
panels
may
take
longer
to
respond
when
subjected
to
cold
temperatures
for
an
extended
period
of
time.
In
addition,
the
visibility
of
the
numbers
on
the
LCD
may
decrease sJlghtly. The LCD
display
will
return
to
normal
when the temperature increases
to
a
normal
mnge.
Quick
Exit
Hot
Key
..
In
the
following
modes
and conditions. press
the
ASJPS
~
button
(15)
<:
3 seconds
to
quickly
exit
the
current
operation
without
waiting for the
system
default time out:
menu
operation
mode
Audio
menu
operation
