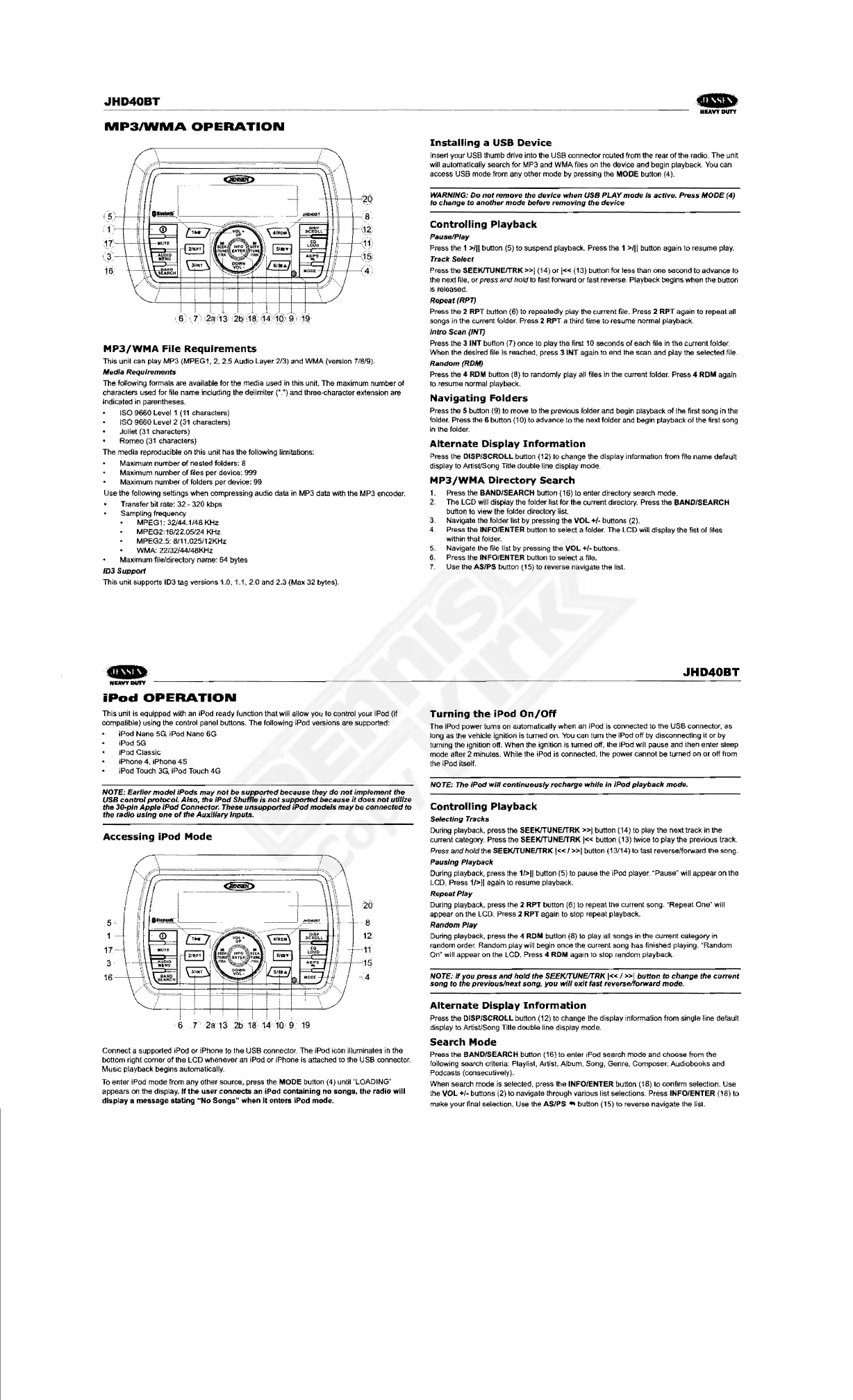

.JHD40BT
MP3IWMA
OPERATION
MP3/WMA
File
Requirements
This unit can play
MP3
(MPEG1, 2, 2.5 Audio Layer
213)
and
WMA
(version 7/819).
Media Requirements
The
f~lowing
formals are availabre for the media used in this unit. The maximum number of
characters
used
for file
name
including
the
delimiter r
")
and
three-character extension
are
indicated in parentheses.
ISO
9660
Levell
(11
charaetem)
ISO
9660
Level 2 (31 characters)
Joliet
(31
characters)
Romeo
(31
characters)
The media reproducible
on
this unit has the following limitations:
Maximum number
of
nested folders: 8
Maximum number
of
fries per device: 999
Maximum number
of
folders per device: 99
Use the following settings when compressing audio data in MP3 data with the MP3 encoder.
Transfer
bit
rate: 32 - 320
"bps
Sampling lrequency
MPEG1: 32/44.1148
KHz
MPEG2:16122.05124
KHz
MPEG2.5: 8/11.025112KHz
WMA: 22/32/44148KHz
Maximum
file/directory name: 64 bytes
IDJSupport
This unit supports
103
tag versions 1.0.
1.1,2.0
and 2.3 (Max
32
bytes).
"IAnDUTY'
Installing
a USB
Device
insert your USB thumb drive into the USB connector routed from the rear
of
the
radh
The
unit
will automatically search for MP3 and
WMA
files on the device and begin playback. You can
access USB mode from any other mode
by
pressing the MODE button (4).
WARNING: Do
not
remove the device when USB PLAY mode Is active,
Pres.
MODE (4)
to change
to
another
mode
before removing the device
Controlling
Playback
PauseIPlay
Press the 1
>/11
button (5)
to
suspend playbaclc
Presstha
1
>111
button again
to
resume play.
Track Select
Press tha SEEKITUNEfTRK
»1
(14)
or
1«
(13) button for less than one second
to
advance to
the next file.
or
press and hold to fast forward
or
fast reverse. Playback begins when the button
is released.
Repeat (RPT)
Press the 2 RPT button (6) to repeatedly play the current file. Press 2 RPT again to repeat all
songs in
the
current
foldEn'.
Press 2
RPT
a third time
to
feSUme
normal playback.
Intra
Scan (INT)
Press the 31NT button (7) once to play the first 10 seconds
of
each file in the current folder,
Woon the desired file Is reached, press 31NT again to end the scan and play too selected file.
Random (RDM)
Press the 4 RDM button (8}
to
randomly play all files in
the
current folder. Press 4 ROM again
10
resume normal playback.
Navigating
Folders
Press the 5 button (9) to move to the previous folder and begin playback of the first song in the
folder. Press the 6 button (10) to advance to the next folder and begin playback
of
the first song
in the foldeL
Alternate
Display
Information
Press tha DtSPISCROLL button (12)
to
change the display information from file name default
display
to
ArtistlSong Title double line display mode.
MP3/WMA
Directory
Search
1.
Press the BAND/SEARCH button (16) to enter directory search mode.
2. The LCD will display the folder list
for the current directory. Press the
BAND/SEARCH
button to view the folder directory list.
Navigate the folder list
by
pressing the
VOL
+/~
buttons (2).
4.
Press
thelNFOIENTER
button to select a folder. The LCD will display the list
of
files
within that folder'.
5. Navigate the file list
by
pressing the
VOL
+1
..
buttons,
6. Press the INFO/ENTER button
to
select a flle.
7.
Use the ASIPS button
(15)to
reverse navigate the list,
.JHD40BT
N~DmY
---------------------------------''---------~.~---------------------------.".""--,,.""------------------------------
iPod
OPERATION
This unit is equipped with an iPod ready function that will allow you to control your iPod (if
compatible) using the control panel buttons, The following iPod versions are supported:
iPod Nono
5G,
iPod Nono
6G
'Pod
5G
iPod Classic
iPhone
4. iPhone
48
iPod Touch
3<3,
iPod Touch
4G
NOTE: Earlier
model
IPods
may
not
be
supported
because
they
do
not
Impfement the
USB
control
protocol.
Also.
the
iPod
Shuffle
is
not
supported
because
it
does
not
utilize
the JII-pln
Apple
iPod Connector. These unsupP<JT!ed IPod
models
may
be
connected to
the
radio
using
one
of
the
Auxiliary
Inputs.
Accessing
jPod
Mode
6 7
2a13
2b
18
1410
9.
19
Connect a supported
iPOd
or IPhone to the USB connector. The lPod icon illuminates in the
bottom right comer
of
the LCD whenever an iPod or iPhone is attached to the
USB
connector.
MUSIC
playback begins automatically.
To
enter iPod mode from
any
other source, press the MODE button (4) until "LOADING"
appears on the display.
If
the
user
connects
an
iPod
containing
no
songs,
the
radio
will
display
a
message
stating
"No
Songs"
when
it
enters
iPod
mode.
Turning
the
iPod
On/Off
The
iPod power tums
On
automatically when an iPod is connected to
the
USB
connector, as
long as the vehicle Ignition is tumed on.
You
can turn
the
IPod
off
by
disconnecting
it
or
by
turning the ignition off, When the ignition is turned off, the iPod wilt pause and then enter steep
mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from
the iPod itself.
NOTE; The
iPod
will
continuously
recharge
while
In
iPod
playback
mode.
Controlling
Playback
Selecting T",cKs
DUling playback, press tha SEEKITUNEfTRK »1 button (14) to play tha next track in the
currenl category. Press the SEEKITUNEITRK
1«
button (13) twice to play the previous Iraeil.
Press
and
hold
the SEEKITUNEfTRK 1«I
»1
button
(13114)lolast
reverselforward the song.
Pausing Playback
During playback, press the
1/>11
button (5) to pause the iPod player.
~Pause"
will appear on the
LCD. Press
1/>11
again to resume playback.
Repeat
Play
During playback, press the 2 RPT button (6) to repeat the current song. "Repeat One
H
will
appear on the LCD. Press 2
RPT
again to stop repeat playback.
Random Play
During playback, press the 4 ROM button (8) to play all songs in the current category in
random order. Random play wi!! begin once the current song
has
finished playing.
~Random
On" will appear on the LCD, Press 4 ROM again to stop random playback.
NOTE:
"you
pres.
and
hold
the SEEKlTVNElTRK 1« f
»1
button
to change the
current
song
to the previous/next song.
you
will
exit
fast reverse/folWsrd mode.
Alternate
Display
Information
Press the OISP/SCROLL button (12) to change the display information from single line default
display to Artist/Song
TiUe
double line display mode.
Search
Mode
Press the BANDISEARCH button (16)
to
enter IPod search mode and choose from the
following search criteria: Playlist, Artist. Album, Song, Genre, Composer. Audiobooks and
Podcasts (consecutively).
When search mode is selecled, press the INFO/ENTER button (18)
to
confirm select!on,
Use
the
VOL
+/. buttons (2) to navigate through various list selections. Press INFOIENTER (18)
to
make your final selection. Use the AS/PS
<trill
button (15)
to
reverse navigate the
list
To Next Page
