6

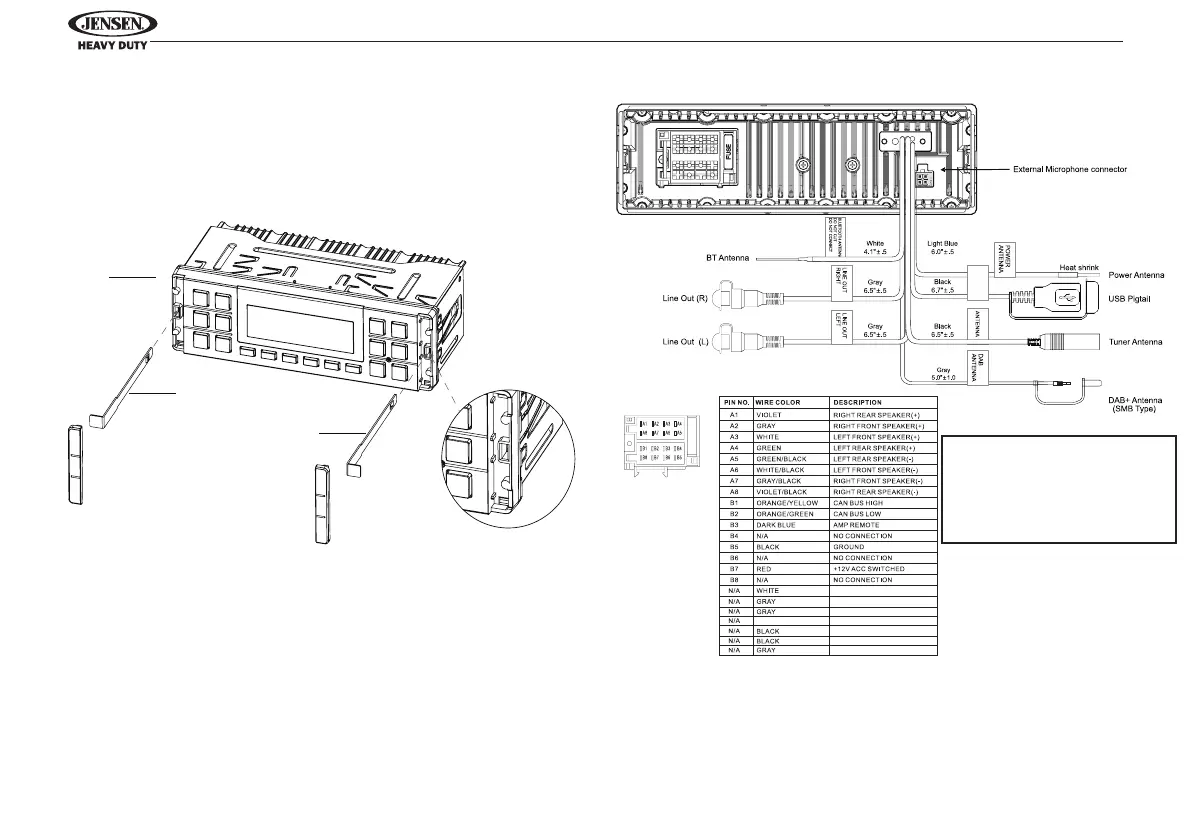

Removing the Unit
To remove the radio after installation, remove the plastic end
caps, insert the removal keys straight back until they click,
and then pull the radio out. If removal keys are inserted at an
angle, they will not lock properly to release the unit.
Sleeve
Removal Key
Removal Key
Reconnect Battery
When wiring is complete, reconnect the battery negative
terminal.
WIRING
DETAILA
SHOWN FROM WIRE
INSERTION VIEW
BT ANTENNA
DAB + ANTENNA
FUSE 15A
LINE OUT (R)
LINE OUT (L)
LIGHT BLUE POWER ANTENNA
USB PIGTAIL
TUNER ANTENNA
WARNING!
Do not connect the +12VDC ACC
switched wire to the battery.
This wire MUST be connected to
the Accessory/Ignition wire or a
+12-volt switched power source.
To Next Page
