WIRING

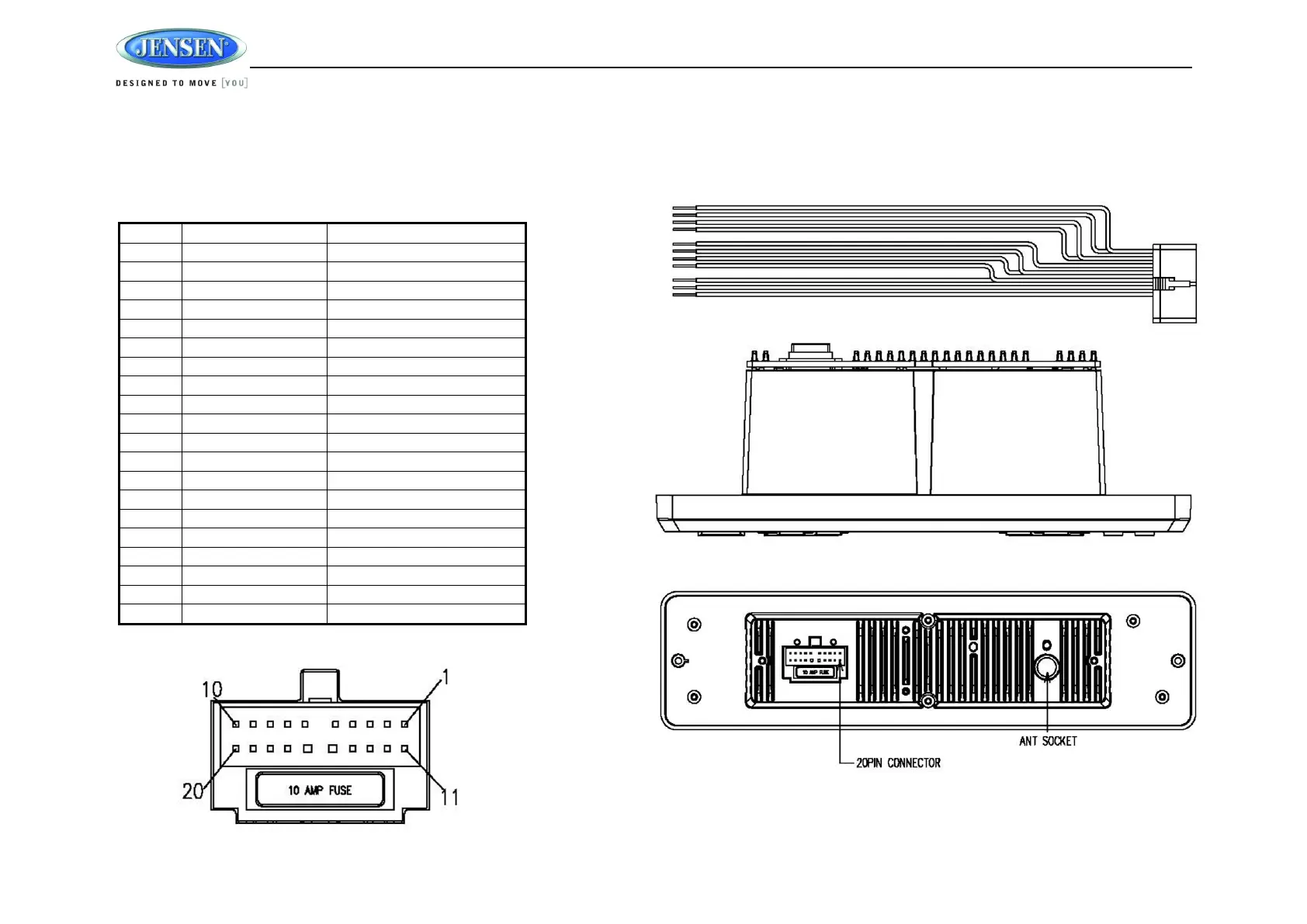

The wiring diagram depicts all the wiring connections required for proper operation of the unit.
DETAIL A
SHOWN FROM PIN VIEW
PIN NO. WIRE COLOR FUNCTION (Label Contents)
1 N/A N/A
2 N/A N/A
3 N/A N/A
4 N/A N/A
5 N/A N/A
6 GRAY RIGHT(A) SPEAKER(+)
7 GRAY/BLACK RIGHT(A) SPEAKER(-)
8 N/A N/A
9 WHITE/BLACK LEFT(A) SPEAKER(-)
10 WHITE LEFT(A) SPEAKER(+)
11 N/A N/A
12 N/A N/A
13 N/A N/A
14 BLUE AMP REMOTE(+12VDC 100MA)
15 RED +12VDC SWITCHED
16 BLACK GROUND
17 VIOLET RIGHT(B) SPEAKER(+)
18 VIOLET/BLACK RIGHT(B) SPEAKER(-)
19 LIGHT GREEN/BLACK LEFT(B) SPEAKER(-)
20 LIGHT GREEN LEFT(B) SPEAKER(+)
