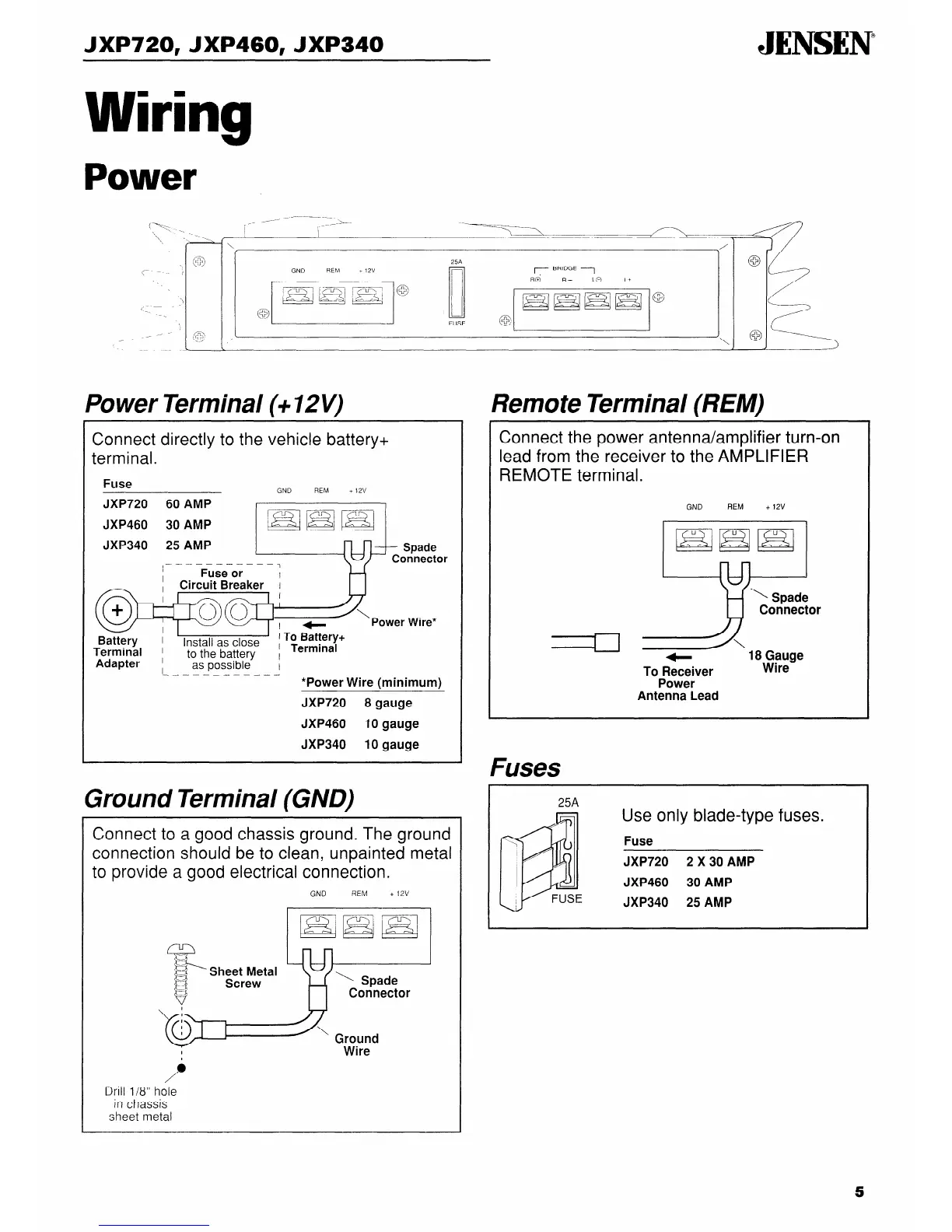

JXP720, JXP460, JXP340
JENSEN
Wiring
Power
Power Terminal (+ 12V)
Connect directly to the vehicle battery+
terminal.
Fuse
GND
REM + IN
JXP720 60 AMP
JXP460 30 AMP
/Bi
JXP340 25 AMP
Spade
Connector
-----------1
Power Wire*
------------
*Power Wire (minimum)
JXP720 8 gauge
JXP460 10 gauge
JXP340 10 gauge
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
F
-3
Sheet Metal
v
Screw
_-
GND
REM
+ 18
Drill l/8” hole
in chassis
sheet
metal
Remote Terminal (REM)
Connect the power antenna/amplifier
turn-on
lead from the receiver to the AMPLIFIER
REMOTE terminal.
GND
To Receiver
Power
Antenna Lead
Wire-
Fuses
25A
Use only blade-type fuses.
Fuse
JXP720 2 X 30 AMP
JXP460 30 AMP
IFUSE
JXP340 25 AMP
5
