JXP720, JXP460, JXP340
JENSEN

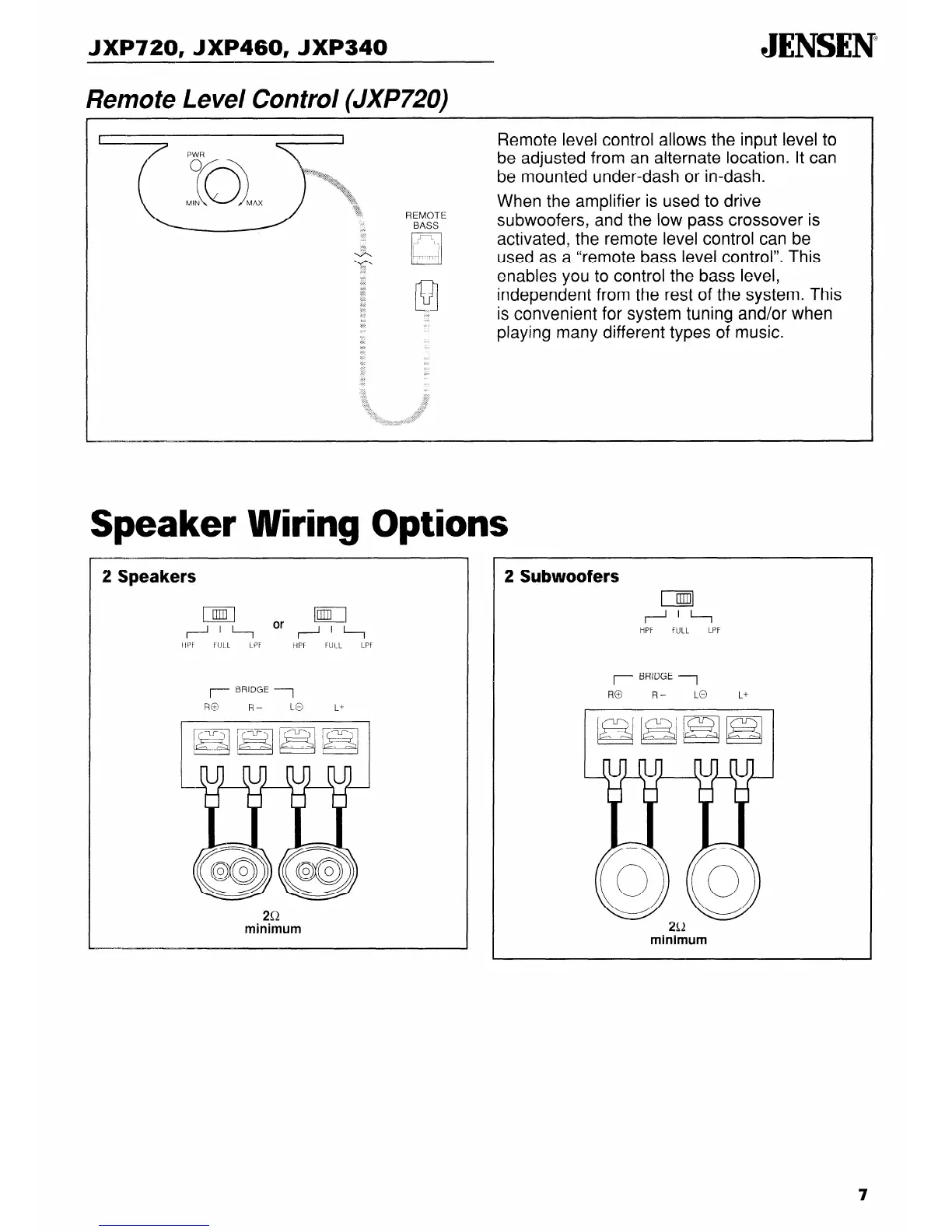

Remote Level Control (JXP720)
REM01
BASS
@I
Remote level control allows the input level to
be adjusted from an alternate location. It can
be mounted under-dash or in-dash.
When the amplifier is used to drive
subwoofers, and the low pass crossover is
activated, the remote level control can be
used as a “remote bass level control”. This
enables you to control the bass level,
independent from the rest of the system. This
is convenient for system tuning and/or when
playing many different types of music.
Speaker Wiring Options
2 Speakers
ml
ml
4”--l
Or ~“----I
IIPF FIJImL LPF
HPF FULL
LPF
r---- BRIDGE 1
RO
R- LO
L+
I
1
2cl
minimum
2 Subwoofers
1
+“----I
HPF FULL
LPF
2Ll
minimum
