JXP680
Bass
BASS
3 5
0
BASS increases the volume of the
bass at 45Hz by up to 12 db.
Use very carefully!
“OS 1268
2CH / 3CH / 4CH

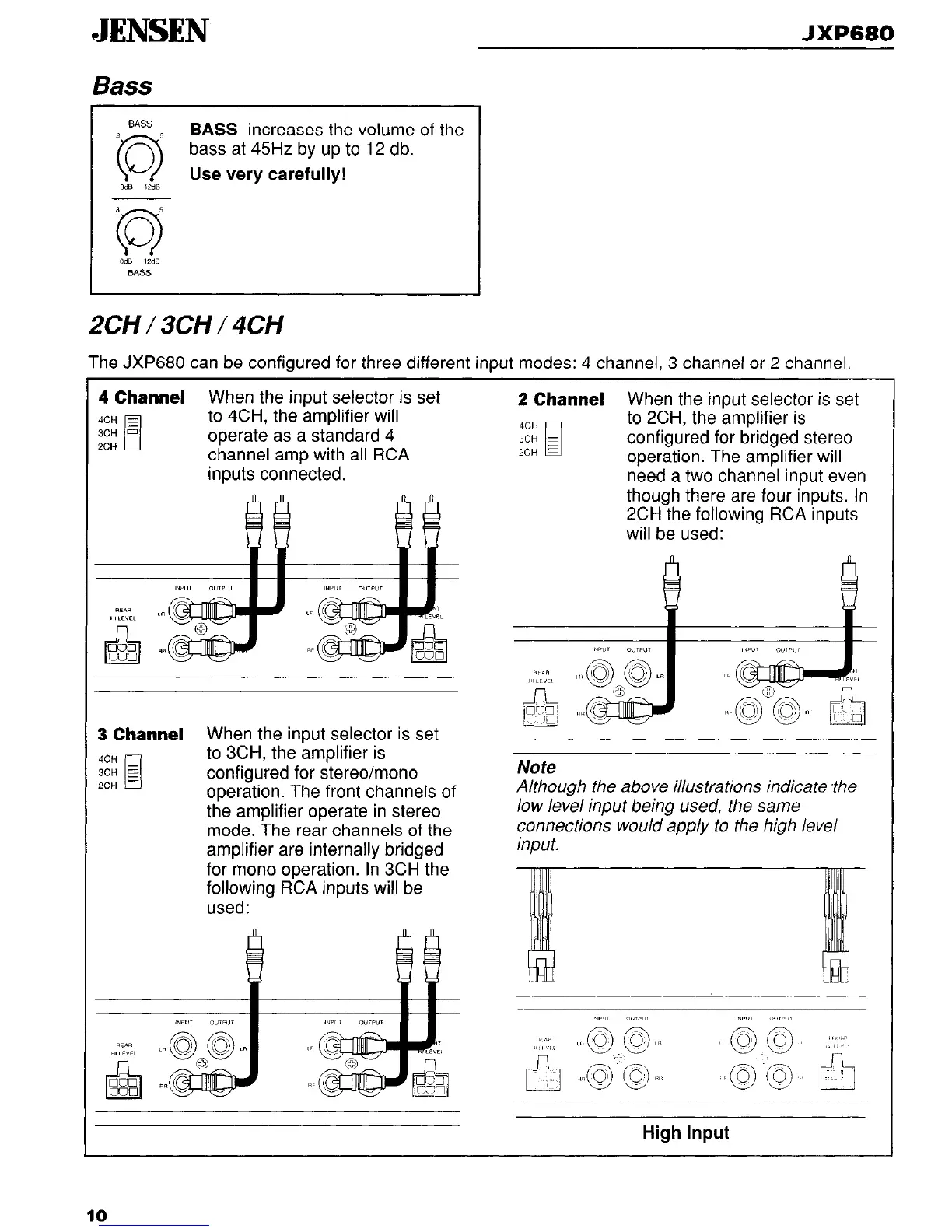

The JXP680 can be configured for three different input modes: 4 channel, 3 channel or 2 channel.
4 Channel
When the input selector is set
4CH
c
R
to 4CH, the amplifier will
3CH
2CH
operate as a standard 4
channel amp with all RCA
inputs connected.
3 Channel
When the input selector is set
to 3CH, the amplifier is
configured for stereo/mono
operation. The front channels of
the amplifier operate in stereo
mode. The rear channels of the
amplifier are internally bridged
for mono operation. In 3CH the
following RCA inputs will be
used:
-
-
2 Channel
When the input selector is set
4CH
n
to 2CH, the amplifier is
3CH
R
configured for bridged stereo
2CH
operation. The amplifier will
need a two channel input even
though there are four inputs. In
2CH the following RCA inputs
will be used:
Note
Although the above illustrations indicate ,the
low level input being used, the same
connections would apply to the high level
input.
High Input
10
