Jensen MS30 - Wiring Diagram; Wire Color Guide; Red Wire Connection Note

MS30
5

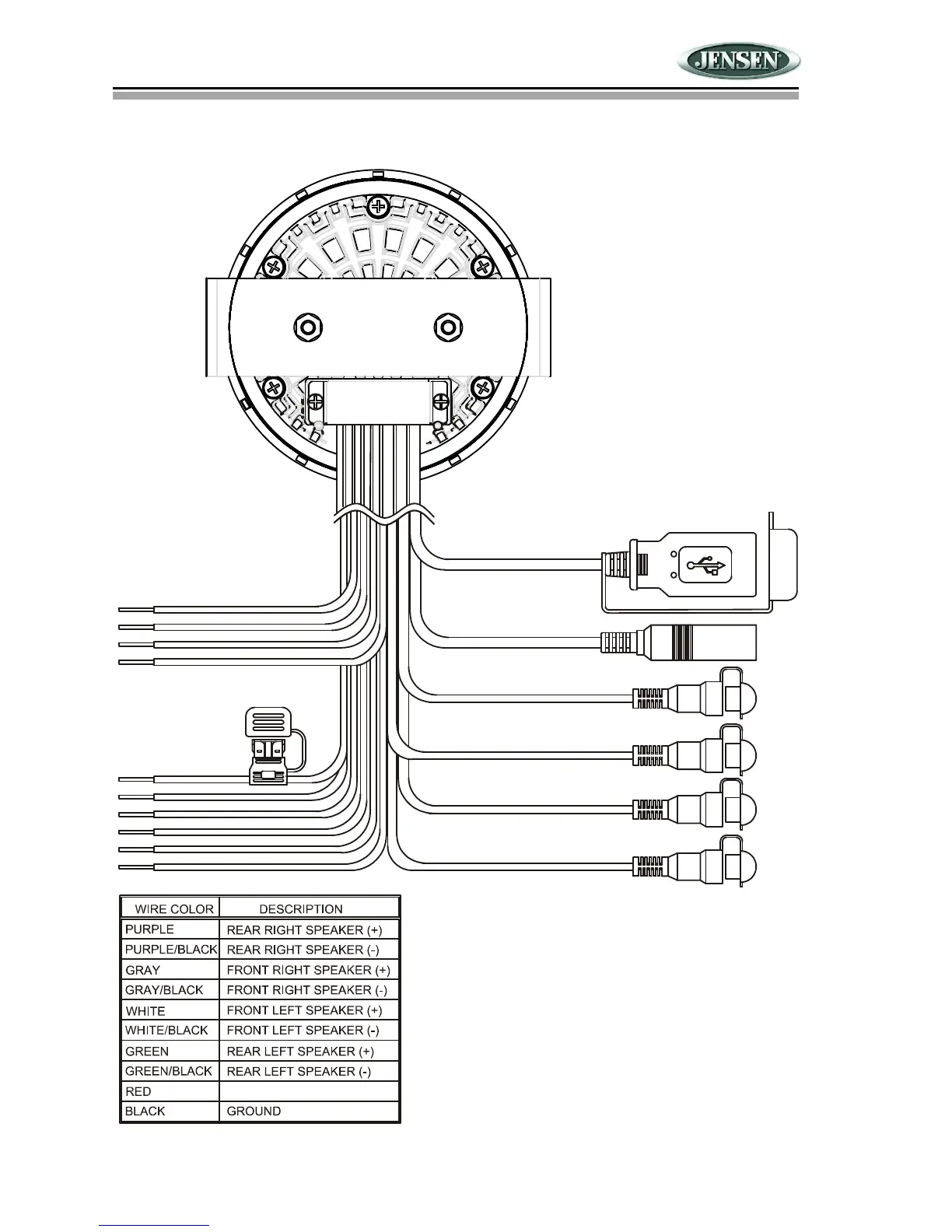

Wiring Diagram
USB Connector
Black
Black
Yellow
Yellow
LINE OUT RIGHT (red)
LINE OUT LEFT (white)
AUX IN RIGHT (red)
AUX IN LEFT (white)
ANTENNA
Grey
Grey
10AMP
Type ATO Fuse
+12 VDC SWITCHED
NOTE: Do not connect the red wire to
a constant power connection. The
red wire should be connected to a
vehicle connection with switched
power, such as IGN or ACC.
