Jensen VM9226BT User Manual

6
VM9226BT

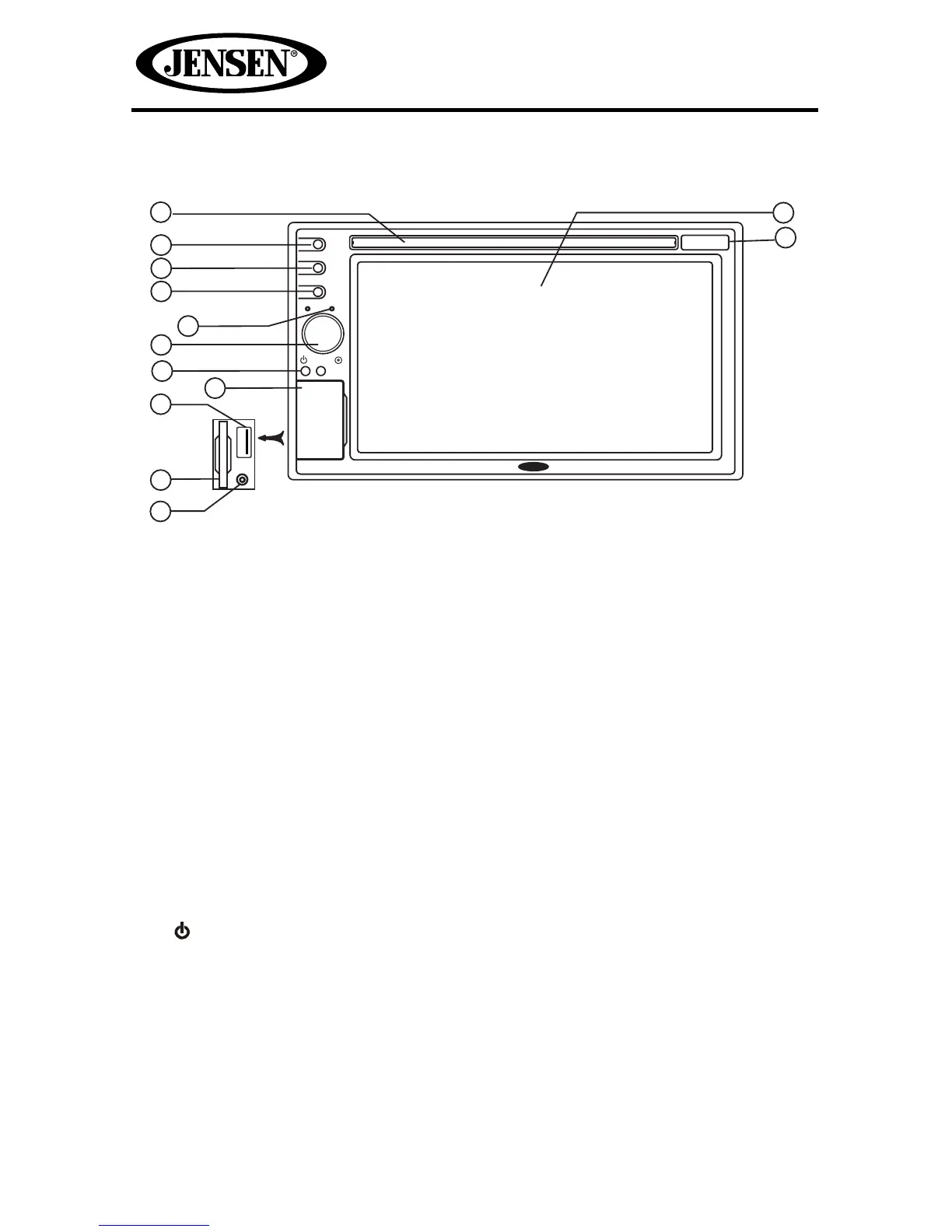

CONTROLS AND INDICATORS
EQ
SRC
EJECT
OPE N
1
2
3
4
5
6
7
8
9
10
11
12
13
VM9226BT
SD CARD
AV INPUT
1. Disc Slot
2. EJECT Button
Press to eject a disc.
3. SRC Button
Press to switch between the
available audio/video sources
applied to the unit.
4. NAV Button
Press to toggle back and forth
between the navigation and
currently selected source.
5. Reset Button
Press to reset system settings to
factory default (except password
and parental lock settings).
6. Rotary Encoder / Power On/O
( ) Button
Rotate to adjust the volume. Press
momentarily to activate the MUTE
function. Press again to resume
normal listening.
Press to turn the unit ON. Press and
hold to turn the unit OFF.
7. Remote Sensor
8. USB/SD/AV Interface Connector
Cover
9. USB Interface Connector
Connect a USB device for playback
of music/video les.
10. SD Interface Connector
Insert an SD card for playback of
music/video les.
11. A/V Input
Accepts a 3.5 mm jack through
which signals from various audio/
video devices can be applied to
the unit.
12. TFT Display
13. Map Cover
Covers the Mini SD card slot.
The Mini SD card is used for the
Navigation Map only, not for music
or other les. This may be used for
rmware updates if required.
