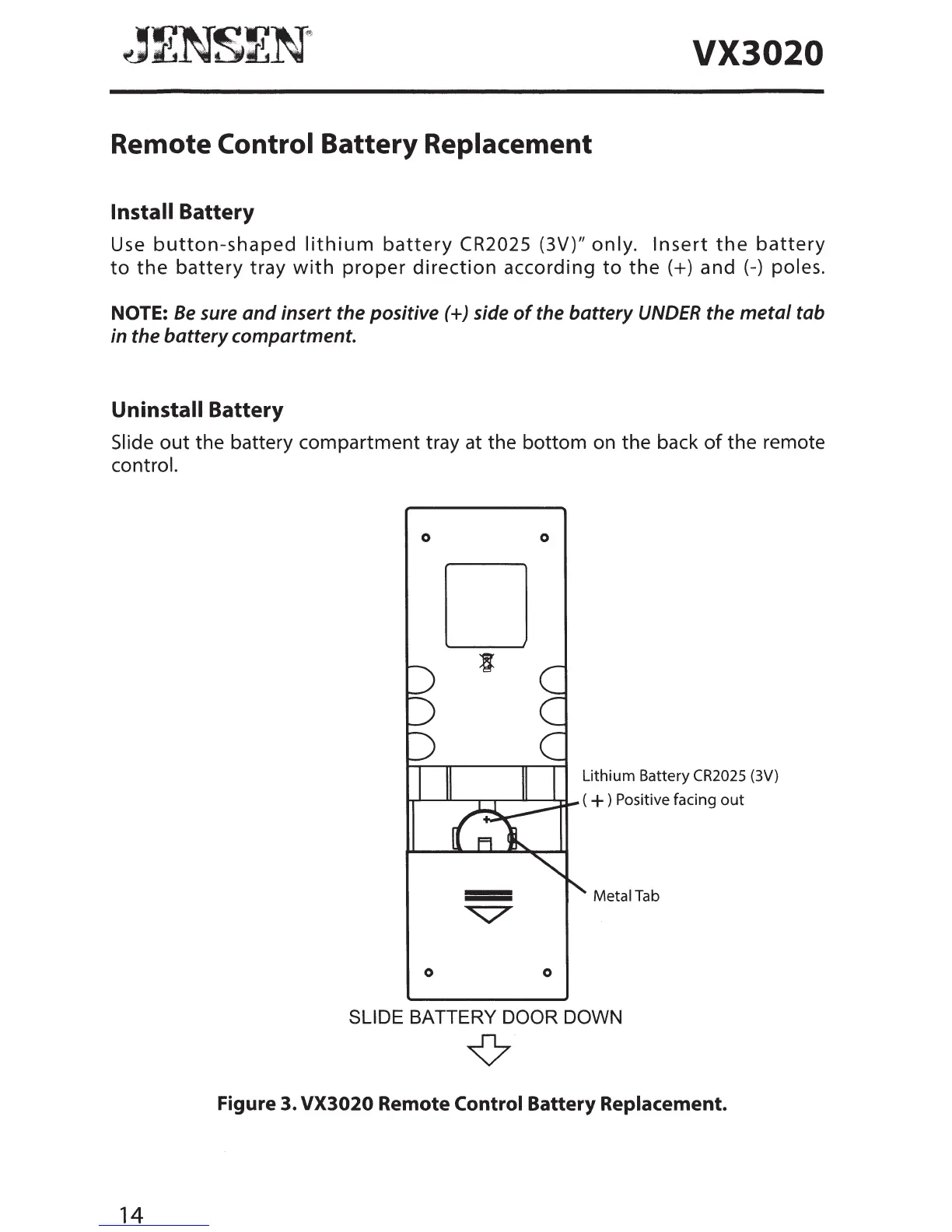

Jensen VX3020 - Remote Control Battery Replacement; Uninstall Battery

~~T~J?N·····.·•~·
6 JUl ~ i:Y6.1LJ >
VX3020
Remote Control Battery Replacement
Install Battery
Use button-shaped lithium battery CR2025 (3V)" only. Insert the battery
to the battery tray with proper direction according to the (+)and (-) poles.
NOTE: Be sure and insert the positive (+)side of the battery UNDER the metal tab
in the battery compartment.
Uninstall Battery
Slide out the battery compartment tray at the bottom on the back of the remote
control.
14
0
-
-
0
0
0
Lithium Battery CR2025 (3V)
( +) Positive facing out
Metal Tab
SLIDE BATTERY DOOR DOWN
v
Figure 3. VX3020 Remote Control Battery Replacement.
