Version 2017-01-19 for GI use

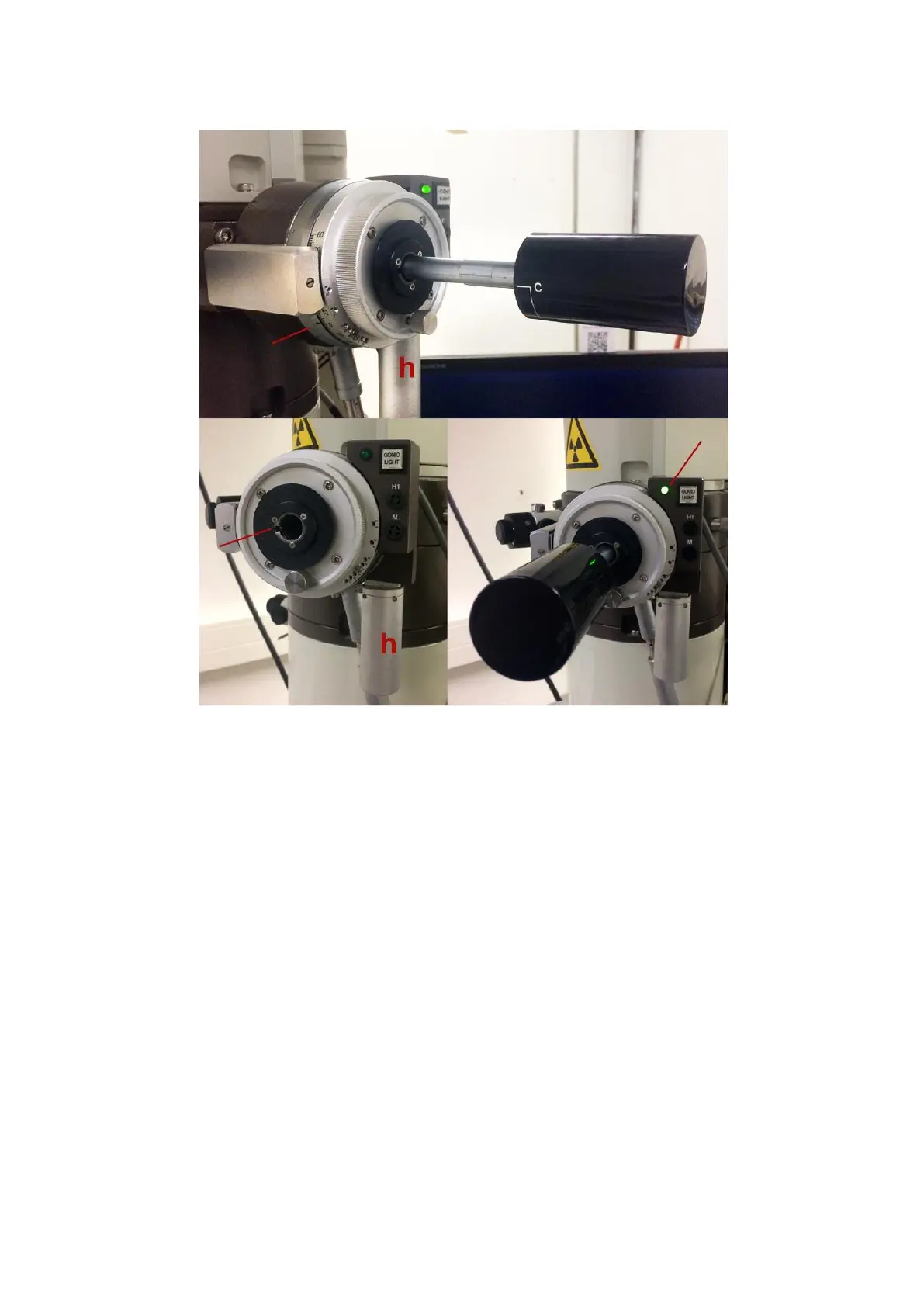

slightly). When ready, close this lock (lift h down to vertical position).
Align the pin of the grid holder with the slot (line above pointing to the slot) in the
goniometer. Gently press the grid rod straight into the opening. To make contact
press the rod cylinder (metal color in ours) with a flat hand palm: a green light lights
(line).
Wait until the green light goes off.
Without delay but slowly turn the rod one quarter clock-wise and slowly guide it into
the heart of the column. Do not release the holder until the rod is fully inserted.
