ADJUSTING THE TIMER
The timer is the brain of the dishwasher. It controls all the major components,
allowing them to perform their
necessary function at given times
during the length of the wash cycle.
The timer is located at the top, in the
control box, on the right. To get access
to the timer, you will need to unscrew
to top cover, and remove it. Make sure
the power is off at the breaker before
removing the top cover.

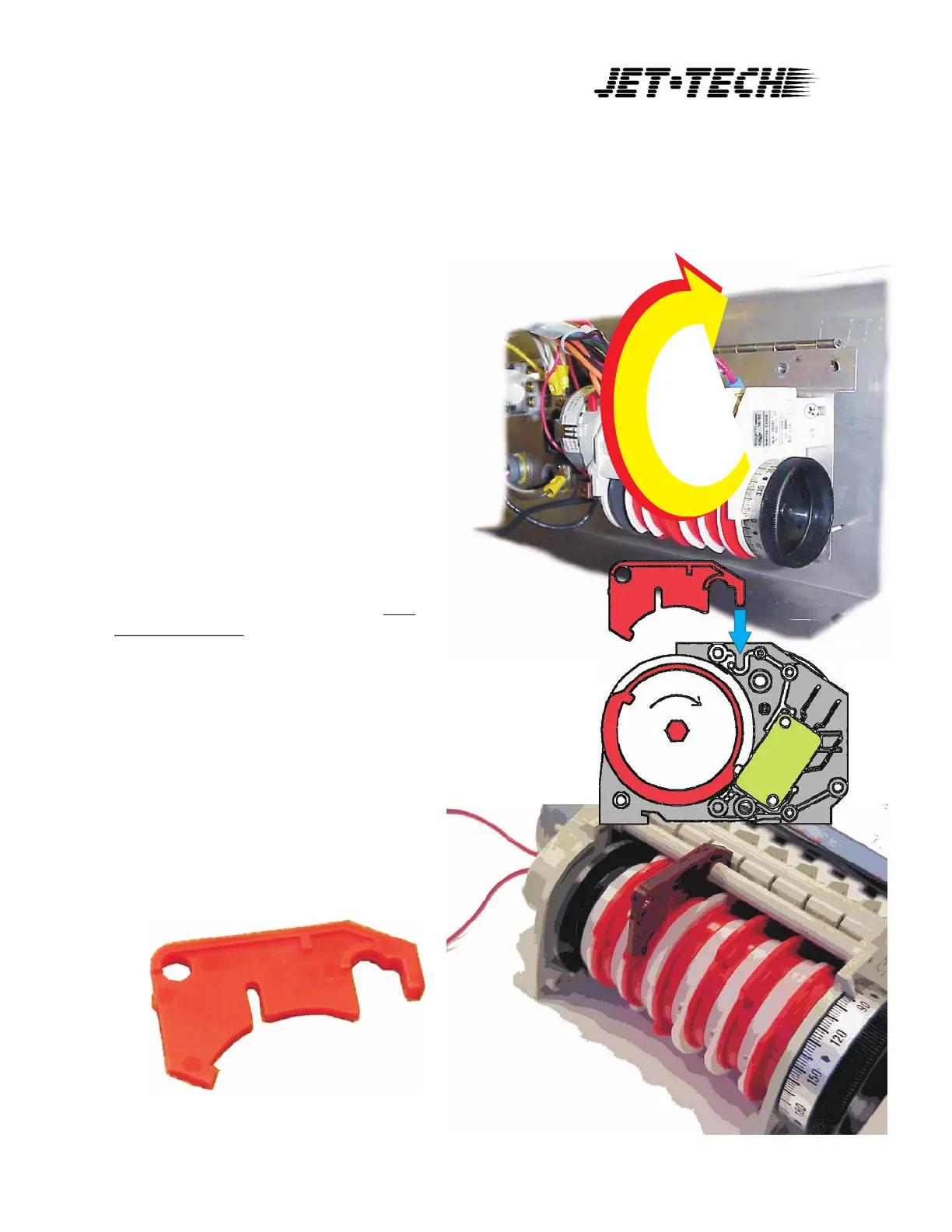

The timer is installed on a hinged
plate, allowing it to be move up for
better access. A small red, curved key
can be found attached to the timer.
Insert the key as shown in the picture,
and engage the tooth in the groove of
the wheel. Hold it down and turn the
dial in the direction of the arrow. It is
very important to turn the dial in the
direction of the arrow. If you try to turn
it the other way, you will feel some
resistence, and if you force it will break the internal
mechanism.
The numbers on the dial are degrees (0-360). Using the
plastic arrow on the dial, advance the wheel to the
desired place.
KEY
