42

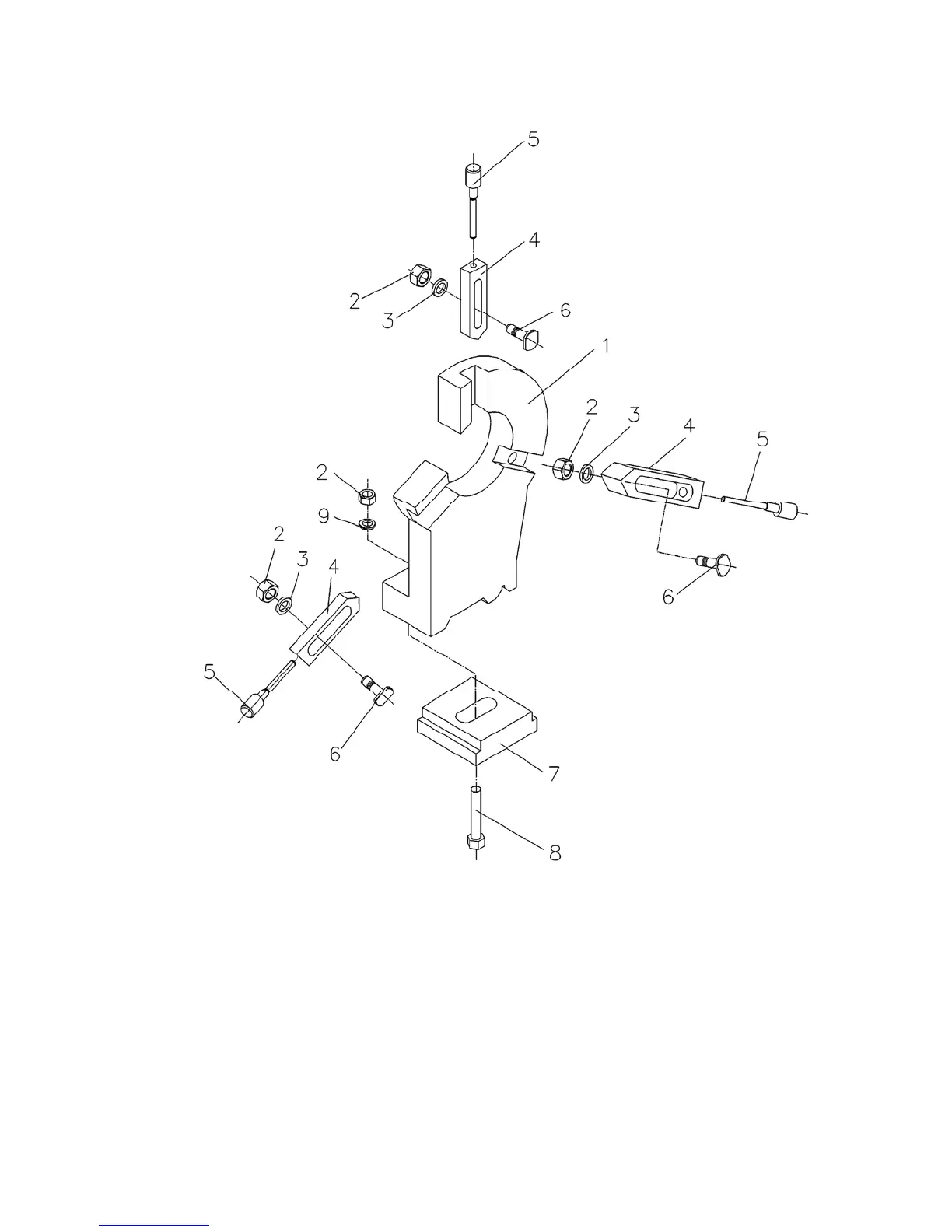

Steady Rest Assembly – Exploded View & Parts List
IndexNo. PartNo. Description Size Qty
.................. BD920N-SR .............. Steady Rest Complete (index nos. 1-9) ................... ...................................... 1
1 ................ F1001 ........................ Rest Casting ............................................................ ...................................... 1
2 ................ TS-1540061 .............. Nut ........................................................................... M8 ................................. 4
3 ................ TS-1550061 .............. Washer .................................................................... 8mm .............................. 4
4 ................ F1002 ........................ Jaw .......................................................................... ...................................... 3
5 ................ F1004 ........................ Adjusting Screw ....................................................... ...................................... 3
6 ................ F1003 ........................ Screw ....................................................................... ...................................... 3
7 ................ F1005 ........................ Clamping Plate ........................................................ ...................................... 1
8 ................ TS-1490091 .............. Hex Cap Screw ........................................................ M8x50 ........................... 1
9 ................ TS-1550061 .............. Washer .................................................................... 8mm .............................. 1
