Jet GH-1660ZX - Micro and Carriage Stop Assemblies

44

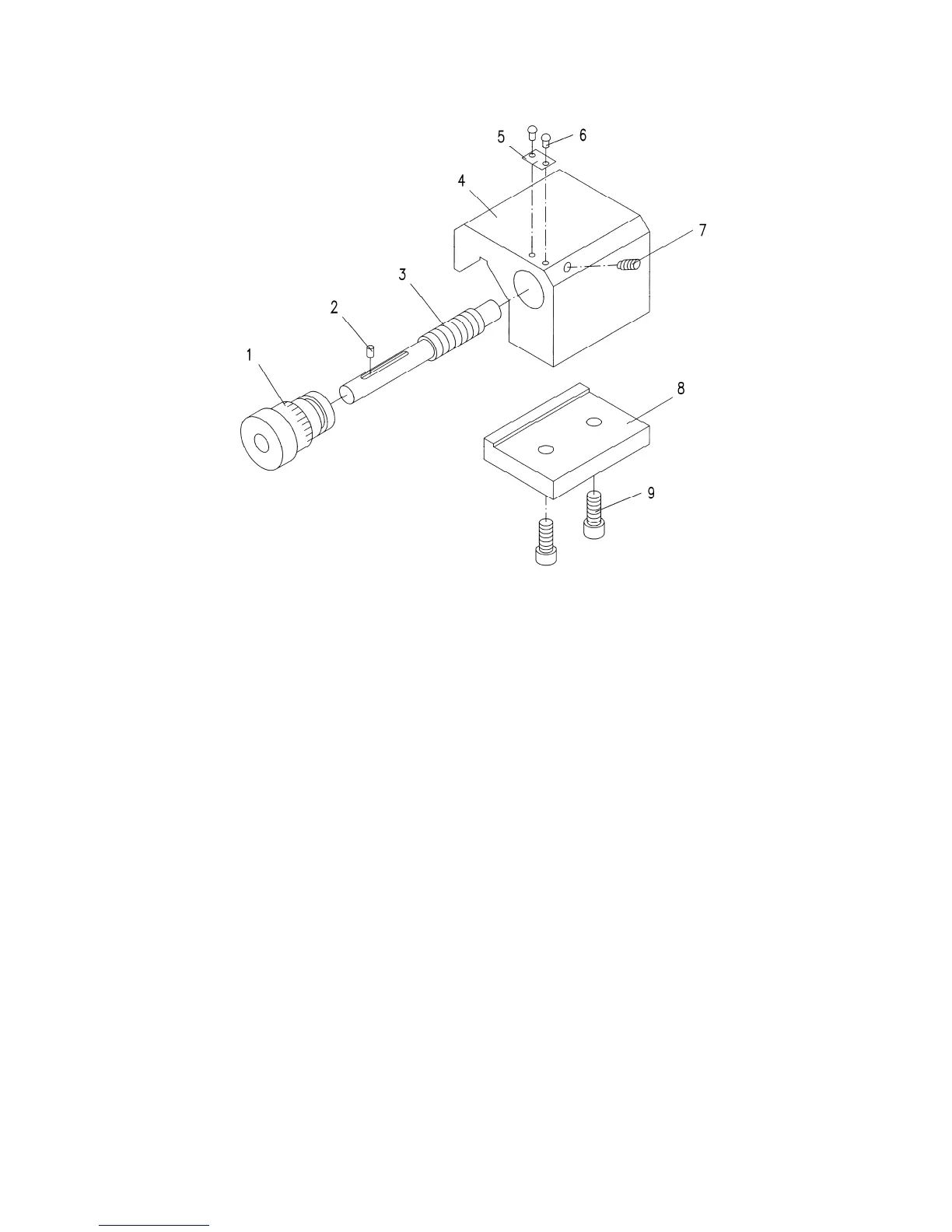

17.1 Micro Carriage Stop – Exploded View
17.2 Micro Carriage Stop – Parts List
Index No Part No Description Size Qty
1 .......... ZX-09709 ...................... Dial ....................................................................... .................................... 1
2 .......... ZX-MS2 ......................... Pin ........................................................................ B4x8 ............................ 1
3 .......... ZX-09708 ...................... Axle ...................................................................... .................................... 1
4 .......... ZX-09105-G .................. Stop ...................................................................... .................................... 1
5 .......... ZX-03302 ...................... Sign Plate ............................................................. .................................... 1
6 .......... ZX-MS6 ......................... Nail ....................................................................... 3x8 mm ....................... 2
7 .......... ZX-MS7 ......................... Hex Socket Set Screw ......................................... M6x12 ......................... 1
8 .......... ZX-09106 ...................... Clamping Plate ..................................................... .................................... 1
9 .......... ZX-MS9 ......................... Hex Socket Cap Screw ........................................ M8x20 ......................... 2
