Jet GH-1660ZX - Carriage Lubrication - Exploded View; Carriage Lubrication - Parts List

65

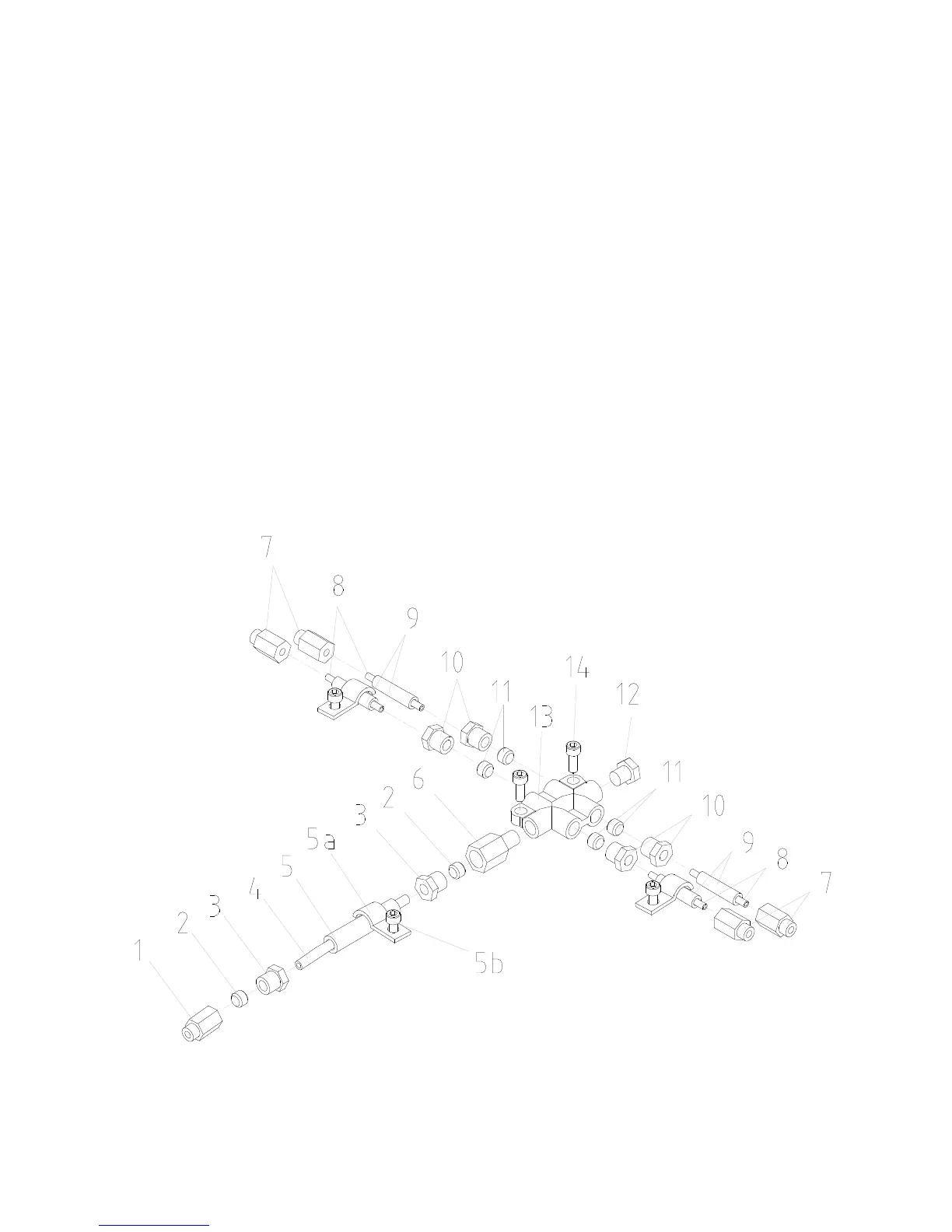

30.1 Carriage Lubrication – Exploded View
Index No Part No Description Size Qty
1 .............. ARM ......................... Valve Tie-in .......................................................... .................................... 1
2 .............. 206254 ..................... Clip Sleeve ........................................................... CS-6 ............................ 2
3 .............. 206252 ..................... Vitta Tie-in ............................................................ CB-6 ............................ 2
4 .............. CL-04 ....................... Nylon Pipe ............................................................ Φ6 mm ................. 0.4m
5 .............. CL-05 ....................... Spring Sleeve ....................................................... Φ6 mm ................. 0.2m
5a ............ PC-4-1 ...................... Nip ........................................................................ Φ4 mm ...................... 3
5b ............ GB70- M5×10 ......... Hex Socket Cap Screw ........................................ M5x10 ......................... 3
6 .............. 106095 ..................... Tie-in .................................................................... SA-4-6 ......................... 1
7 .............. CL-07 ....................... Tie-in .................................................................... KC-4 ............................ 4
8 .............. CL-08 ....................... Nylon Pipe ............................................................ Φ4 mm ................. 0.7m
9 .............. CL-09 ....................... Spring Sleeve ....................................................... Φ4 mm ................. 0.7m
10 ............ 106252 ..................... Vitta Tie-in ............................................................ CB-4 ............................ 4
11 ............ 106254 ..................... Clip Sleeve ........................................................... CS-4 ............................ 4
12 ............ 106255 ..................... Plug ...................................................................... CP-4 ............................ 1
13 ............ 106411 ..................... Connector ............................................................. PJ-6D .......................... 1
14 ............ GB70 M5×20 .......... Hex Socket Cap Screw ........................................ M5x20 ......................... 2
30.2 Carriage Lubrication – Parts List
(Note:This device is installed from serial #140925ZX2822)
