Jet GH-1660ZX User Manual

59

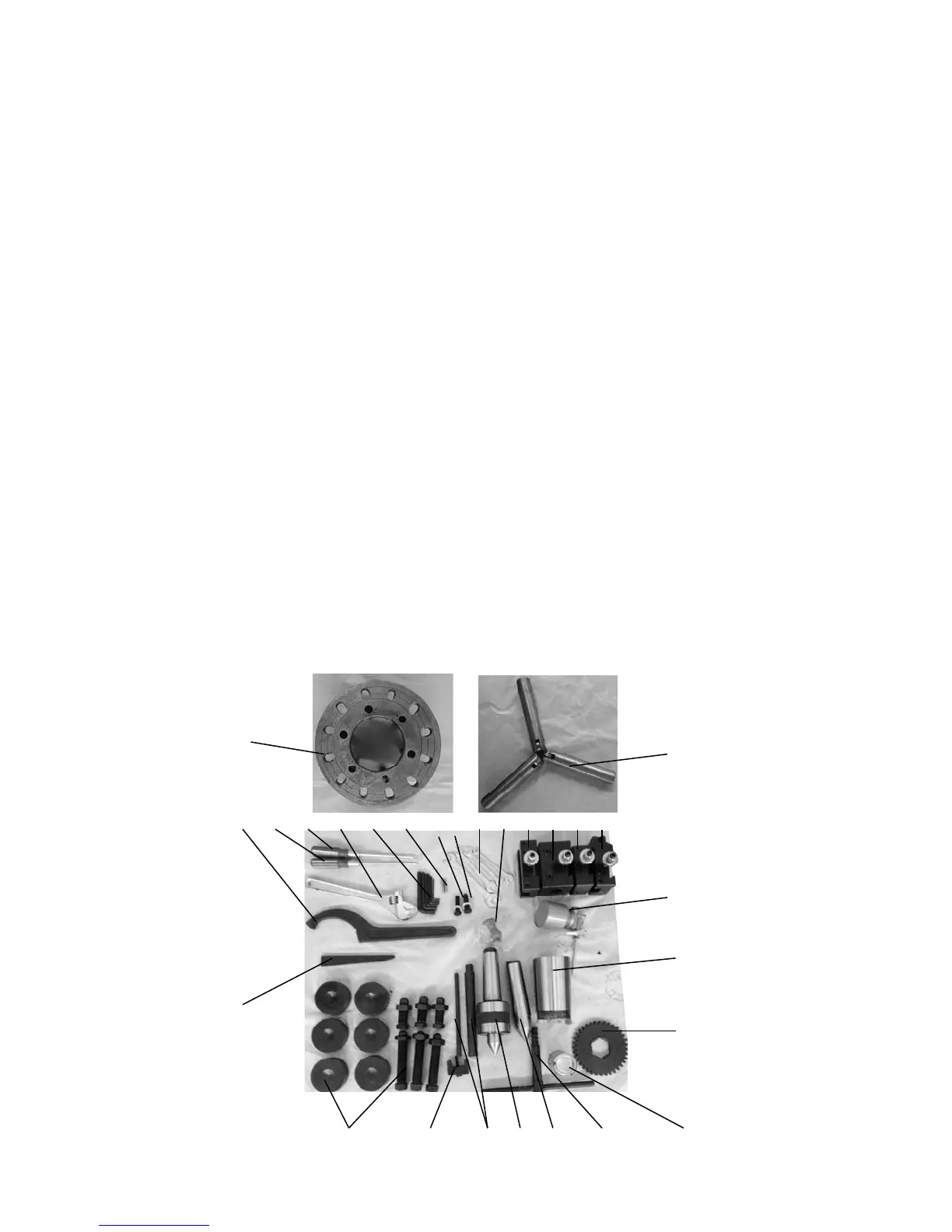

25.1 Other Parts
Index No Part No Description Size Qty
1A ........ ZX-OP-1A ...................... 3-Jaw Chuck (mounted on lathe) ......................... 10”, D1-8 ..................... 1
1B ........ ZX-OP-1B ...................... Chuck Wrench ...................................................... .................................... 1
3 .......... ZX-OP-03 ...................... 12” Face Plate (for 14”/16” models) ..................... .................................... 1
............ ZX-OP-03N ................... 16” Face Plate (for 18”/22” models) ..................... .................................... 1
5 .......... ZX-OP-05 ...................... Cam Tightening Wrench ...................................... .................................... 1
6 .......... ZX-OP-06 ...................... Center .................................................................. .................................... 1
7 .......... ZX-OP-07 ...................... MT-4 Live Center (for 14”/16” models) ................. .................................... 1
............ ZX-OP-07N ................... MT-5 Live Center (for 18”/22” models) ................. .................................... 1
8 .......... ZX-OP-08 ...................... Morse Reduction Sleeve ...................................... .................................... 1
9 .......... ZX-OP-09 ...................... Oil Gun ................................................................. .................................... 1
10 ........ ZX-OP-10 ...................... Touchup Paint Can ............................................... .................................... 1
11 ......... ZX-OP-11 ...................... Gap Bridge Pin Driver .......................................... .................................... 1
12 ........ ZX-OP-12 ...................... Hex Wrench ......................................................... 2,2.5,3,4,5,6,8,10 ........ 8
13 ........ ZX-OP-13 ...................... Double End .......................................................... .................................... 1
14 ........ ZX-OP-14 ...................... Flat Blade Screw Driver ....................................... .................................... 1
15 ........ ZX-OP-15 ...................... Cross Point Screw Driver ..................................... .................................... 1
16 ........ ZX-OP-16 ...................... Adjustable Wrench ............................................... .................................... 1
17 ........ ZX-OP-17 ...................... Round Nut Wrench............................................... .................................... 1
18 ........ ZX-OP-18 ...................... Shear Pin ............................................................. .................................... 2
21 ........ ZX-OP-21 ...................... Indicate Bulb
(serial # 160401ZX3031 and lower) 110V or 24V ............... 1
............ ZX-HL ............................ Indicate Bulb (serial #160410ZX3032 and higher) XB7-EVF3LC............. 1
22 ........ ZX-OP-22 ...................... Taper Piece .......................................................... .................................... 1
23 ........ ZX-OP-23 ...................... Gear ............................................................. 3.5m36T（14”/16” /22”） ... 1
............ ZX-OP-23 ...................... Gear ..................................................................... 4m36T（18”） ............ 1
24 ........ ZX-OP-24 ...................... Leveling Pads....................................................... .................................... 6
25 ........ ZX-250-401 ................... Tool Holder
(serial # 160410ZX3032 and higher) .................................... 1
26 ........ ZX-250-404 ................... Tool Holder (serial # 160410ZX3032 and higher) .................................... 1
27 ........ ZX-250-407 ................... Tool Holder (serial # 160410ZX3032 and higher) .................................... 1
28 ........ ZX-250-410 ................... Tool Holder (serial # 160410ZX3032 and higher) .................................... 1
29 ........ GB5782-M12×40 ......... Hex Head Cap Screw .......................................... M12x40 ....................... 2
30 ........ GB97.2-12 ..................... Flat Washer .......................................................... 12 mm ......................... 2
31 ........ ZX-10705E .................... Sliding Sleeve Assembly (for 14” models only) .... 20-110 .................. 3pair
17 14 15 16 12 18 29 30 13 21 25 26 27 28
24 11 1B 7 6 5 10
23
22
8
9
31
3
