Jet GH-20 ZH Series User Manual

58

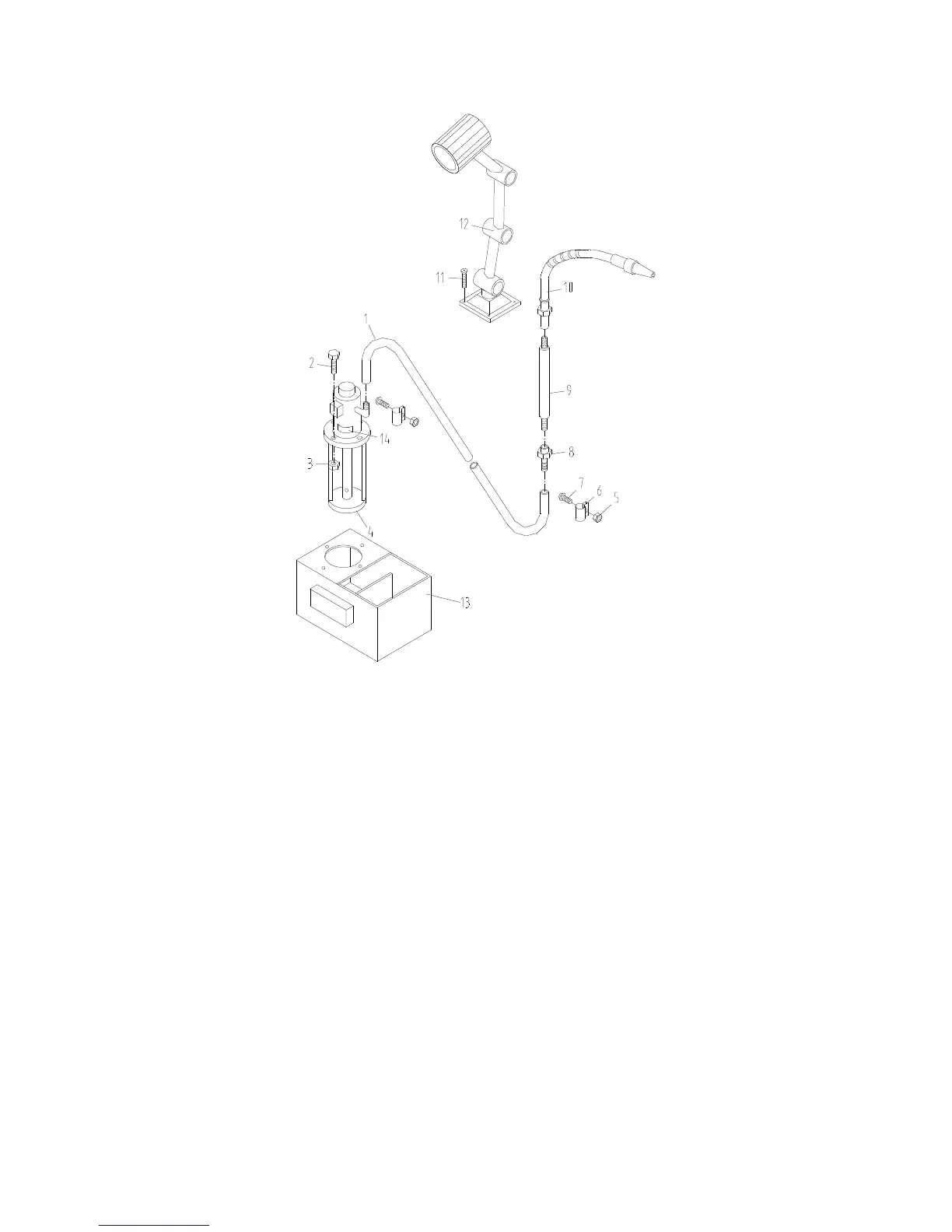

23.1 Coolant and Work Light Assembly – Exploded View
23.2 Coolant and Work Light Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... RT-001C .................. Rubber Tube (for 80” ZH only) ............................. ID 1/2" x 2280 ............. 1
................. RT-001C .................. Rubber Tube (for 120” ZH only) ........................... ID 1/2" x 3000 ............. 1
2 ............... TS-2205201 ............. Hex Cap Screw (for 80” ZH only) ......................... M6x16 ......................... 4
................. GB70-M6x16 ............ Hex Socket Cap Screw (for 120” ZH only) ........... M6x16 ......................... 4
3 ............... GB6172-M6 .............. Hex Nut ................................................................ M6 ............................... 4
4 .............. ZX-CW04 ................. Coolant Pump （serial #141020ZH0102and lower） ............................... 1
................. ZX-CW04A ............... Coolant Pump （serial #141220ZH0103 and higher） ............................ 1
5 ............... TS-1540041 ............. Hex Nut ................................................................ M6 ............................... 2
6 ............... ZX-01727 ................. Clip for Rubber Tube ............................................ .................................... 1
7 ............... TS-2286202 ............. Phillips Pan Head Machine Screw ....................... M6x20 ......................... 2
8 ............... C6140W01731 ......... Fitting ................................................................... .................................... 1
9 ............... C6140W01730 ......... Flow Pipe ............................................................. .................................... 1
10 ............. ZH-CT ...................... Coolant Tube........................................................ 1/2"x16x700 ................ 1
11 ............. TS-1503051 ............. Hex Socket Head Cap Screw .............................. M6x20 ......................... 4
12 ............ JC52 ......................... Work Lamp (serial #160315ZH0144 and lower) .. 24V, 50W .................... 1
................. JC52B ...................... Work Lamp (serial #160415ZH0145 and higher). 24V, 50W .................... 1
13 ............. ZX01510 .................. Coolant Tank (for 80” ZH only) ............................ .................................... 1
14………GH1640ZX18502-2 ..... Label (serial #160315ZH0144 and lower) ............ .................................... 1
………....GH1640ZX18502-4 ..... Label (serial #160415ZH0145 and higher) .......... .................................... 1
