Jet JDP-20EVS-110 - Spindle Components (All Models) - Exploded View; Spindle Components (All Models) - Parts List

22

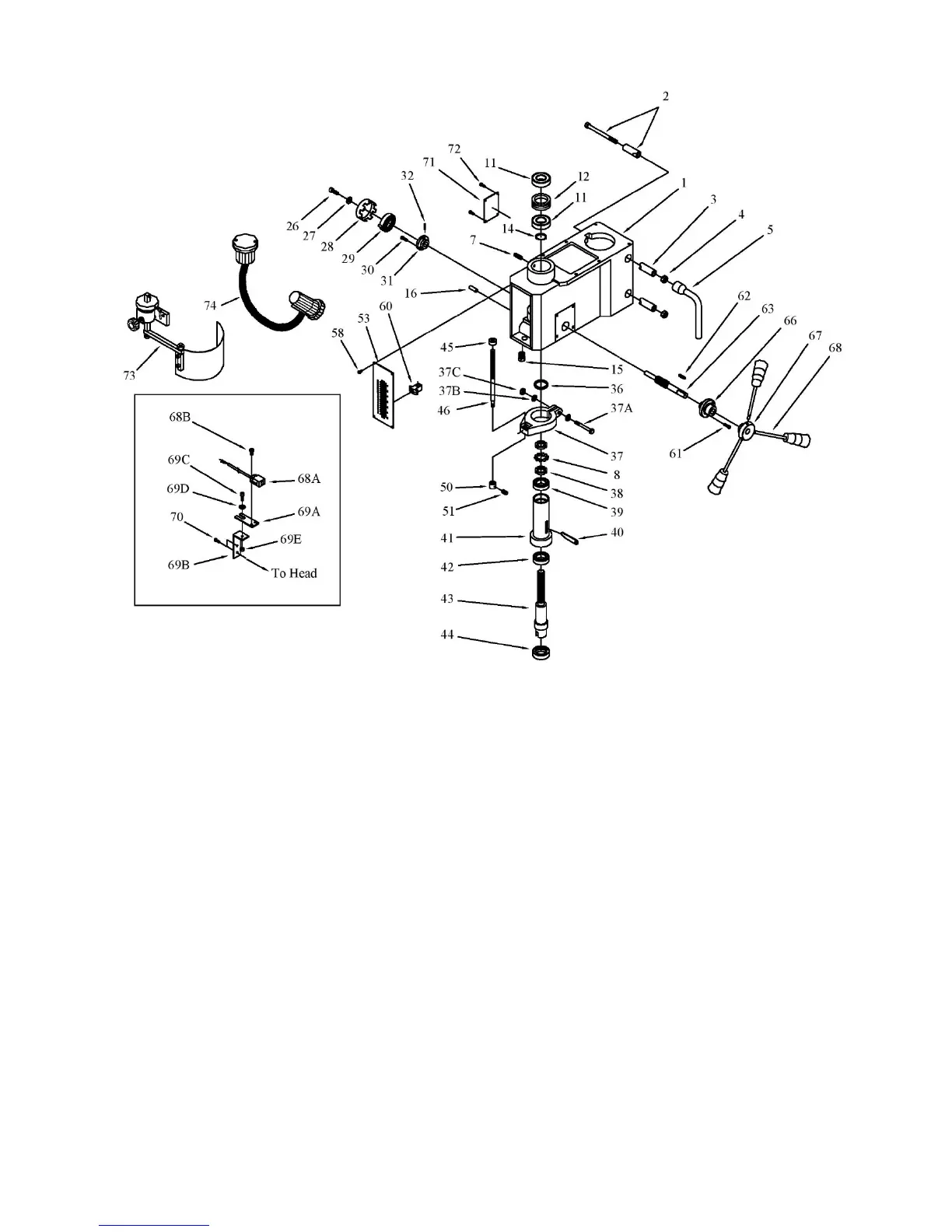

12.3.1 Spindle Components (all models) – Exploded View
12.3.2 Spindle Components (all models) – Parts List
Index No. Part No. Description Size Qty
1 ................. J-5517332ACG ........... Head Casting ............................................................... ........................................ 1
2 ................. 5517376 ...................... Hex Shoulder Bolt ........................................................ ........................................ 2
3 ................. 5517378 ...................... Cam Lock Rod ............................................................. ........................................ 2
4 ................. 5510250 ...................... Hex Nut ........................................................................ ........................................ 2
5 ................. 5510251 ...................... Hex Head Wrench ........................................................ ........................................ 1
7 ................. 5510252 ...................... Set Screw..................................................................... ........................................ 1
8 ................. 5517379 ...................... External Tooth Washer ................................................ ........................................ 1
11 ............... 5510254 ...................... Ball Bearing .................................................................. ........................................ 2
12 ............... 5510255 ...................... Spacer ......................................................................... ........................................ 1
14 ............... 5510256 ...................... C-Ring .......................................................................... ........................................ 1
15 ............... 5510258 ...................... Set Screw..................................................................... ........................................ 1
16 ............... 5510259 ...................... Roll Pin......................................................................... ........................................ 1
26 ............... 5510261 ...................... Socket Head Screw ..................................................... ........................................ 1
27 ............... 5510262 ...................... Washer......................................................................... ........................................ 1
28 ............... 5510263 ...................... Container (includes #29) ............................................. ........................................ 1
29 ............... 5510263 ...................... Return Spring ............................................................... ........................................ 1
30 ............... 5510265 ...................... Socket Head Screw ..................................................... 3/16x1/2 .......................... 3
31 ............... 5510266 ...................... Spring Seat .................................................................. ........................................ 1
32 ............... 5510267 ...................... Spring Pin .................................................................... ........................................ 1
36 ............... 5513770 ...................... Rubber Washer ............................................................ ........................................ 1
37 ............... J-5513771G ................ Quill Band .................................................................... ........................................ 1
