13.0 Electrical connections
These diagrams are also affixed inside electrical cabinet door. In case of discrepancy, diagram inside electrical
cabinet takes precedence.

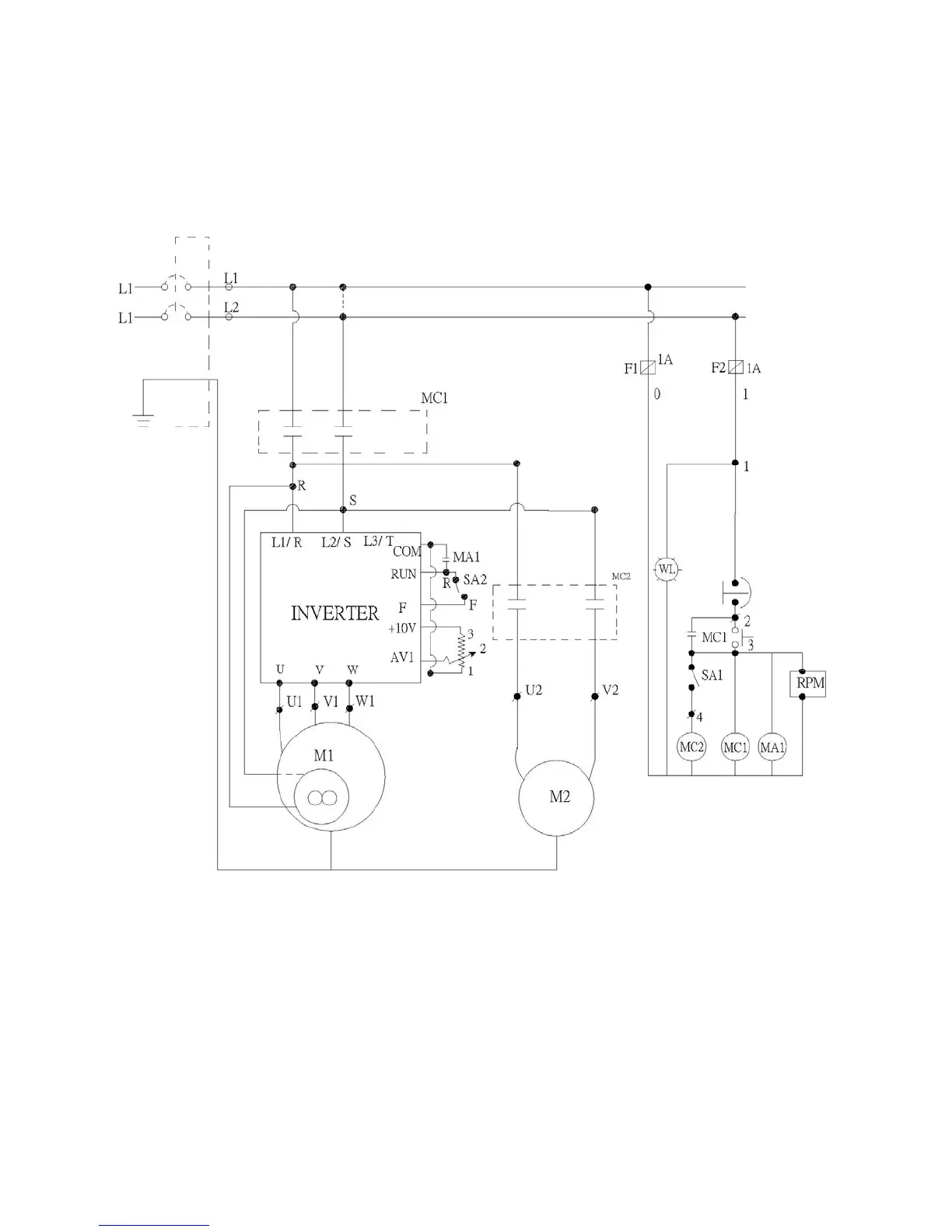

13.1 JDP-20EVS-110 wiring diagram
