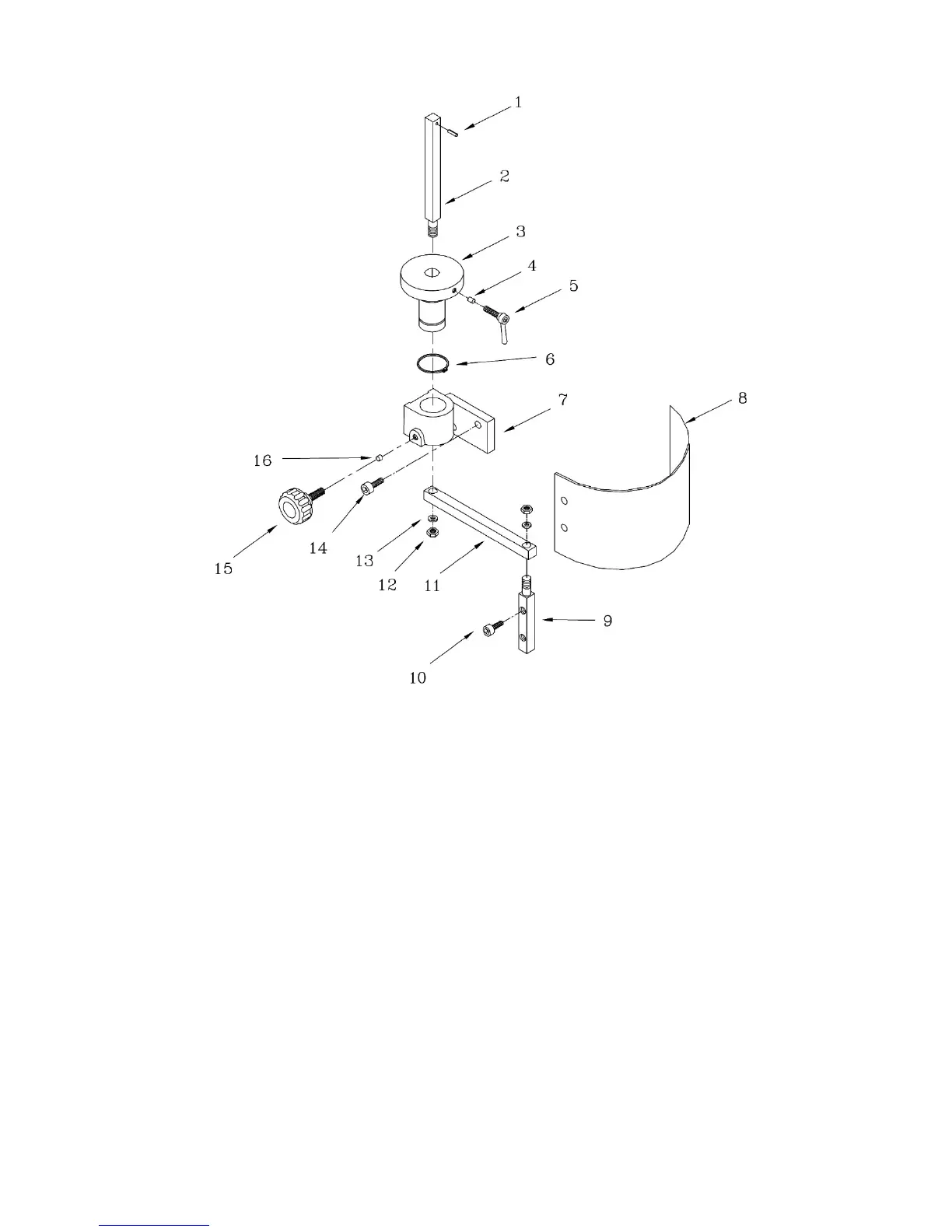

12.4.1 Safety Shield Assembly (all models) – Exploded View
12.4.2 Safety Shield Assembly (all models) – Parts List
Index No. Part No. Description Size Qty
................... 32106A ........................ Safety Shield Assembly (includes #1 thru 16) .............. ........................................ 1
1 ................. 6293347 ...................... Spring Pin .................................................................... 3x16 ................................ 1
2 ................. 32106A-2 .................... Support Bracket Bar ..................................................... ........................................ 1
3 ................. 32106A-3 .................... Bushing ........................................................................ ........................................ 1
4 ................. 32106A-4 .................... Spacer ......................................................................... ........................................ 1
5 ................. 32106A-5 .................... Lock Handle ................................................................. M6x20 ............................. 1
6 ................. 32106A-6 .................... C-Clip ........................................................................... S30 .................................. 1
7 ................. 32106A-7 .................... Bracket ......................................................................... ........................................ 1
8 ................. 32106A-8 .................... Safety Shield ................................................................ 530x210mm .................... 1
9 ................. 32106A-9 .................... Lower Bracket Bar ....................................................... ........................................ 1
10 ............... TS-1504021 ................ Hex Socket Head Cap Screw ....................................... M8x12 ............................. 1
11 ............... 32106A-11 .................. Support Arm ................................................................. ........................................ 1
12 ............... TS-0640091 ................ Hex Nut ........................................................................ 3/8” .................................. 1
13 ............... TS-0720091 ................ Spring Washer ............................................................. 3/8” .................................. 1
14 ............... TS-1504041 ................ Hex Socket Head Cap Screw ....................................... M8x20 ............................. 1
15 ............... 32106A-16 .................. Lock Bolt with Knob ..................................................... M8 ................................... 1
16 ............... 32106A-17 .................. Spacer ......................................................................... ........................................ 1
