7
Dimensions:
Assembled machine dimensions (LxWxH)……………38-3/16 x 27-5/32 x 79-1/2 in. (970 x 690 x 2020mm) ............
Shipping crate dimensions (LxWxH) .......................................... 37 x 25.5 x75 in. (939 x 648 x1905mm) ..................
Weights:
Net weight ........................................................... 723 lb(328 kg). ................. 723 lb(328 kg)................. 723 lb(328 kg)
Shipping weight .................................................. 781 lb (355 kg) ................. 781 lb (355 kg) .............. 781 lb (355 kg)
1
Subject to local and national electrical codes.
2
The specified values are emission levels and are not necessarily to be seen as safe operating levels. As workplace
conditions vary, this information is intended to allow the user to make a better estimation of the hazards and risks
involved only.
L = length, W = width, H = height
n/a = not applicable
The above specifications were current at the time this manual was published, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.

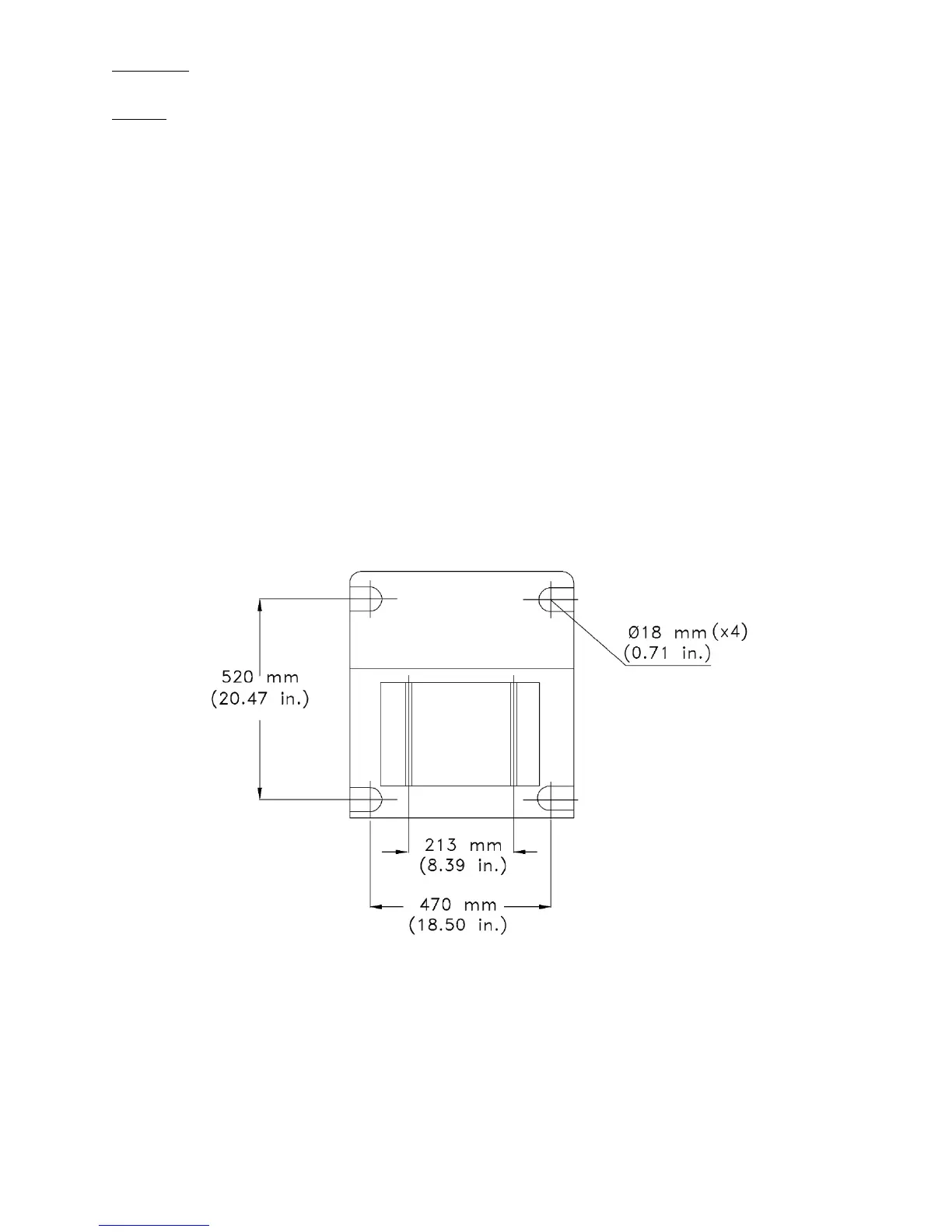

4.1 Mounting hole centers (all models)
Figure 4-1: machine base mounting
