Jet JPT-8B-M User Manual

8

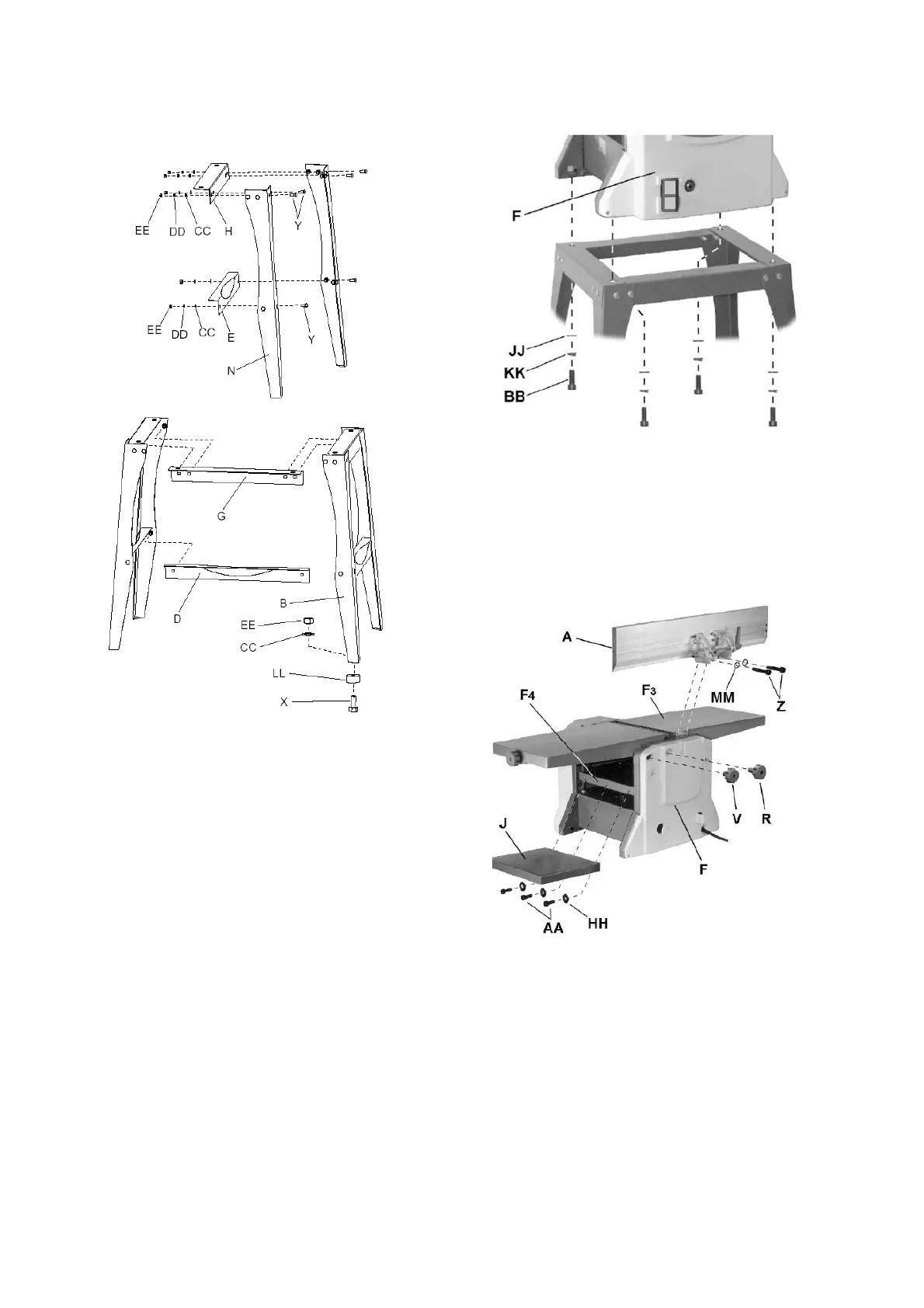

Stand assembly
(Optional accessory for JPT-8B-M…707402)
Fig 3
Attach legs (N), top supports (H) and lower supports (E) with
carriage bolts (Y), flat washers (CC), lock washers (DD) and
hex nuts (EE).
Hand-tighten only at this time.
Attach the rubber feet (LL) to the legs, using hex cap screws
(X), flat washers (CC) and hex nuts (EE).
Place stand upright on a level surface and tighten allo hex
nuts.
Mounting jointer-planer to stand
Fig 4
Place the Jointer-Planer (F) onto the assembled stand and
attach with 4 socket head cap screws (BB), lock washers
(KK), and flat washers (JJ).
Tighten screws with 5mm hex wrench.
Jointer-planer assembly
Fig 5
Fence
Attach jointer fence (A) to back of jointer outfeed table (F3)
with two socket head cap screws (Z) and lock washers
(MM). Tighten screws with 5mm hex wrench.
Lock knobs
The Jointer-Planer comes equipped with two lock knobs to
secure the position of the jointer infeed table.
Install jointer infeed table lock knobs (V, R).
