24

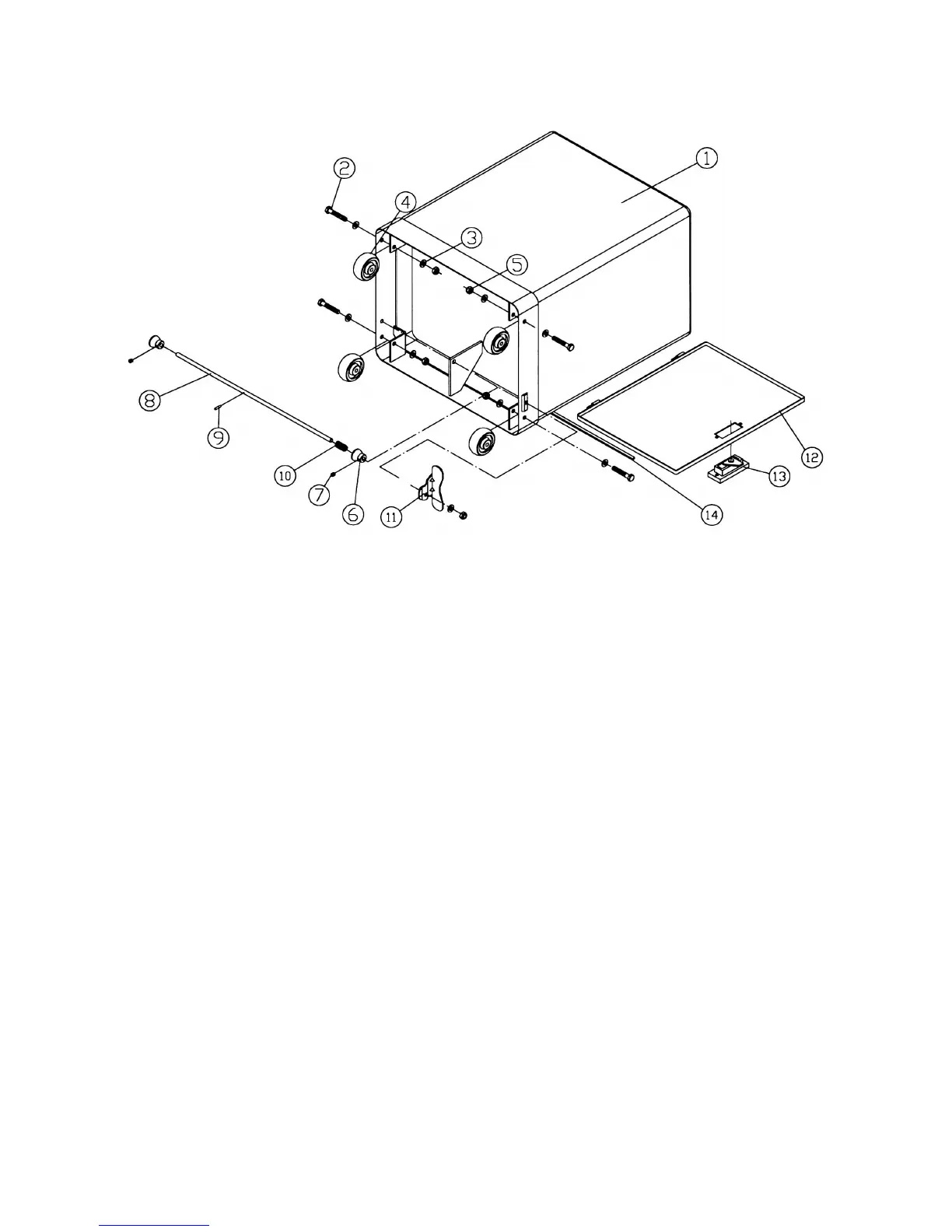

Closed Stand Assembly (Optional)
Index No. Part No. Description Size Qty
................ 708598....................Closed Stand Assembly Complete ....................................................... 1
1 .............. AB612062 ...............Closed Stand...................................................................................... 1
2 .............. TS-0060111 ............Hex Cap Screw ..........................................3/8” x 2-1/2”...................... 4
3 .............. TS-1550071 ............Flat Washer................................................M10 x 20 .......................... 9
4 .............. 150105....................Wheel ................................................................................................ 4
5 .............. TS-0640091 ............Nyloc Lock Nut ...........................................3/8” .................................. 5
6 .............. 150103....................Stop ................................................................................................... 2
7 .............. TS-1523031 ............Set Screw ..................................................M6 x 10 ............................ 2
8 .............. 612063....................Stop Shaft .......................................................................................... 1
9 .............. PS042400 ...............Spring Pin ..................................................4 x 24 mm ........................ 1
10 ............ 150106....................Spring ................................................................................................ 1
11 ............ 150104....................Step Plate .......................................................................................... 1
12 ............ 145002....................Door .................................................................................................. 1
13 ............ 150503....................Lock................................................................................................... 1
14 ............ 150527....................Pad.................................................................................................... 2
Hardware used to attach the Sander to the Closed Stand
................ AH612J1 .................Hardware Bag (contains the items below)............................................. 1
................ TS-229801 ..............Hex Cap Screw (not shown) ........................M10 x 1.5 x 80 .................. 4
................ TS-1550071 ............Flat Washer (not shown) .............................M10 ................................. 8
................ TS-1551071 ............Lock Washer (not shown) ............................M10 ................................. 4
................ TS-1540077 ............Hex Nut (not shown) ...................................M10 x 1.5 ......................... 4
