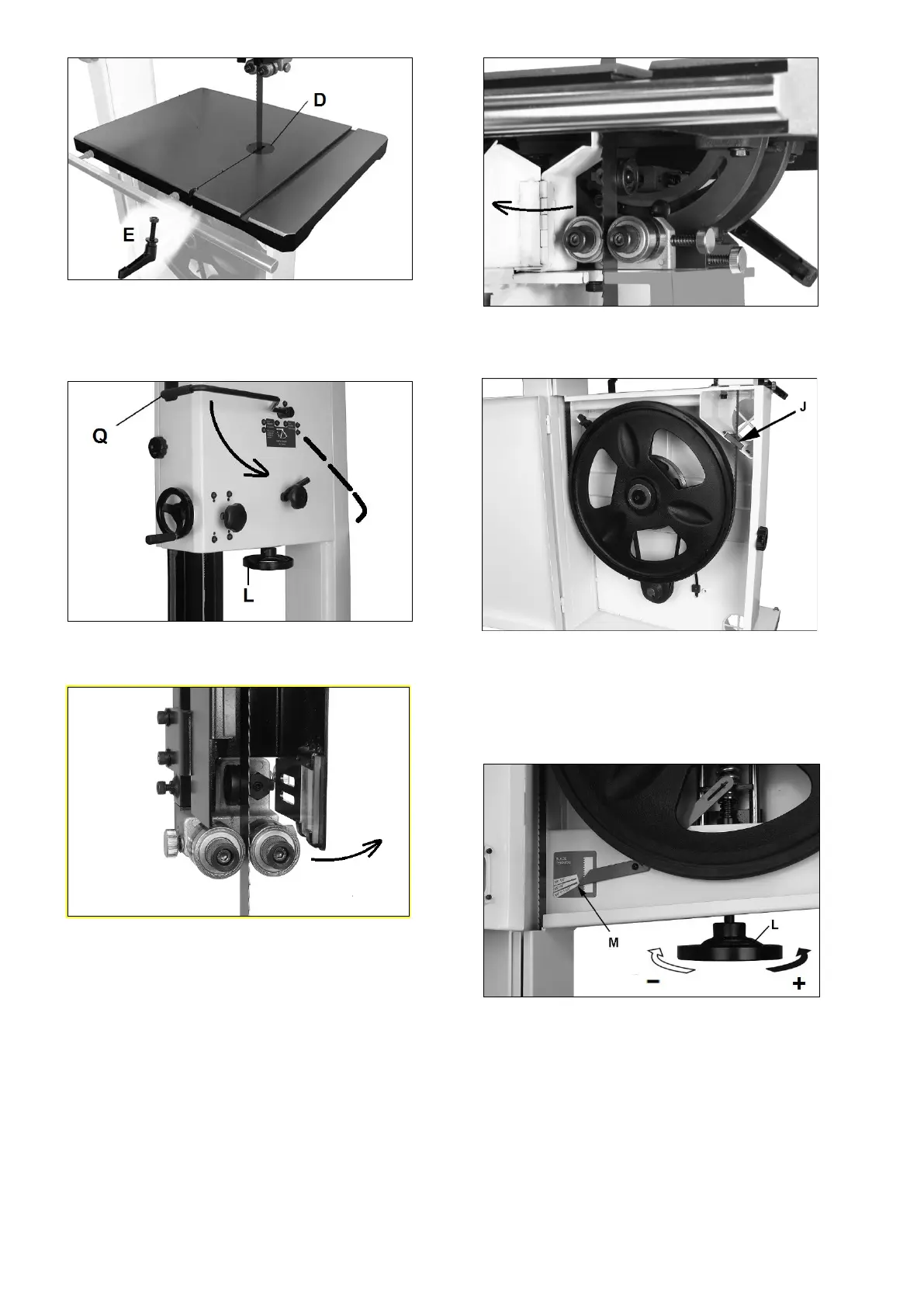

Fig 29
Release the blade tension by operating the quick blade
tension lever (Q, Fig 30) and by turning the blade tension
hand wheel (L).
Fig 30
Open the blade guards (Fig 31, Fig 32)
Fig 31
Fig 32
Remove the dust block (J, Fig 33)
Fig 33
Install new saw blade.
After the new saw blade is installed, tighten the sawblade
sufficiently.
Follow the scale (M, Fig 34.1).
Fig 34.1
Install the dust block (J).
Close the blade guards.
Close the wheel covers.
ATTENTION:
-Check first if the saw blade is tensioned and runs freely and if
all safety devices are fitted before starting the machine.
-Spin the wheels by hand to check.
