4.4 Dust emission
The band saw has been dust emission inspected.
At an air velocity of 20 m/s on the dust port dia 100mm:
Vacuum pressure 1250 Pa
Volume flow 565 m³/h
The machine meets a workplace dust emission of 2 mg/m³.
4.5 Content of delivery
Band saw
Fence body – A
Fence profile – B
Table – C
Table insert – D
Guide rail – E
Lifting ring – F
Hand wheel with handle – G
Mitre gauge – H
Saw blade
Operating manual
Spare parts list
Hardware package containing:
2x Socket head screws – HP1
2x Flat washers – HP2
4x Hex cap screws – HP3
4x Lock washers – HP4
4x Flat washers – HP5
1x Table slot handle assembly – HP6

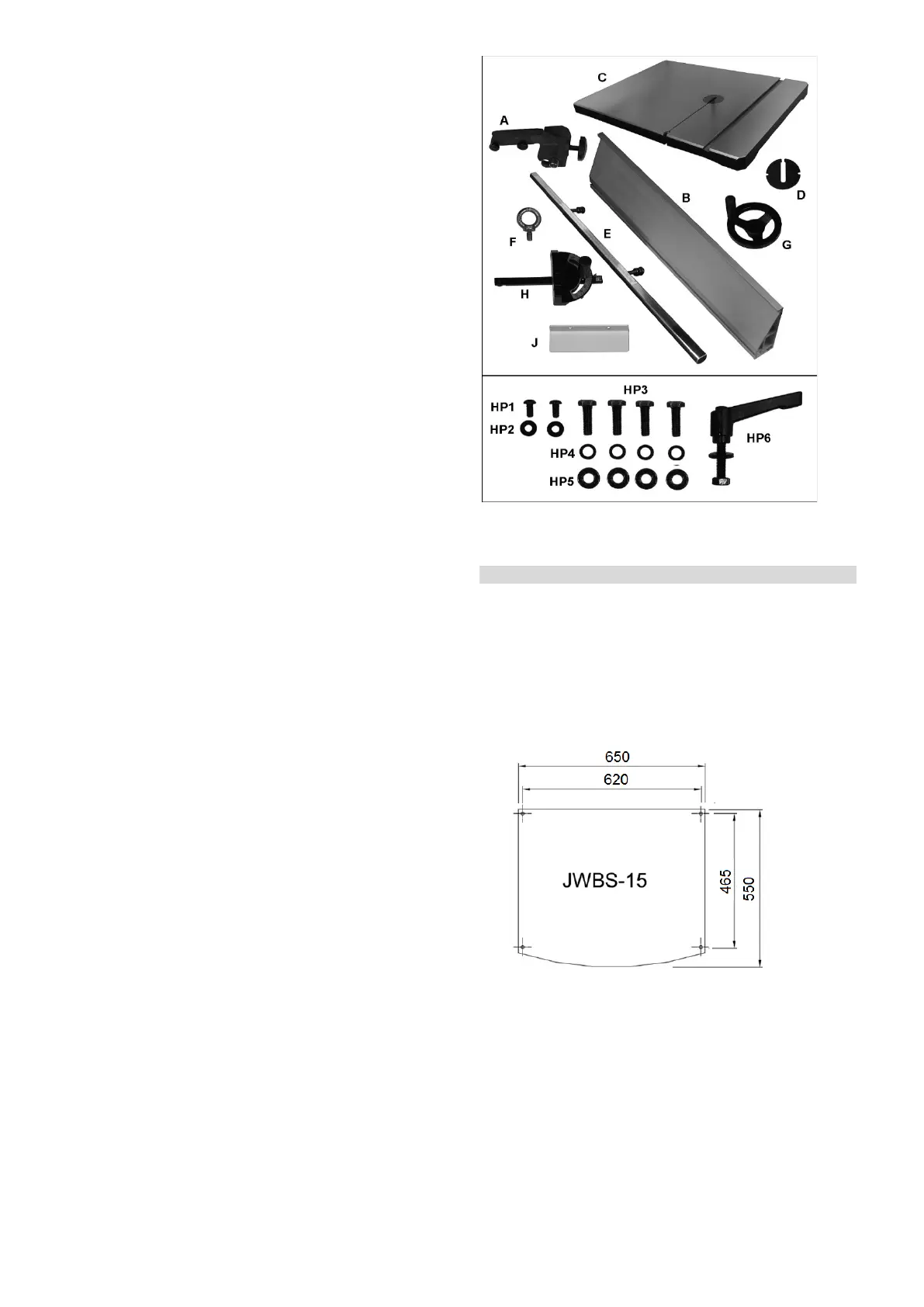

Fig 2
5. Transport and start up
5.1 Transport and installation
The machine will be delivered on an open crate.
For transport use a forklift or hand trolley. Make sure the
machine does not tip or fall off during transport.
The machine is designed to operate in closed rooms and must
be placed on firm and levelled ground.
The machine can be bolted down if required (Fig 3).
