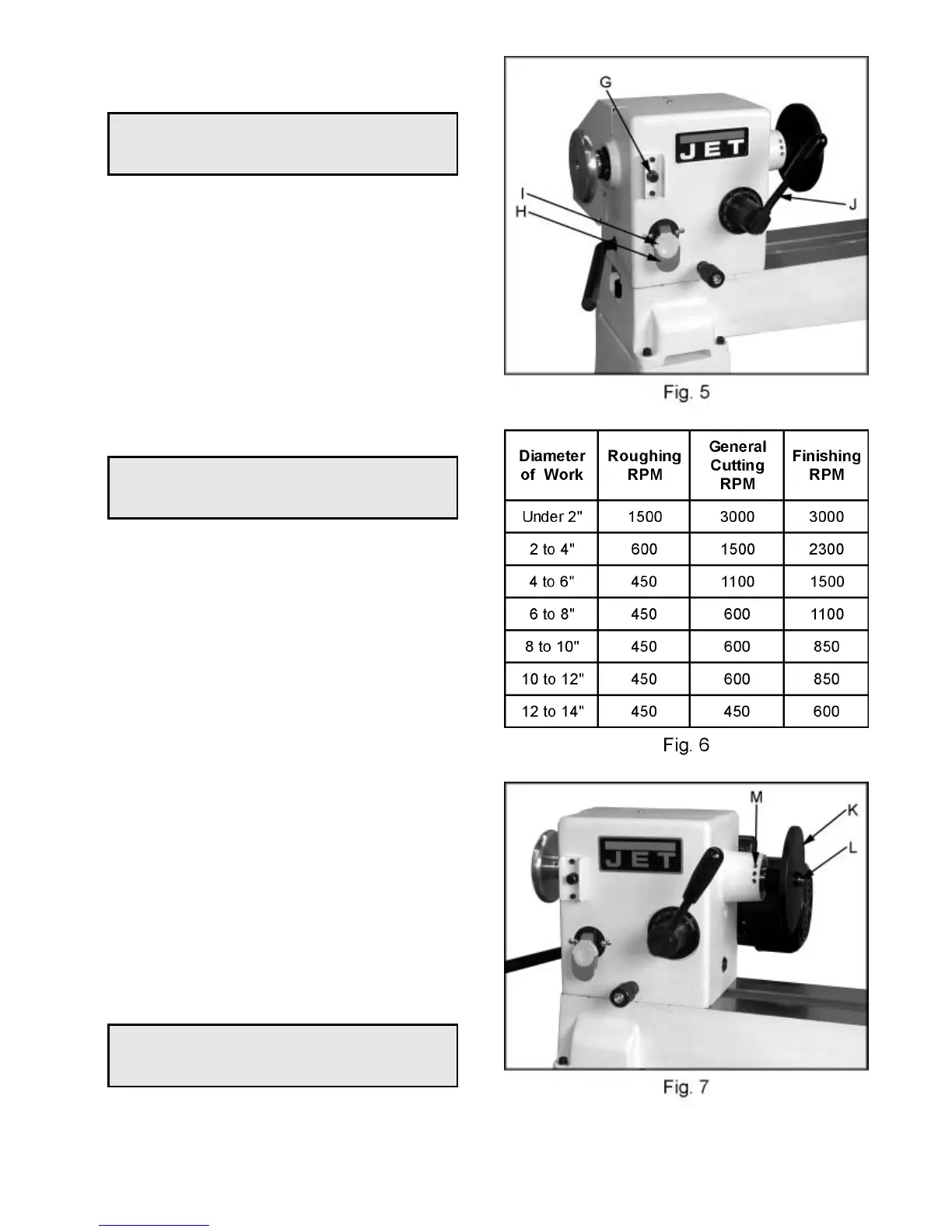

G. Headstock Spindle Lock: (G, Fig. 5)
Push in pin to keep the spindle from turning.
CAUTION!
Never press the headstock spindle lock while
the spindle is turning!
H. Headstock On/Off Switch: (H, Fig.5)
Flip the switch up to turn “ON” the lathe.
Flip the switch down to turn the lathe “OFF”.
I. Headstock On/Off Switch Key: Remove
key (I, Fig. 5) when in the “OFF” position.
The switch will not work until key is
reinstalled.
J. Headstock Speed Selector: (J, Fig. 5)
Place handle directly above the desired
RPM speed. Pull handle out and move to
the desired speed, see Figure 6.
CAUTION!
Only change speeds while the spindle is
turning!
K. Headstock Faceplate: (K, Fig. 7)
Used for turning bowls. There are a
number of screw holes for mounting the
workpiece. Thread the faceplate onto the
spindle in a clockwise direction, and tighten
two set screws. Remove the faceplate by
loosening two set screws. Push in
headstock spindle lock and use the provided
wrench on faceplate flats.
L. Headstock Spur Center: (L, Fig. 7)
Used for turning between centers. Spindle
taper is MT-2. Remove spur center by
inserting drift rod through the opposite end
of the spindle and knocking spur center out.
M. Headstock Indexing Hole: (M, Fig. 7)
Thread indexing pin into the indexing hole
making sure that it locates in the spindle
hole. There are 12 holes in the spindle 30°
apart. There are three holes in the
headstock casting that accept the indexing
pin. These holes are 20° apart. The
combination of holes will allow you to mark
your workpiece for evenly spaced features.
CAUTION!
Never start the lathe with the index pin
engaged in the spindle!
