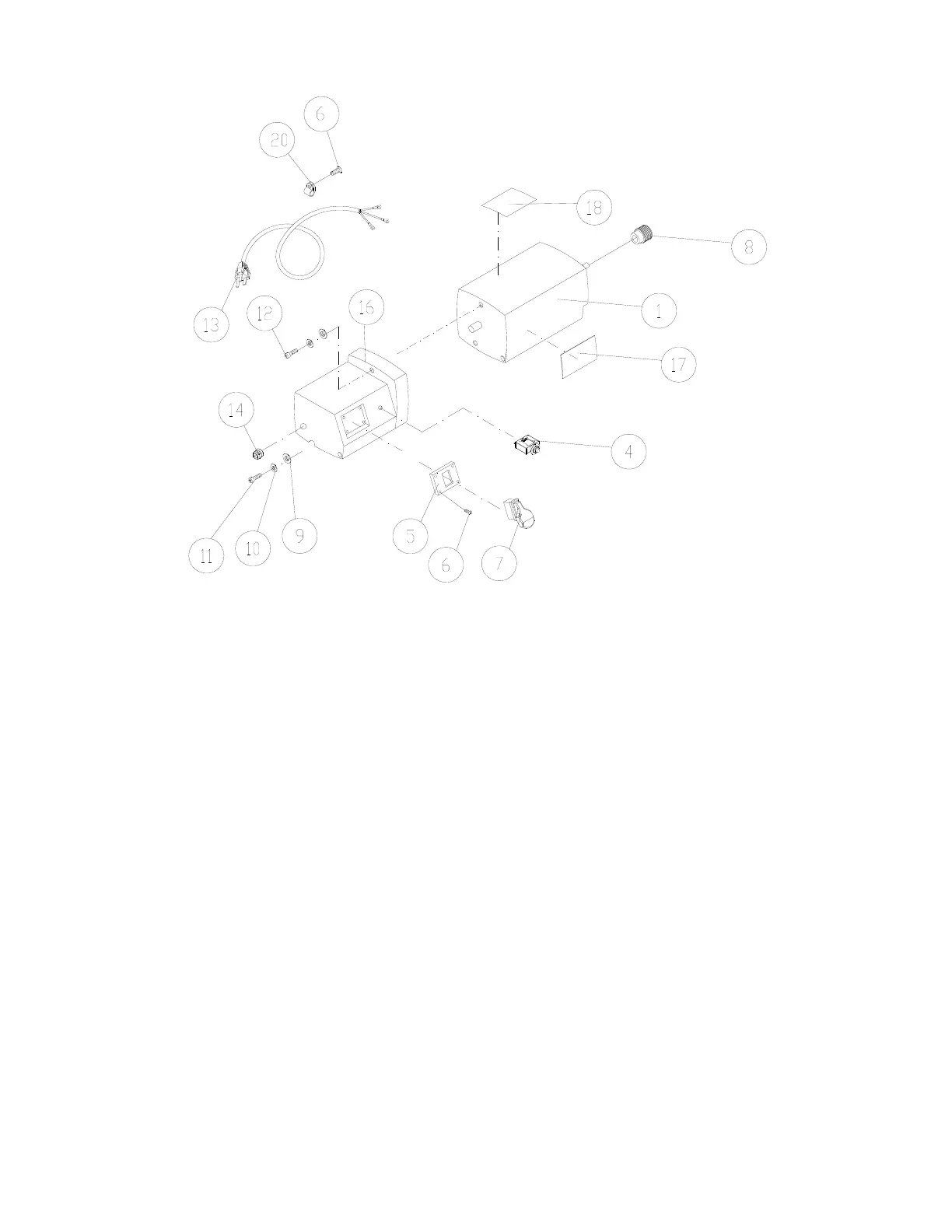

12.3.1 Motor Assembly – Exploded View
12.3.2 Motor Assembly – Parts List
Index No Part No Description Size Qty
.................. JWP13BT-269 ........... Motor Assembly (includes #1~18) ........................... ...................................... 1
1 ................ JWP13BT269-01 ....... Motor (includes #17,18) ........................................... ........................................
2 ................ JWP13BT269-02 ....... Motor Carbon Brush with Cap (not shown) ............. ...................................... 2
3 ................ JWP13BT269-03 ....... Motor Ground Wire (not shown) .............................. ...................................... 1
4 ................ JWP13BT269-04 ....... Overload Protector Assembly .................................. 20A ............................... 1
5 ................ JWP13BT269-05 ....... Switch Plate ............................................................. ...................................... 1
6 ................ JWP13BT269-06 ....... Machine Screw ........................................................ M5-0.8x12 ..................... 5
7 ................ JWL1442-118 ............ Switch ...................................................................... ...................................... 1
.................. JWL1442-118-1 ......... Safety Key ............................................................... ...................................... 1
8 ................ JWP13BT269-08 ....... Motor Pulley ............................................................. ...................................... 1
9 ................ JWP13BT269-09 ....... Flat Washer ............................................................. M5 ................................. 2
10 .............. JWP13BT269-10 ....... Lock Washer ............................................................ M5 ................................. 2
11 .............. TS-2245162 .............. Socket Round Head Screw ..................................... M5-0.8Px16 .................. 1
12 .............. JWP13BT269-12 ....... Machine Screw ........................................................ M5-0.8Px35 .................. 1
13 .............. JWP13BT269-13 ....... Power Cable ............................................................ ...................................... 1
14 .............. JWP13BT269-14 ....... Strain Relief ............................................................. 6P3-4 ............................ 1
15 .............. JWP13BT269-15 ....... Wire, Overload to Switch (not shown) ..................... ...................................... 1
16 .............. JWP13BT269-16 ....... Switch Cover, Includes Sponge ............................... ...................................... 1
17 .............. LM000367 ................. Warning Label ......................................................... ...................................... 1
18 .............. LM000368 ................. Motor Label, JWP-13BT .......................................... ...................................... 1
20 .............. JWP13BT269-20 ....... Cable Clamp ............................................................ ...................................... 1
