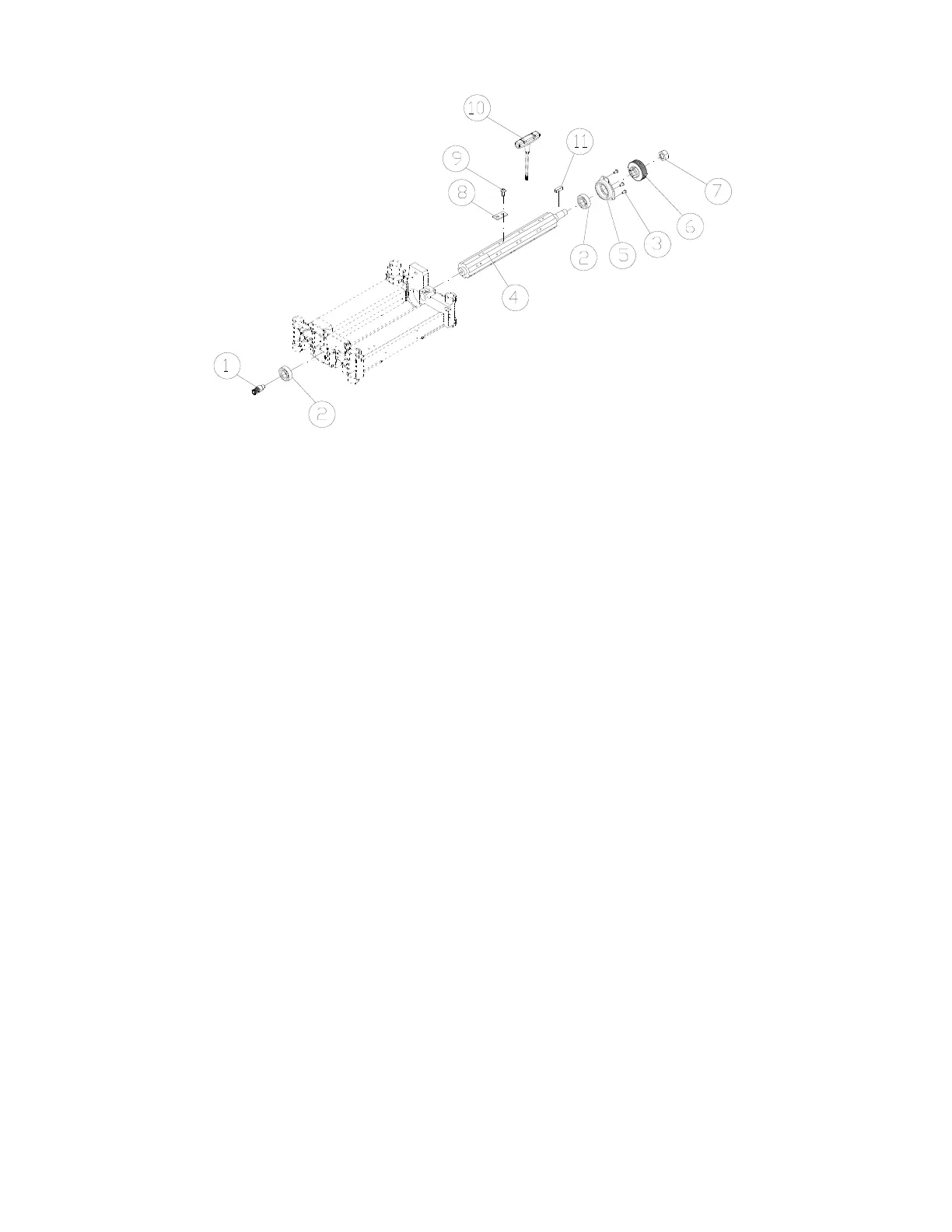

12.4.1 Cutterhead Assembly – Exploded View

12.4.2 Cutterhead Assembly – Parts List

Index No Part No Description Size Qty

.................. JWP13BT-CA ............ Cutterhead Assembly (includes #1-9,11) ................ ........................................

1 ................ JWP13BT244-01 ....... Shaft Gear ............................................................... 12t ................................. 1

2 ................ BB-6203ZZ ................ Ball Bearing ............................................................. 6203ZZ ......................... 2

3 ................ TS-2245102 .............. Socket Head Button Screw ...................................... M5-0.8x10 ..................... 3

4 ................ JWP13BT244-04 ....... Cutterhead ............................................................... ...................................... 1

5 ................ JWP13BT244-05 ....... Bearing Seat ............................................................ ..................................... 1

6 ................ JWP13BT244-06 ....... Spindle Pulley .......................................................... ..................................... 1

7 ................ JWP13BT244-07 ....... Nut (LH) ................................................................... M16-2.0P ...................... 1

8 ................ 722131 ...................... Knife Insert (set of 10) ............................................. ............................ 26 total

9 ................ JWP13BT244-09 ....... Knife Insert Screw.................................................... .................................... 52

10 .............. JWP13BT244-10 ....... Allen Wrench, T-Handle .......................................... 3mm .............................. 1

11 .............. KF2R5512 ................. Flat Key, Dbl Rd Hd ................................................. 5x5x12 mm ................... 1
