Table Ring Removal and Installation
Disconnect the machine from power source,
unplug!
The rings should easily lift out of the table
insert. The table insert has three setscrews that
can raise and lower the insert. The insert
should be slightly lower than the table. Keep
the rings and insert clean to prevent them from
sticking. If the rings are difficult to remove from
the insert:
1. Remove any collet or spindle assembly in
the spindle.
2. Lower the spindle assembly.
3. Place a scrap of piece of wood between the
ring to be removed and the spindle.
4. Raise the spindle until the ring lifts out.
5. Clean rings and insert thoroughly.
Operation
Spindle Control
To raise or lower spindle:
1. Loosen spindle lock handwheel found on
the left side of the cabinet.
2. Raise or lower spindle to desired height by
turning handwheel found on the front side
of the cabinet. There is an indicator scale
found by the handwheel, which will aid with
raising and lowering measurements.
3. Tighten spindle lock handwheel.
Using the Fence as a Guide
Shaping with the fence is the safest and most
satisfactory method of working. This method
should always be used when work permits.
Almostall-straightworkcanbeusedwiththe
fence.
1. For most work, where a portion of the edge
of the work is not touched by the cutter,
both the front and rear fences are in a

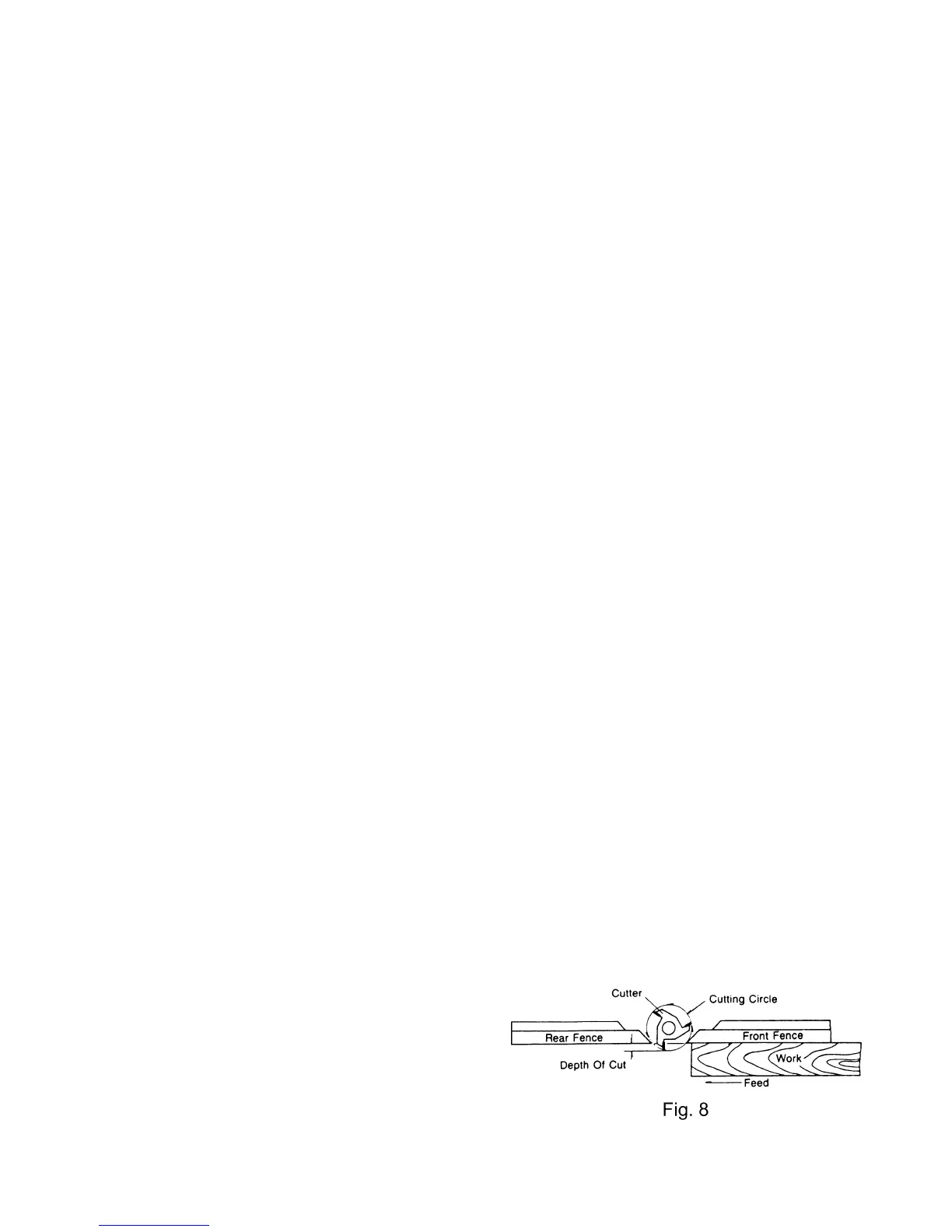

straight line, as shown in figure 8.
