Unpacking and Cleanup
1. Finish removing all contents from the
shipping container. Do not discard any
shipping material until the shaper is set up
and running.
2. Inspect contents for shipping damage and
report any damage to your distributor.
3. Clean all protected parts with kerosene. Do
not use gasoline, paint thinner, or any
cellulose-based solvent. These will damage
painted surfaces and melt plastic.

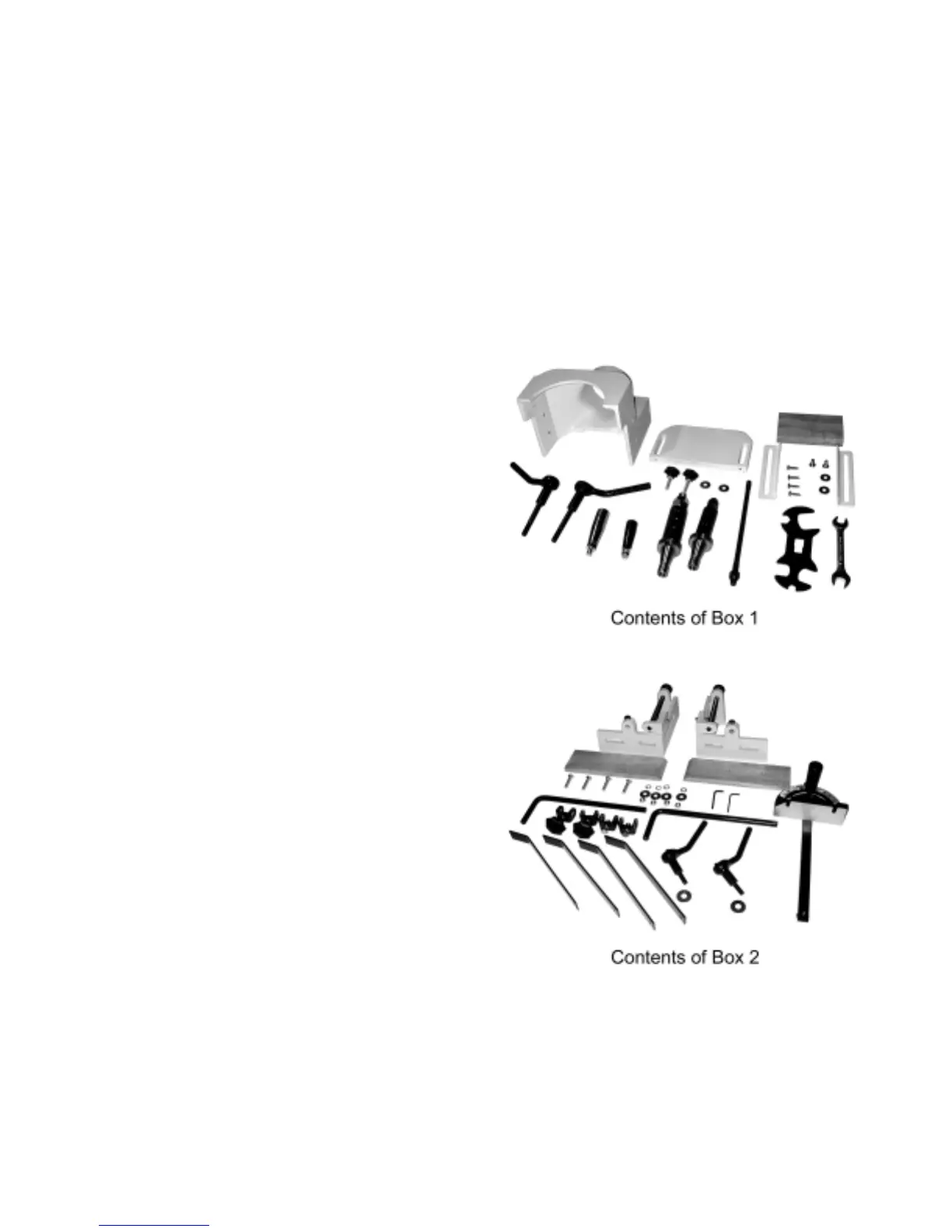

Contents of the Shipping Container
1. Shaper
Box 1
1. Dust Chute
2. Ratcheting Handles
2. Handwheel Handles
2. 1/2" & 3/4"Spindles
2. Knobs
2. Washers
1. Draw Bar & Nut
1. Spindle Guard Assembly
1. Arbor Wrench
1. Open End Wrench
Box 2
2. Fence Assemblies
1. Miter Gauge Assembly
2. Angle Hex Wrenches
2. Hold-down Assemblies
1. Starting Pin (not shown)
Box 3
1. Extension Wing (not shown)
Box 4
1. Rear Door (not shown)
2. Pins (not shown)
